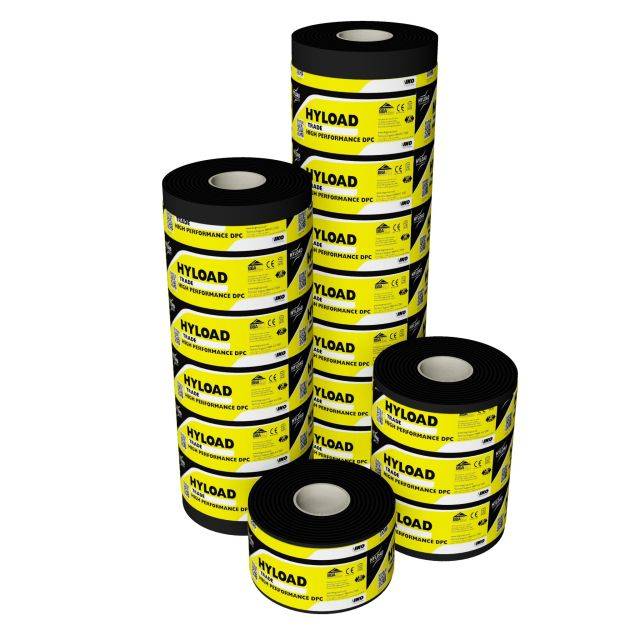

Hyload Trade DPC
BBA Agrément Certificate
Certificate type
Flexible polymeric sheet damp-proof course (DPC) for use within masonry walls to prevent passage of moisture from the ground and at all levels as cavity tray to prevent the downward movement of water.
Application
- For use as a horizontal, vertical or stepped damp proof coursing system.
- Suitable for the on-site creation of cavity trays within masonry cavity wall construction (must be supported by the lintel).
Description
Flexible polymeric sheet damp-proof course (DPC) for use within masonry walls to prevent passage of moisture from the ground and at all levels as cavity tray to prevent the downward movement of water.
Features and benefits:
- Available in a range of widths.
- Does not extrude under compressive load, under normal working conditions.
- Robust – resistant to impact damage, under normal working conditions.
- Durable – will remain effective for the design life of the building, under normal working conditions.
- Compatible with all other products in the IKO Hyload range.
- CE Marked.
- BBA approved.
Applications:
- For use as a horizontal, vertical or stepped damp proof coursing system.
- Suitable for the on-site creation of cavity trays within masonry cavity wall construction (must be supported by the lintel).
General information
Uniclass | |
CAWS | F30/320 Damp proof courses – plastics F30/345 Site formed flexible sheet cavity trays – plastics F30/46 Damp-proof course – plastics F30/52 Site formed flexible sheet cavity trays |
Product range |
Specification data - Polypropylene (PP) damp-proof courses and cavity trays
Product Reference | Hyload Trade DPC |
Roll width | Insert requirements; available in widths 100–1000 mm. |
Pre-formed cloak units | Not requiredType 2, change of level (right-hand unit)Type 3, stop end brick/ block, surface fixed (right-hand unit)Type 5, internal corner, surface fixedType 6, external corner, surface fixedType 7, internal/ external corner brick/ blockType 8, internal cornerType 9, external cornerType 10, column stop end brick/ block, surface fixed (right-hand unit) |
Accessories | Not requiredHyload DPC fixing pins for insulationHyload DPC fixing pins for masonryHyload DPC fixing stripHyload DPC joint support boardHyload DPC jointing tapeHyload DPC lap adhesiveHyload DPC mastic |
Standard product features | Technical characteristics:
|
Product Options | Roll width: Non-standard widths are available to order in 25 mm increments. Accessories: - Hyload DPC fixing pins for insulation: Corrosion-resistant rigid plastic strip, used specifically to provide surface fixing solutions in cavity tray formation. 29 mm wide x 2 mm thick x 2 m long. - Hyload DPC fixing pins for masonry: Corrosion-resistant pins for surface fixing IKO Hyload high performance DPC systems to any solid internal substrate such as brick, stone and concrete. - Hyload DPC fixing strip: Corrosion-resistant and can be used for surface fixing to the rigid insulation of composite inner skins. - Hyload DPC joint support board: Twin-walled polypropylene reinforced support board which can be bent to form the required profile. - Hyload DPC jointing tape: Black, double-sided bituminous tape in 100 mm x 10 m rolls, used for bonding overlaps in DPC material and DPC to IKO Hyload pre-formed cloak units. - Hyload DPC lap adhesive: Brush applied synthetic rubber resin mixture for bonding laps in DPC or DPC to IKO Hyload pre-formed cloak units. - Hyload DPC mastic: Thick synthetic rubber mastic adhesive with gap filling properties up to 6 mm. |
