BBA Agrément Certificate
High performance bitumen polymer damp-proof course (DPC).
High performance bitumen polymer damp-proof course (DPC), available in a range of widths.
Features and benefits:
F30/310 Damp proof courses – bitumen based
F30/340 Site formed flexible sheet cavity trays – bitumen based
F30/44 Damp proof course – bitumen based
F30/52 Site formed flexible sheet cavity trays

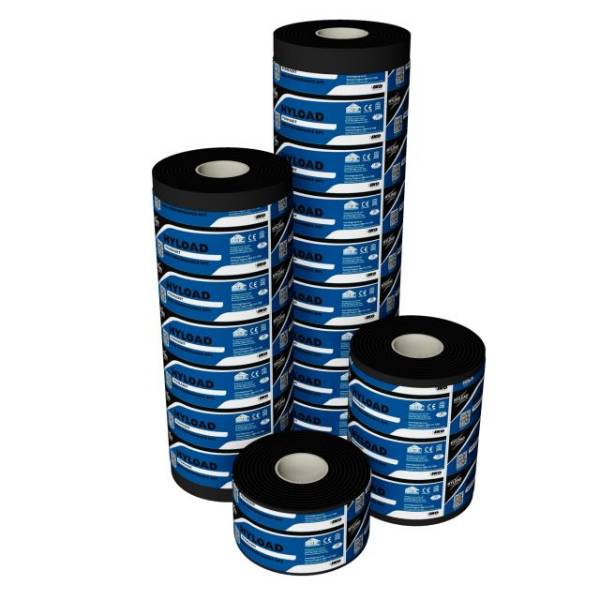

Hyload Permabit DPC
Insert requirements; available in widths 100–1000 mm.
Pre-formed cloak units
Type 2, change of level (right-hand unit)
Type 3, stop end brick/ block, surface fixed (right-hand unit)
Type 5, internal corner, surface fixed
Type 6, external corner, surface fixed
Type 7, internal/ external corner brick/ block
Type 8, internal corner
Type 9, external corner
Type 10, column stop end brick/ block, surface fixed (right-hand unit)
Hyload DPC fixing pins for insulation
Hyload DPC fixing pins for masonry
Hyload DPC fixing strip
Hyload DPC jointing tape
Hyload DPC joint support board
Hyload DPC mastic
Standard product features
Non-standard widths are available to order in 25 mm increments.
- Hyload Copeclose:
Tough flexible cavity closure unit consisting of a semi rigid support board bonded to a section of polyethylene foam insulation, which locates the unit into the cavity.
- Hyload DPC fixing pins for insulation:
Corrosion-resistant rigid plastic strip, used specifically to provide surface fixing solutions in cavity tray formation. 29 mm wide x 2 mm thick x 2 m long.
- Hyload DPC fixing pins for masonry:
Corrosion-resistant pins for surface fixing IKO Hyload high performance DPC systems to any solid internal substrate such as brick, stone and concrete.
- Hyload DPC fixing strip:
Corrosion-resistant and can be used for surface fixing to the rigid insulation of composite inner skins.
- Hyload DPC jointing tape:
Black, double-sided bituminous tape in 100 mm x 10 m rolls, used for bonding overlaps in DPC material and DPC to IKO Hyload pre-formed cloak units.
- Hyload DPC joint support board:
Twin-walled polypropylene reinforced support board which can be bent to form the required profile.
- Hyload DPC mastic:
Thick synthetic rubber mastic adhesive with gap filling properties up to 6 mm.
