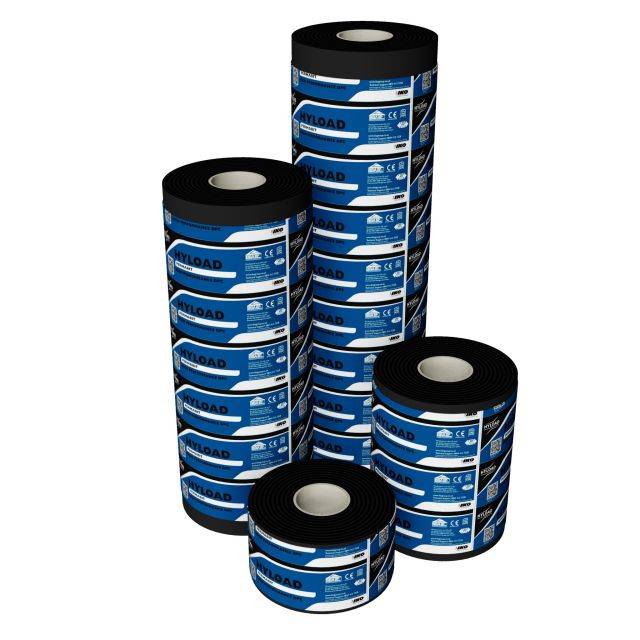

Hyload Permabit DPC

Hyload Permabit DPC

IKO PLC Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

High performance bitumen polymer damp-proof course (DPC).

Jump to:
+44 (0)1257 255 771 www.ikogroup.co.uk

Description

High performance bitumen polymer damp-proof course (DPC), available in a range of widths.

Features and benefits:

  • A high bond strength, flexible bitumen polymer DPC, designed to provide high adhesion to mortar.
  • It is a mixture of bitumen, synthetic polymers, synthetic fibres and other additives.
  • Does not extrude under compressive load, under normal working conditions.
  • Robust – resistant to impact damage, under normal working conditions.
  • Durable – will remain effective for the design life of the building, under normal working conditions.
  • The DPC has flexibility and exceptional toughness which can be particularly useful at jambs.
  • Provides horizontal, vertical or stepped DPCs including cavity trays in either solid or cavity walls of brick, block, stone or concrete.
  • The product is supported by a complete range of accessories, is compatible with other Hyload waterproofing products as well as most commonly used construction materials.

General information

Uniclass 2015

Pr_25_57_21_08 Bitumen polymer damp-proof courses and cavity traysPrimary

CAWS

F30/310 Damp proof courses – bitumen based

F30/340 Site formed flexible sheet cavity trays – bitumen based

F30/44 Damp proof course – bitumen based

F30/52 Site formed flexible sheet cavity trays

Specification data - Bitumen polymer damp-proof courses and cavity trays

Product Reference

Hyload Permabit DPC

Roll width

Insert requirements; available in widths 100–1000 mm.

Pre-formed cloak units

Not required

Type 2, change of level (right-hand unit)

Type 3, stop end brick/ block, surface fixed (right-hand unit)

Type 5, internal corner, surface fixed

Type 6, external corner, surface fixed

Type 7, internal/ external corner brick/ block

Type 8, internal corner

Type 9, external corner

Type 10, column stop end brick/ block, surface fixed (right-hand unit)

Accessories

Not required

Hyload Copeclose

Hyload DPC fixing pins for insulation

Hyload DPC fixing pins for masonry

Hyload DPC fixing strip

Hyload DPC jointing tape

Hyload DPC joint support board

Hyload DPC mastic

Standard product features

Technical characteristics:

  • Colour: Black.
  • Nominal weight: 1.6 kg/m².
  • Nominal thickness: 1.25 mm.
  • Roll length: 20 m.
  • Water tightness (to EN 1928):
  • 2 kPa for 24 hours.
  • Maximum tensile force (to EN 12311-1): ≥3 MPa.
  • Elongation (to EN12311-1): ≥110%.
  • Resistance to static loading (to EN 12730 (B)): Concrete: 20 kg; expanded polystyrene (EPS): 5 kg.
  • Resistance to impact (to EN 12691): Aluminium: 500 mm; EPS: 150 mm.
  • Resistance to tearing (to EN 12310-1): Long ≥8.63 N/mm.
  • Flexibility at low temperature (to EN 1109): ≥-15°C.
  • Durability – ageing (to EN 1296): Pass.
  • Durability – alkali (Annex C): Pass.

Product Options

Roll width:

Non-standard widths are available to order in 25 mm increments.

Accessories:

- Hyload Copeclose:

Tough flexible cavity closure unit consisting of a semi rigid support board bonded to a section of polyethylene foam insulation, which locates the unit into the cavity.

- Hyload DPC fixing pins for insulation:

Corrosion-resistant rigid plastic strip, used specifically to provide surface fixing solutions in cavity tray formation. 29 mm wide x 2 mm thick x 2 m long.

- Hyload DPC fixing pins for masonry:

Corrosion-resistant pins for surface fixing IKO Hyload high performance DPC systems to any solid internal substrate such as brick, stone and concrete.

- Hyload DPC fixing strip:

Corrosion-resistant and can be used for surface fixing to the rigid insulation of composite inner skins.

- Hyload DPC jointing tape:

Black, double-sided bituminous tape in 100 mm x 10 m rolls, used for bonding overlaps in DPC material and DPC to IKO Hyload pre-formed cloak units.

- Hyload DPC joint support board:

Twin-walled polypropylene reinforced support board which can be bent to form the required profile.

- Hyload DPC mastic:

Thick synthetic rubber mastic adhesive with gap filling properties up to 6 mm.
