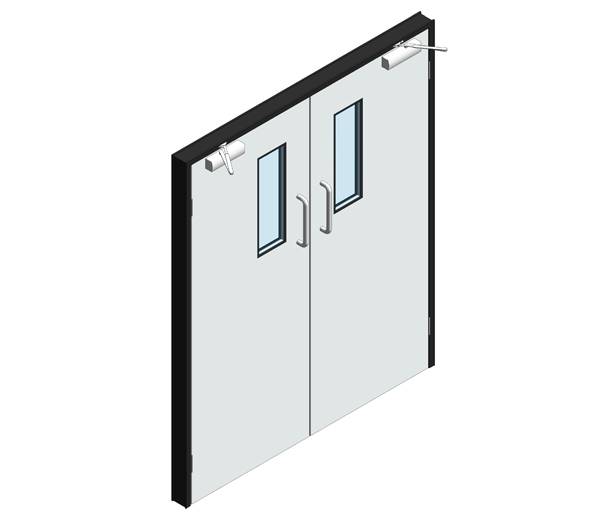

Hygienic Hinged GRP Lead Lined Doors - Pair (GRP frame)
Specialist lead lined GRP doors which are ideally suited to hospitals and other sterile environments where hygiene and x-ray protection are of utmost importance.
- X-ray theatres.
- Operating theatres.
- Isolation wards.
- Hospitals.
- Research laboratories.
- Veterinary practices.
Hygienic GRP hinged X-ray doors are ideally suited to hospitals and other sterile environments where hygiene and X-ray protection are of utmost importance. The doorset incorporates lead sheeting in a range of thicknesses, extending through the door frames, forming an effective barrier to radiation in all directions.
The doors do not harbour bacteria and are unaffected by moisture and common cleaning chemicals, making them particularly suitable in areas that have regular and rigorous cleaning regimes. Dortek hygienic doors are extremely strong and durable, yet light and easy to operate. The built-in colour is aesthetically pleasing and requires no maintenance.
Features:
- Fully sealed, ultra-clean construction.
- User defined lead protection.
- Free from voids, ledges and troublesome lippings.
- Non porous and non-shedding.
- Water and chemical resistant.
- Will not warp, rot, swell or rust.
- Lightweight, strong and user friendly.
Applications:
- X-ray theatres.
- Operating theatres.
- Isolation wards.
- Hospitals.
- Research laboratories.
- Veterinary practices.
| Color | Pastel BluePale GreenSky BlueMint TurquoiseGolden YellowPastel GreenCanary YellowPoppy RedPure WhiteManillaLight Aircraft GreyPastel VioletDark Admiralty GreyLight GreenWhiteSilver GreyMid BlueBright Orange |
| Finish | Smooth non-porous gelcoat finish with built in colour |
| Material | GRP |
| Shape | Rectangular |
| Size | 1850x20401450x20402050x20401050x20402850x20401250x20402650x20402450x24401650x20402450x20401850x24402250x20402850x24402650x24401450x24401650x24401728x20402250x24401250x24401728x24402050x24401050x2440 |
| WarrantyDescription | 12 Months Labor & Part Warranty |
| Uniclass 2015 |
| Product Reference | Dortek Hygienic Hinged GRP Lead Lined Doors |
| Width (single leaf) | 525 mm625 mm725 mm825 mm925 mm1025 mm1125 mm1325 mm1425 mm |
| Height | 2040 mm2440 mm |
| Operation | AutomatedManual |
| Colour | See 'Options' below and insert requirements. |
| Door frame | GRP with lead concealed within frameStainless steel with lead concealed within frame |
| X-ray protection | Code 3Code 4Code 5Code 6Code 7Code 8 |
| Hinges | Stainless steel lift off - high loadStainless steel lift off - standardStainless steel non lift off |
| Vision panels | 200 x 300 mm200 x 600 mm300 x 600 mm400 x 600 mm |
| Bumpers | PVC, 2 mm thick, smooth high impact, greyRubber, 3 mm thick, ribbed, blackStainless steel, 0.9 mm thick |
| Ironmongery | Insert requirement, consult with manufacturer, a wide range is available. |
| Standard product features | Format: Single action. Door leaf: - Material: 40 mm thick with a 2.5 mm thick seamless hygienic glass-fibre reinforced moulded polyester facing and a 35 mm thick vermiculite board core with a density of 380 kg/m³ and thermal conductivity of 0.05 W/mK. - Finish: Smooth non-porous gelcoat finish. Vision panels: Triple glazed lead lined laminate stepped safety glass. Positioned 165 mm (minimum) from the leading edge or centrally in width. |
| Product Options | Configuration: Available as single leaf or double leaf, dependent on size requirement, contact manufacturer for information. Interlocking systems available - contact manufacturer for more information. Size: Bespoke sizes available upon request - contact manufacturer. Door leaf colour: Bespoke colours available upon request - contact manufacturer.
|
| Platform | Compatible | Version | Certified to |
|---|---|---|---|
 Revit | Revit 2015 | 1 | 1.2 |
