Application

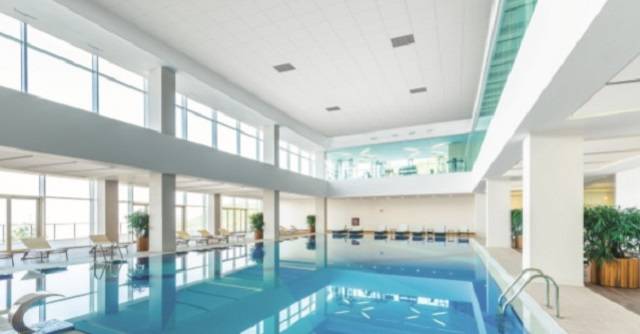

For applications where a suspended ceiling with a concealed grid is required, and individual tiles must be easily demountable. It is suitable for swimming hall areas, and is compatible with high humidity, corrosivity and occasional direct water.

Description

A sound-absorbing ceiling system for applications where a suspended ceiling with a concealed grid is required, and individual tiles must be easily demountable. Ecophon Hygiene Performance™ Ds has a symmetrical edge design, allowing easy assembly. The ceiling has an even appearance, with the bevelled edges forming a discreet groove between the tiles.

The system consists of Ecophon Hygiene Performance™ Ds tiles and Connect™ grid system, with an approximate weight of 3–4 kg/m².

Features and benefits:

  • The tiles are manufactured from high-density glass wool.
  • The visible surface has an Akutex™ HS coating, and the back of the tile is covered with glass tissue. The edges are painted.
  • The Connect™ grid system is in corrosion class C4.
  • Accessibility – the tiles are demountable.
  • Surface endurance – product tested according to ISO 11998, and withstands 200 cycles.
  • CE marked.

Application:

For applications where a suspended ceiling with a concealed grid is required, and individual tiles must be easily demountable. It is suitable for swimming hall areas, and is compatible with high humidity, corrosivity and occasional direct water.

General information
Finish

The visible surface has an Akutex™ HS coating, and the back of the tile is covered with glass tissue. Painted edges

Features

Accessibility – the tiles are demountable. Surface endurance – product tested according to ISO 11998, and withstands 200 cycles. CE marked

Material

High-density glass wool

Shape

Square or rectangular

Size

Two sizes available

WarrantyDescription

Full warranty available upon request

Uniclass 2015 Unit/ modular suspended ceiling systems (Ss_30_25_22_90)
Specification data
Product Reference

Hygiene Performance™ Ds

Ceiling support

Interlocking Connect™ T24 C4 grid

Support fasteners

Flexible hangers

Ceiling units

High-density glass wool tiles

System accessories

None

Connect™ Edge Sealant 0691

White.

Tile -
Size (l x w)

600 x 600 mm

1200 x 600 mm

Thickness

20 mm

Grid colour

Insert requirement; consult manufacturer for information.

Trim

Connect™ Shadowline Trim C1/C3 with lugs

Connect™ Channel Trim C1/C3/C4

Weight

3–4 kg/m² (approximate, including Connect grid system)

Overall depth of system (minimum)

385 mm

Demounting depth (minimum)

30 mm

Indoor climate

Certified as A by French VOC. Emission classification of building materials: M1

Moisture resistance

The tiles withstand a permanent ambient RH of up to 95% at 30°C

Fire safety

Complies with BS EN 13501-1, Class A2-s1, d0

Sound absorption

Practical sound absorption coefficient: 125 Hz: 0.5, 250 Hz: 0.8, 500 Hz: 0.8, 1000 Hz: 0.85, 2000 Hz: 0.95, 4000 Hz: 0.95. αw: 0.85. Sound absorption class (to BS EN ISO 11654): B

Cleaning

Daily dusting and vacuum cleaning, weekly wet-wiping. Can also withstand advanced cleaning, e.g. steam cleaning, and withstands use of hydrogen peroxide vapour

Disinfecting

No change in gloss or colour, after undergoing tests using disinfecting chemicals at the Swedish national Research and Testing Institute (SP)

Maximum live load

50 N

Minimum loadbearing capacity

160 N

Corrosion class (grid)

C4

Standard product features

Colour:

White 500 (nearest NCS colour sample S 0500-N, 85% light reflectance).

Features:

Accessibility – the tiles are demountable. Surface endurance – product tested according to ISO 11998, and withstands 200 cycles. CE marked.

Finish:

The visible surface has an Akutex™ HS coating, and the back of the tile is covered with glass tissue. Painted edges.

Material:

High-density glass wool.

Shape:

Square or rectangular.

Size:

Two sizes available.

Warranty description:

Full warranty available upon request.

Recycled content:

>44%.

Embodied carbon:

No performance declared.

Red Listed materials:

All Ecophon products are free from substances of very high concern (SVHC) and any compound on the list of REACH in the EU.

Country of origin:

Sweden, Finland or Poland.

Environmental information
Embodied carbon

No performance declared

Recycled content

>44%
