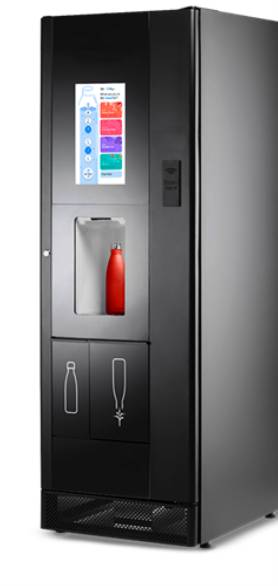

A floor standing flavoured water dispenser.
A floor standing flavoured water dispenser for any reusable bottle up to 750 ml.
Features and benefits:
Color | Black |
Shape | Rectangle |
Length | 735 mm |
Width | 615 mm |
Height | 1850 mm |
Uniclass | |
CAWS | N12/340 Appliances N12/340 Appliances N11/40 Appliances N13/379 Drinking fountains |
Product range |
Arrangement | Filtered chilled, sparkling, and ambient water dispenser with natural flavours and enhancements. |
Flow rate | 60 L/h.Guidance for specification option: 2 x 500 ml drinks per minute. |
Water inlet | 15 mm. |
Power supply | 0.39 kW at 220–240 V a.c.Guidance for specification option: 1 x 13 A socket outlet. Manufacturer guidanceNominal power rating kw. |
Water pressure | 2.5–6 bar. |
Integral accessories | Bottle washer and 93705- Zip MicroPurity filter HD 3 Micron. |
Contains Red List materials | No |
