High insulation timber/ aluminium composite curtain walling system.
A high performance, zone drained stick system. It achieves very high thermal insulation values, providing U Values well below the current and anticipated future Building Regulation requirements.
Comprising the insulating benefits of engineered timber on the inside and the durability of aluminium on the outside, the curtain wall can incorporate all of the Senior Hybrid and Aluminium windows and doors. Hybrid Curtain Walls are constructed using 50 mm vertical mullions with face fixed horizontal transoms on both the aluminium and the timber profiles. A range of transom and mullion sections are available to maximize performance.
The Hybrid Curtain Wall has been tested in accordance with the CWCT Curtain wall standard and BS EN 13830: 2003.
High thermal performance, excellent weather performance
H11/110 Curtain walling

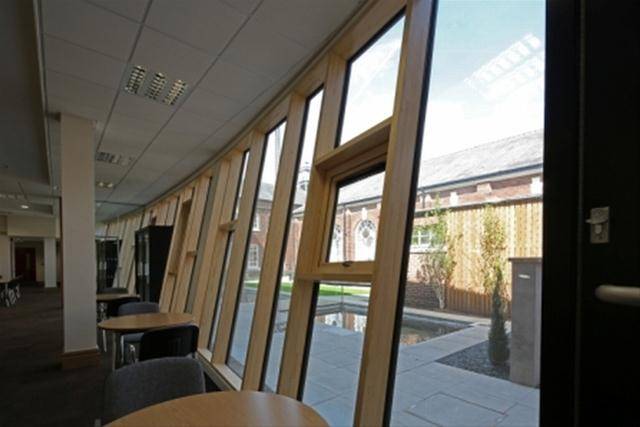

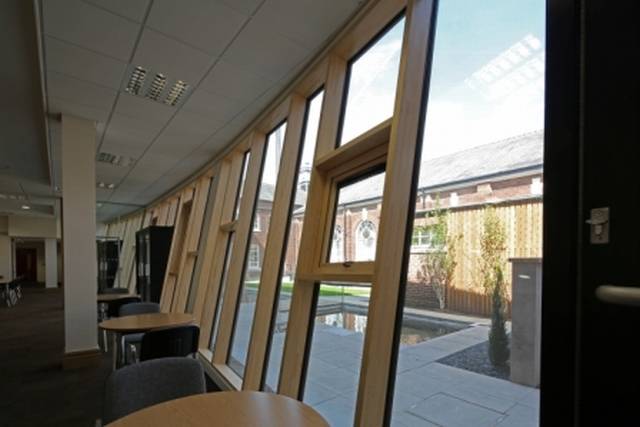

Hybrid Series 3 Composite Curtain Wall System
|Internal framing member||-|
Water based paint, colour ___
|External cover cap||-|
Aluminium alloy to BS 1474: 1987
Anodized, colour ___
Polyester powder coated, colour ___
|Minimum film thickness|
Insulating glass units, ___ mm thick
Dry glazed, dual gaskets
|Standard product features|
Type of curtain walling:
Stick system, thermally broken, engineered timber section and aluminium plate format, compartment drained.
Consult manufacturer for other timber species, special order.
Framing member spacing:
Maximum width: 2400 mm. Maximum height to suit conditions.
Type of curtain walling: Stick system, thermally broken, engineered timber section and aluminium plate format, compartment drained. Framing member spacing: Maximum width: 2400 mm. Maximum height to suit conditions. Gaskets: PVC Nytrile manufactured to BS 3734 and BS 7412 Cat A.
Consult with Senior Architectural Systems for availability of colours and to obtain samples.
Minimum film thickness:
Consult with Senior Architectural Systems for recommendations and details.
The system is dry glazed using compressed seals for optimum performance.
