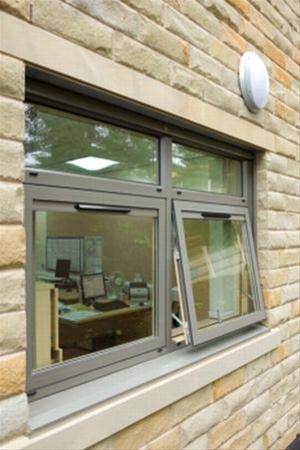

Hybrid Series 1 Composite Casement Window System [Curtain Wall Placement]

Description

A range of hybrid, composite aluminium and timber window systems, available in standard sizes.


Construction:

  • Constructed using mitred joints on both the aluminium and timber frames.
  • Using a mechanical corner joint on the aluminium frame and dovetail keys on the timber frame enables the frames to be constructed without the need for complicated production processes.
  • Integral transoms and mullions are inserted by scribing the ends and screw fixed to the frame.
  • A sealant is used on all metal joints, the timber mainframe sections are mitre jointed using a unique closed joint method.
  • Opening window frames are designed to be inserted directly into the outer frames using friction stays.
  • Polyamide thermal barriers are manufactured in accordance with PA66 GF25.
  • Gaskets are manufactured in accordance with BS 3734.


Features and benefits:

  • 83 mm high-performance window system, with 68 mm wide timber frame.
  • Achieves very high thermal insulation values.
  • Aluminium outer frames and timber inner frames.
  • Timber for the internal frames is available from stock within the UK and is from sustainable forests.
  • Tested in accordance with BS 6375-1 – test reports are available from the manufacturer.


General information

Material

Aluminium

Exterior aluminium cladding: Extruded aluminium alloy 6060 or 6063 T6 to BS EN 755-9:2008.

Glass

Timber

Shape

Rectangular

Square

Size

800 x 800 mm

1000 x 1000 mm

1200 x 1200 mm

1230 x 1480 mm

Uniclass 2015

Pr_30_59_98_15 Composite window unitsPrimary

CAWS

L10/25 Aluminium windows

L10/33 Proprietary windows

L10/330 Aluminium windows

Specification data - Composite window units Enhanced data

Dimensions and configurations

Typical sizes:

- Flush Casement:

  • Width: 1200 mm.
  • Height: 1200 mm.

- Overswing:

  • Width: 1500 mm.
  • Height: 1500 mm.

- Top Hung and Side Hung:

  • Width: 900 mm (side hung); 1500 mm (top hung).
  • Height: 1200 mm.

- Tilt and Turn:

  • Width: 1200 mm.
  • Height:1200 mm.

800 x 800 mm.

S1.

1000 x 1000 mm.

S2.

1200 x 1200 mm.

S3.

1230 x 1480 mm.

S4.

As drawing.

Non standard size.

As schedule.

Insert details.

Product performance

-

Weather performance

-

Air permeability

To BS 6375-1, 600 Pa.

Watertightness

To BS 6375-1, 600 Pa.

Resistance to wind load

To BS 6375-1, 2400 Pa.

Safety

-

Security level

To BS 7950:1997.

Security hardware required. Consult manufacturer for details.

Thermal

-

Whole window U-value

U-value varies depending on type and size of window, consult manufacturer for exact details, and insert requirement.

-

Frame

-

Wood species

Spruce.

  • Purpose engineered profiles in spruce laminated timber (Scantlings); in principle without faults (knots and flaws).
  • Certificated to IFT Rosenheim, DIN EN 204 glued with D4 glue.
  • Finger joints in outer layer minimum 500 mm centres.
  • Moisture content: 12% +/- 2%.
  • PEFC /04-32-0042 Certified.

Consult manufacturer for other timber species, special order.

Wood finishes

Matt laquer.

150–300 micron wet film thickness.

Water based paint.

Insert colour requirements.

Metal finishes

-

Coating

Anodizing.

Powder coating.

Colour

Powder coating available in any polyester powder colour from the manufacturer's in-house paint facility, in gloss, matt or satin finish. Consult manufacturer and insert requirement.


Glazing or infill

-

Requirements

As standard.

28 mm double glazing as standard.

Non standard.

A variety of glass options are available - contact manufacturer for details and insert requirements.

Product Reference

Hybrid Series 1 Window

Type

Flush casement.

Overswing.

Side hung open out.

Tilt and turn.

Top hung open out.

Digital objects

Platform Compatible Version Certified to
IFC

IFC2X3

2

1.3
Revit

Revit 2016

3

2.0
Download now from NBS National BIM Library
