HVAC Metal Bellows
Verified by manufacturer 6 months ago
Copper End Axial Expansion Joints - DN012-½”
Copper End Axial Expansion Joints - DN012-½”
A range of HVAC metal bellows.
Application
- Copper End Axial Expansion Joints are primarily for HVAC water applications – LTHW, heating and drinking water.
- Union End Axial Expansion Joints are primarily for HVAC water applications – HTHW, heating. Not suitable for drinking water.
- Flanged Axial & Pump Expansion Joints are intended for HVAC water applications – HTHW, heating and steam. Not suitable for drinking water.
Description
A range of three HVAC metal bellows; Copper End Axial, Union End Axial, and Flanged Axial & Pump Expansion Joints.

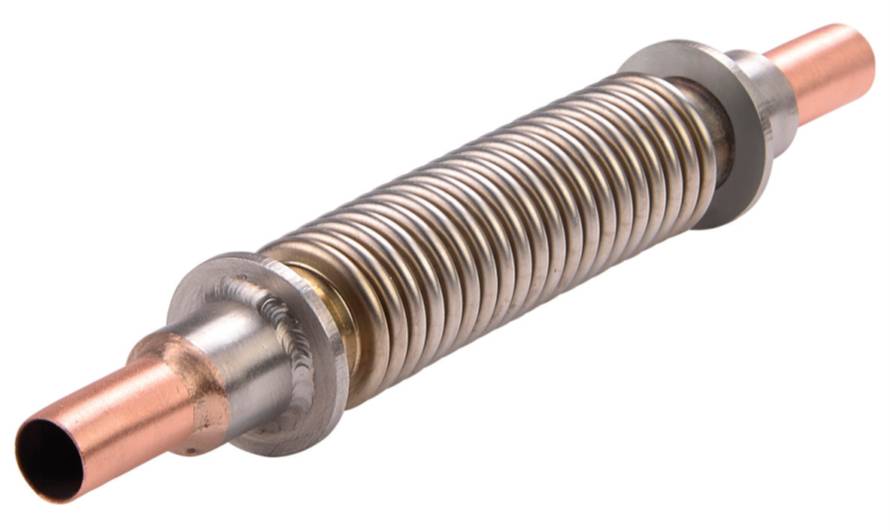

Copper End Axial Expansion Joints are small-bore HVAC copper-ended metal axial expansion joints with stainless steel convoluted bellows. WRAS approved.

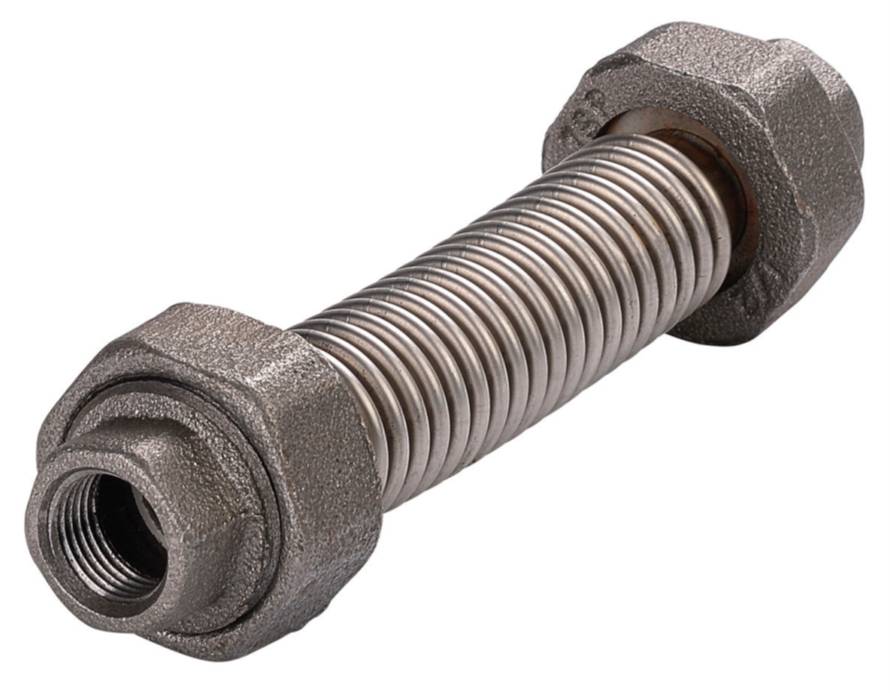

Union End Axial Expansion Joints are union-ended with 316 stainless steel bellow.
Flanged Axial Expansion Joints are stainless steel 316 bellows designed to EJMA, stainless steel liner and carbon steel PN16 flanges. Available in long and short versions.
Pump Expansion Joints are stainless steel 316 bellows designed to EJMA, optional stainless steel liner and carbon steel PN16
flanges. Available with tied and untied flanges.
General information
Color | Copper Grey |
Finish | Natural |
Material | Copper Stainless steel Carbon steel |
Shape | Circle |
Length | 220 mm 230 mm 235 mm 245 mm 250 mm |
Width | Bespoke |
Height | Bespoke |
Warranty description | One year |
Uniclass | |
CAWS | S90/110 Mains cold water supply S90/110 Mains cold water supply T90/110 Heating system T90/110 Heating system |
Specification data - Axial expansion compensators
Material | |
Bellows | Stainless steel (316). |
Inner sleeve | Butyl (IIR)/ EPDM. |
Connections | Copper BS EN 1057 Table ‘X’ ends. |
Length | 220 mm. |
Sustainability data
Contains Red List materials | No |
Recyclability | 100% |
Literature
Product Data Sheet - HVAC Range Flanged Rubber Bellows
Product Data Sheet - HVAC Range Copper End Axial Expansion Joints
Product Data Sheet - HVAC Range Union End Axial Expansion Joints
Product Data Sheet - HVAC Range Flanged Axial & Pump Expansion Joints
