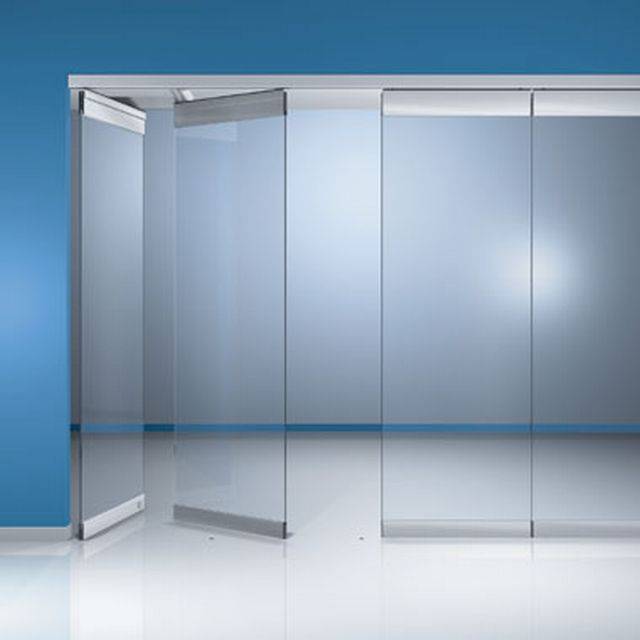

Sliding stacking glass wall system, comprising top hung, frameless glass panels. Floor guides are not required.

When closed, individual panels are locked to the floor. Individual panels can also be used as single or double action doors, with DORMA closers – if required.

Curved glazing can be securely held by this system, and can be combined with curved track rail profiles to produce unique configurations.

Individual panels can be of differing widths; largest widths should not exceed smallest width x 115%.

System components;

  • Track rail – for bolting to substructure (optional DORMA substructure available).
  • Roller/ suspension assembly.
  • Suspension straps with single-point fixings.
  • Toughened or laminated safety glass panels – by others.

General information
Specification data
Product Reference

HSW-GP

System height

___ mm

Panel Type

Fixed side screen; ___ mm wide

Non-sliding; retaining pins at top, fixed screen straps at bottom.

Double action end panel, ___ mm wide; with centre top and floor pivots

Double action end panel, ___ mm wide; with full length pivot rod and offset floor pivot

Double action end panel, ___ mm wide; with full length pivot rod, offset pivot and BTS floor spring

Single action end panel, ___ mm wide; with centre top and floor pivots

Single action end panel, ___ mm wide; with full length pivot rod and offset floor pivot

Sliding panel, ___ mm wide

Fixed when frontage closed.

Glass (by others) -
Type

Laminated safety glass

Toughened safety glass

Thickness

___ mm

Panel stacking arrangement

90° transverse to travel direction, standard parking

90° transverse to travel direction, at acute angle

90° transverse to travel direction, behind end panel

90° transverse to travel direction, box/ pocket parking

90° transverse to travel direction, box parking behind end panel

90° transverse to travel direction, niche parking

90° transverse to travel direction, niche parking behind end panel

90° transverse to travel direction, track 135° behind column

90° transverse to travel direction, with reshuffle bypass

Parallel to travel direction, behind fixed screens

Parallel to travel direction, beyond offset pivoting end panel

Parallel to travel direction, offset in niche

Parallel to travel direction, parallel stacking track

Parallel to travel direction, track at 5° angle

Parallel to travel direction, track 90° behind column

Parallel to travel direction, track 135°

Special, in closed compartment behind pivoting end panel

Special, in front of 90° wall

Special, without stacking track

Accessories/ Other requirements

Back-to-back pull handles (pair)

Pull handle with single point fixings

Standard product features

Components:

High-grade stainless steel.

System parameters:

  • Maximum system height: 3000 mm.
  • Maximum panel width: 1200 mm.
  • Maximum panel weight: 100 kg.

Product Options

Stacking arrangement:

  • State whether stacking is left or right, or left and right.
  • Consult manufacturer's literature for further information and diagrams of stacking arrangements.
