HSW-G Frameless glass sliding stacking wall system

Name: HSW-G Frameless glass sliding stacking wall system
Brand: oZyPAQohpPthwXFK6QotW6
SKU: uqLLBMuLMFBxoDgEftHQPQ

dormakaba UK & Ireland

Frameless glass sliding stacking wall system with top and bottom rails.

Jump to:

+44 (0)1462 477600 www.dormakaba.co.uk

Description

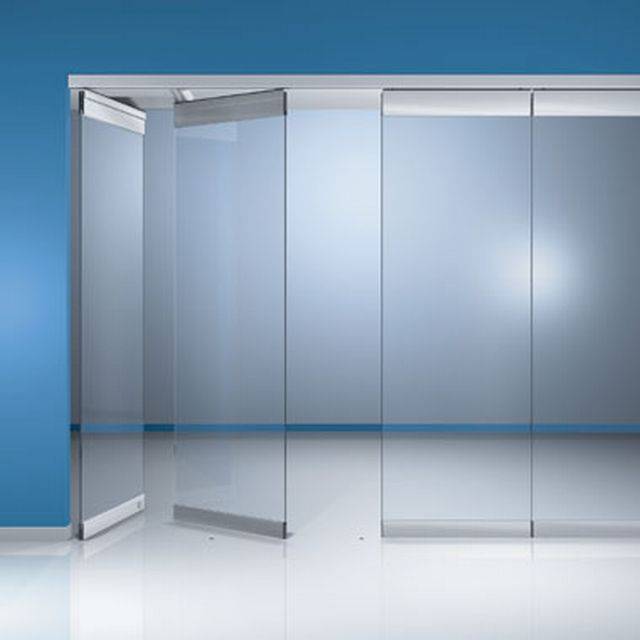

Sliding stacking glass wall system, comprising top hung, frameless, glass panels with top and bottom rails. Floor guides are not required.

When closed, individual panels can be locked to the floor and to adjoining panels. Panels can also be used as single or double action doors, with DORMA closers – if required.

Individual panels can be of differing widths; largest widths should not exceed smallest width x 115%.

System components:

Track rail – for bolting to substructure (optional DORMA substructure available).

Carrier – fits into track rail.

Suspension assembly and bearing profile – for safe and easy sliding of panels.

Top and bottom door rails, comprising base profiles with clip-on face and side covers.

Toughened or laminated safety glass panels – by others.

General information

Uniclass 2015	Pr_25_71_57_80 Sliding stacking panel partitionsPrimary
CAWS	L20/545 Sliding stacking panel partitions

Specification data - Sliding stacking panel partitions

Product Reference	HSW-G
System height	___ mm
Panel Type	Door, single action; ___ mm wide End panel; ___ mm wide End panel, double action; ___ mm wide; with BTS 80 floor spring End panel, double action; ___ mm wide; with BTS 84 floor spring End panel, double action; ___ mm wide; with floor pivot End panel, single action; ___ mm wide; with BTS 80 floor spring End panel, single action; ___ mm wide; with BTS 84 floor spring End panel, single action; ___ mm wide; with DORMA TS 73 overhead door closer End panel, single action; ___ mm wide; with DORMA TS 92 overhead door closer End panel, single action; ___ mm wide; with floor pivot Folding sliding panel; ___ mm wide Side screen, fixed; ___ mm wide Sliding panel; ___ mm wide Sliding panel, double action; ___ mm wide; with BTS 80 'Z' floor spring Sliding panel, double action; ___ mm wide; with BTS 84 'Z' floor spring Sliding panel, double action; ___ mm wide; with RTS transom door closer; 90° hold-open Sliding panel, double action; ___ mm wide; with RTS transom door closer; without hold-open Sliding panel, single action; ___ mm wide; with TS 92 cam-action door closer
Top and bottom rail material/ finish	Aluminium, anodized; colour ___ Aluminium, polyester powder coated; colour ___ Brass Stainless steel
Bottom rail design	Deadlock + end-mounted slide bolt End-mounted pin bolt + deadlock End-mounted pin bolt + end-mounted slide bolt End-mounted pin bolt + face-mounted slide bolt Face-mounted slide bolt + deadlock Face-mounted slide bolt + end-mounted slide bolt Recess for end-mounted slide bolt + deadlock Recess for end-mounted slide bolt + end-mounted slide bolt Recess for end-mounted slide bolt + face-mounted slide bolt Two face-mounted side bolts
Glass (by others)	-
Type	Laminated safety glass Toughened safety glass
Thickness	___ mm
Accessories/ Other requirements	Additional locking device to each single action end panel DORMA track mounting substructure
Panel stacking arrangement	90° transverse to travel direction, standard parking 90° transverse to travel direction, at acute angle 90° transverse to travel direction, behind end panel 90° transverse to travel direction, box/ pocket parking 90° transverse to travel direction, box parking behind end panel 90° transverse to travel direction, niche parking 90° transverse to travel direction, niche parking behind end panel 90° transverse to travel direction, track 135° behind column 90° transverse to travel direction, with reshuffle bypass Parallel to travel direction, behind fixed screens Parallel to travel direction, beyond offset pivoting end panel Parallel to travel direction, offset in niche Parallel to travel direction, parallel stacking track Parallel to travel direction, track at 5° angle Parallel to travel direction, track 90° behind column Parallel to travel direction, track 135° Special, in closed compartment behind pivoting end panel Special, in front of 90° wall Special, without stacking track

Product Options

Panel type:

Door, single action – Non-sliding, operates independently of the rest of the system; offset pivoting arm assembly can be swung around 180°; bottom deadlock secures closed leaf.

End panel – Non-moving; equipped with bottom deadbolt, with option of top bolt or side-action deadlock.

End panel, double action, with BTS 80 floor spring – Adjustable hold-open;

End panel, double action, with BTS 84 floor spring – Optional 90° hold-open; panels maximum 1250 mm wide x 100 kg; maximum system height 4000 mm.

End panel, double action, with floor pivot with round spindle – Panels maximum 1250 mm wide; maximum system height 4000 mm.

End panel, single action, with BTS 80 floor spring – Adjustable hold-open; panels maximum 1250 mm wide x 150 kg; maximum system height 4000 mm.

End panel, single action, with BTS 84 floor spring – Optional 90° hold-open; panels maximum 1250 mm wide x 100 kg; maximum system height 4000 mm.

End panel, single action, with DORMA TS 73 or TS 92 overhead door closer – Panel maximum 1250 mm wide; maximum system height 4000 mm.

End panel, single action, with floor pivot with round spindle – Panels maximum 1250 mm wide; maximum system height 4000 mm.

Folding sliding panel – Hinged, with bottom lock and slide bolt; latching bolts top and bottom fix final folding panel to slide panel; panels maximum 1000 mm wide x 70 kg (per panel); maximum system height 3000 mm.

Side screen, fixed – Non-moving side screen, operates independently of the rest of the system; same basic design as sliding panels.

Sliding panel – Stationary when frontage or partition is closed, panels maximum 1250 mm wide; maximum system height 4000 mm.

Sliding panel, double action, with BTS 80 'Z' floor spring – Operational when frontage closed; adjustable hold-open; panels maximum 950 mm wide x 75 kg; maximum system height 3000 mm.

Sliding panel, double action, with BTS 84 'Z' floor spring – Operational when frontage closed; optional 90° hold-open; panels maximum 950 mm wide x 75 kg; maximum system height 3000 mm.

Sliding panel, double action, with RTS transom door closer, with or without 90° hold-open – Operational when frontage closed; panels maximum 1250 mm wide x 100 kg; maximum system height 3600 mm.

Sliding panel, single action with TS 92 cam-action door closer – Operational when frontage closed; panels maximum 1250 mm wide x 100 kg; maximum system height 3600 mm.

Stacking arrangement:

State whether stacking is left or right, or left and right.

Consult manufacturer's literature for further information and diagrams of stacking arrangements.
