Hotflo - Electric Unvented Storage

Verified by manufacturer 5 days ago

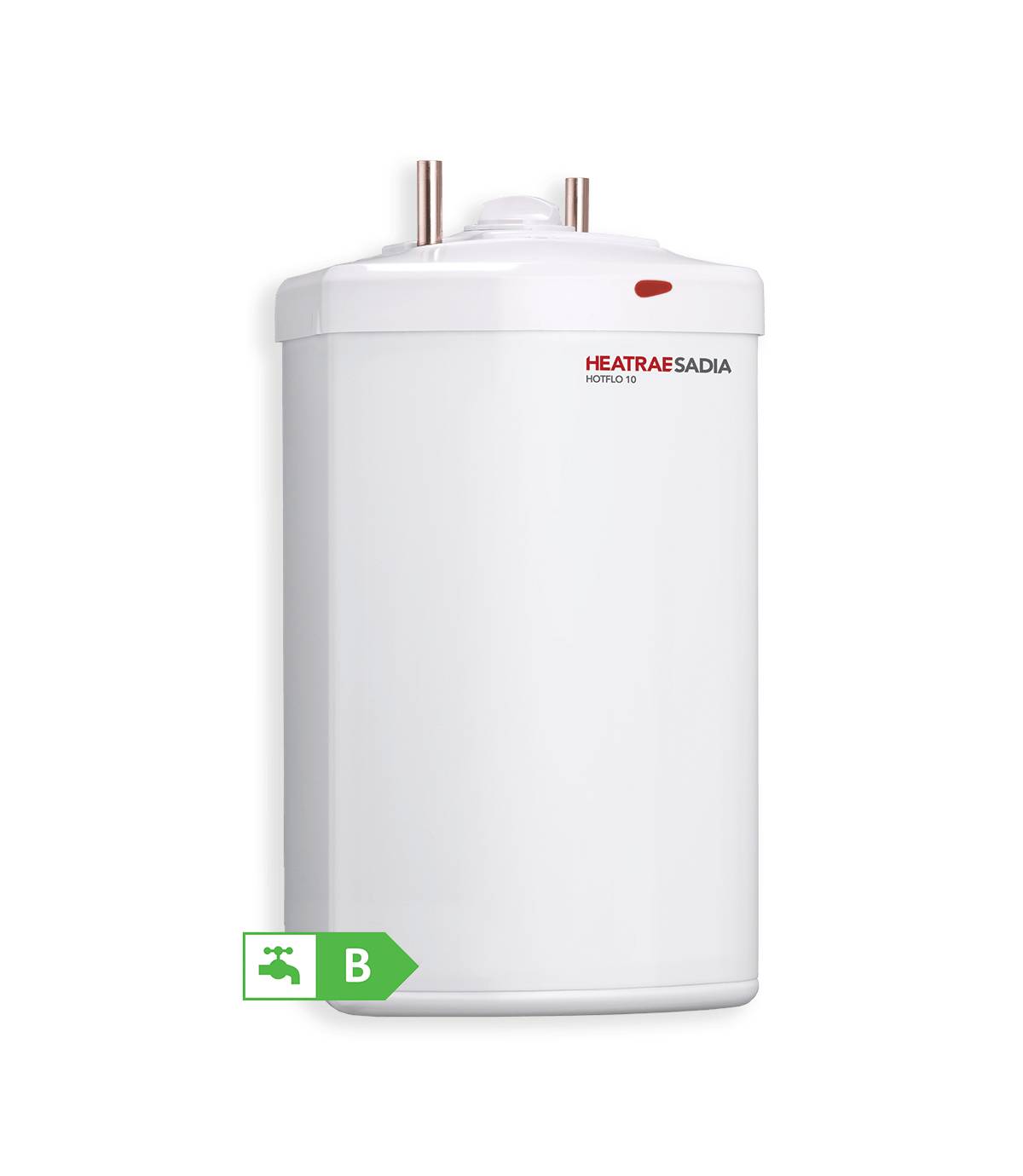

Hotflo 10

BAXI HEATING UK LIMITED Variant:

Commercial unvented water heaters for multiple outlets.

Jump to:
0330 678 0140 Website

Application

Suitable for light commercial installations such as canteens, washrooms and commercial kitchens.

Description

Hotflo is an unvented water heater which is suitable for supplying environments such as washrooms with two or three hand basins or sinks. Designed for small to medium commercial businesses, Hotflo is suitable when there is no need for a cold water cistern, which provides flexibility of installation and works with either standard or mixer taps.

Features and benefits:

Hotflo 10 to 15 Litre

  • Available in 10 litre (suitable for up to two basins) and 15 litre (suitable for up to three basins) capacities.
  • IPX4 rated.
  • 2.2 kW element rating.
  • Replaceable heating element.
  • Externally adjustable thermostat from 10°C to 70°C.
  • CFC/HCFC free (ODP zero) flame-retardant expanded polystyrene.
  • Element 'On' indicator.
  • No sacrificial anode to inspect or replace.
  • Suitable for use with any standard tap or mixer.
  • Pressure relief valve supplied with all models.
  • BEAB and Kiwa approved to UK Water Supply Regulations. CE marked.
  • Two year guarantee with on-site service support.
  • Designed, engineered and manufactured in the UK.

Hotflo 50 to 100 Litre

  • Available as both a horizontal and a vertical unit.
  • Available in 50, 80 and 100 litre capacities.
  • 3 kW element rating.
  • Factory fitted temperature and pressure relief valve for added safety control on installation.
  • Manufactured from high grade duplex stainless steel for corrosion resistance and longevity.
  • Nemko and Kiwa approved to UK Water Supply Regulations. CE marked.
  • Five year warranty covers inner container only.
  • Designed, engineered and manufactured in the UK.

General information

Color

White

Finish

Coated

Material

Stainless steel

Polystyrene

Shape

Rectangle

Length

252 mm

350 mm

454 mm

Width

267 mm

337 mm

1038 mm

1207 mm

371 mm

Show more

Height

500 mm

656 mm

371 mm

454 mm

1007 mm

Show more

Warranty description

Two year

Five year

Guidance for specification option:

Inner cylinder warranty.

Uniclass

Pr_60_60_96_28 Electric storage water heatersPrimary

CAWS

S90/400 Storage water heaters, electric

SKU Code

95050148

Specification data - Electric storage water heaters

Classification data

Standards

To BS EN 60335-2-21.

Third-party certification

BEAB and KIWA approved.

Arrangement

Mains supply.

Capacity

10 L.

Rating

2.2 kW.

Flow rate

-

Manufacturer guidance

Consult manufacturer for details and insert requirements.

Casing finish

Manufacturer's standard.

Controls

Adjustable thermostat.

Accessories

Pressure relief valve.

Cylinder

Duplex stainless steel.

Insulation

CFC/HCFC free flame-retardant expanded polystyrene.

Dimensions

500 x 267 x 252 mm.

Manufacturer guidance

Height x width x depth.

Weight

6.5 kg (empty); 16.5 kg (full).

Ingress protection (IP) rating

IPX4.

Environmental performance

ErP rating: B.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Material

Stainless steel
Polystyrene

Recyclability

-

Manufacturer guidance

The cylinders are largely recyclable:

  • Stainless steel and metal components can be recovered.
  • Polyurethane insulation and plastic parts require specialist recycling.
  • Baxi supports responsible disposal practices
  • 1
  • .

Expected Life

25 year
