Horizontal Sliding Aluminium Windows/ Serving Windows - Horizontal Sliding Windows

Verified by manufacturer 2 months ago

Medium Duty

Next Doors Ltd Variant:
Third party certifications:
  • CHAS

    CHAS

    Certificate type

  • Alcumus SafeContractor

    Alcumus SafeContractor

    Certificate type

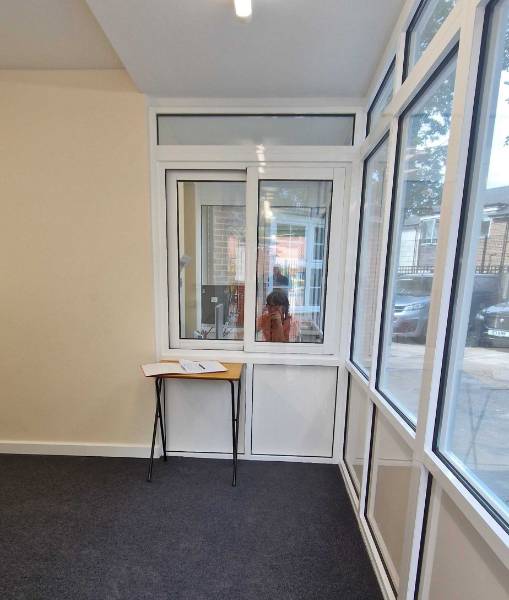

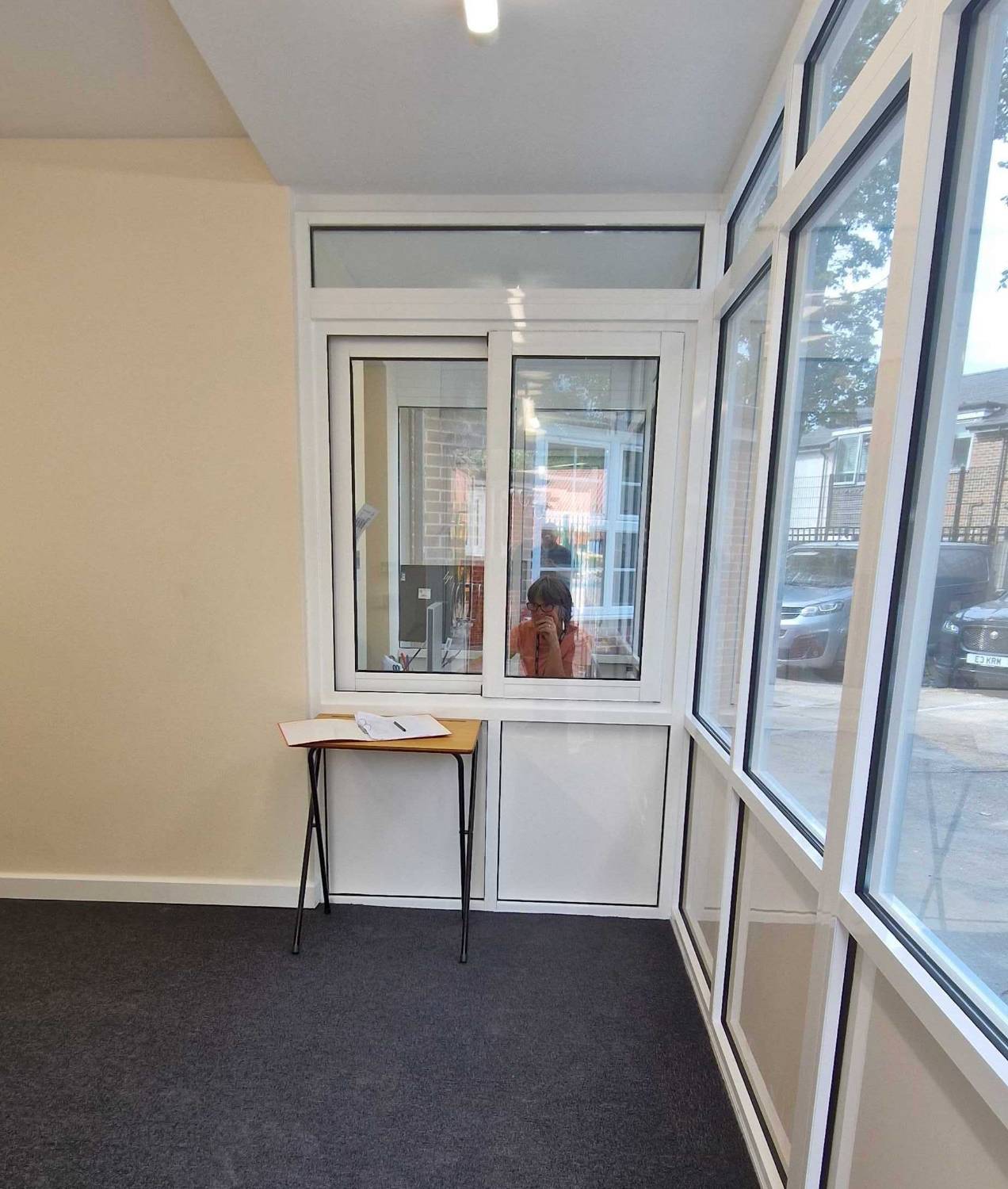

Horizontal Sliding Aluminium Serving windows for internal and external use

Jump to:
+44 (0)843 523 1063 Website

Application

  • Horizontal Sliding Aluminium Serving windows are suitable for all types of buildings where windows of a commercial nature are required including but not limited to hospitality and fast food, offices, schools, retail, doctors, hospitals, care centres.
  • Suitable for internal and external use.

Description

Serving Windows (also known as sliding glass windows, serving windows or serving hatches) are a solution for businesses who wish to offer a quicker service level and reduce the amount of customers inside the premises. These can be manual or automatic and either flush with the building or in it’s own booth. In fact, they are very similar to Drive Thru Windows and are completely custom built.


There are 2 variants available, Medium Duty and Heavy Duty Serving Windows.


Heavy Duty Aluminium Horizontal Sliding Serving Window

  • This window is suitable for heavy use environments where the window is going to be operated regularly. Also better suited for a smaller opening as this has a lot more versatility with the build and can be made to open behind walls providing a larger opening space.


Medium Duty Aluminium Horizontal Sliding Serving Window

  • These windows are thermally broken and made to measure the opening dimensions. They are better suited for lower use environments such as reception areas. Medium Duty windows cannot be customised.
  • Both windows can slide and have separate locks to enable either side to be fixed.




Features and benefits:

  • Aluminium serving windows are tailored for outdoor and indoor use and are weather-resistant, suitable for food trucks, restaurants, commercial kitchens, receptions and more.
  • Suitable internal or external use.
  • Option of external window sill.
  • Manufacturer supplies a sub sill below the window and different length sill nosing's to suit the depth of the wall.
  • The sill nosing's are colour matched and fix in via a lock in ratchet system. Once fitted these are locked in place and are very rigid.

General information

Color

Other

Guidance for specification option:

Available in RAL colours.

Beige

Black

Blue

Bronze

Show more

Finish

Powder-coated

Anodized

Mill

Glazed

Gloss

Show more

Material

Aluminium

Glass

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

One year

Guidance for specification option:

Installation - warranty for 12 months.

Five year

Guidance for specification option:

Aluminium window and frame - guaranteed for five year.

Ten year

Guidance for specification option:

Powder coating - ten year guarantee.

Uniclass

Pr_30_59_98_02 Aluminium window unitsPrimary

CAWS

L10/25 Aluminium windows

L10/330 Aluminium windows

Specification data - Aluminium window units

Standard

Non-fire and/ or smoke-rated windows to BS 4873.

Dimensions and configurations

Guidance for specification option:

Bespoke. Consult manufacturer and insert requirements.

Frame

-

Finish as delivered

-

Coating

Powder coating to BS EN 12206-1.

Anodized to BS EN 3987.

Colour

Guidance for specification option:

Bespoke - all colours available. Consult manufacturer and insert requirements.

Glazing or infill

-

Standard

Relevant parts of BS EN 1279.

Requirements

28 mm glazing.

Hardware

In line handle with built in lock.

Operation

-

Type

Manual.

Powered.

Configuration

Single sliding.

Bi-parting.

Fixed screens.

Side screens.

Top screens.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

Aluminium building products are collected and recycled at end-of-life very efficiently, and the end-of-life recycling rate for aluminium is >90%.

Guidance for specification option:

Aluminium building products are collected and recycled at end-of-life very efficiently, and the end-of-life recycling rate for aluminium is >90%.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

90 %

Third party certifications

CHAS

CHAS

CHAS certificate

Alcumus SafeContractor

Alcumus SafeContractor

SafeContractor Certificate

Literature

Serving window brochure

Serving window brochure

Case studies

CDS WILMAN - MEDIUM DUTY SERVING WINDOW

CDS WILMAN - MEDIUM DUTY SERVING WINDOW

PEBBLES ONE - HEAVY DUTY SERVING WINDOW

PEBBLES ONE - HEAVY DUTY SERVING WINDOW

RAYNES PARK SCHOOL - HEAVY DUTY SERVING WINDOW

RAYNES PARK SCHOOL - HEAVY DUTY SERVING WINDOW

Heavy Duty Serving Window Drive Thru

Heavy Duty Serving Window Drive Thru

DRIVE THRU POD

DRIVE THRU POD
