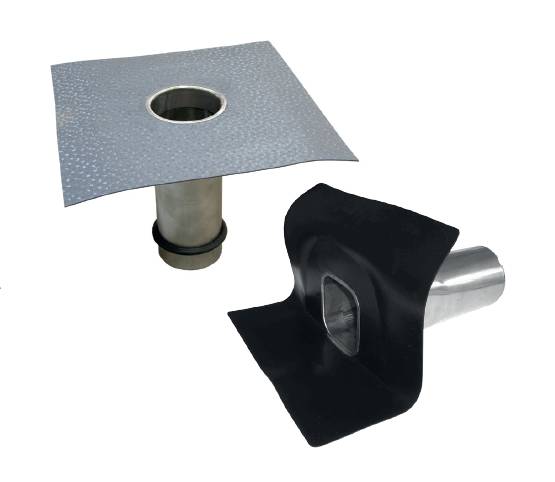

Horizontal Outlets - Rainwater Outlet
Verified by manufacturer 2 days ago
Stainless steel rainwater outlets with Protan G membrane collar for roof drainage in new-build and refurbishment projects.
Application
- For use on both new-build and refurbishment roofing projects.
- Suitable for through-wall installation.
Description
Protan ProJual Rainwater Outlets are manufactured from stainless steel and are fitted with a Protan G membrane collar.
The stainelss steel plate as a 90° bend to one edge to allow the outlet to sit snugly against a parapet wall with the outlet leg flush with the finished roof level.
Features and benefits:
- Manufactured from stainless steel.
- Fitted with a Protan G membrane collar for watertight finish.
- Available in a range of sizes to suit different roof drainage requirements.
- Easy, fast and reliable to install with coupling seal for watertight connection to downpipe.
- Minimal maintenance required; periodic inspections recommended to ensure outlets are free from debris.
- Includes leaf guard options: wire ball leaf guard with weatherproof plastic coating and stainless steel universal leaf guard adjustable up to 160 mm diameter.
General information
Color | Black |
Material | Stainless steel |
Shape | Square |
Length | 50 mm 75 mm 90 mm 110 mm 145 mm |
Width | 50 mm 75 mm 90 mm 110 mm 145 mm |
Uniclass | |
CAWS | R10/26 Proprietary rainwater outlets R10/365 Proprietary rainwater outlets |
Specification data - Gravity rainwater outlets
Classification data | |
Roof construction | |
Form | Manufacturer guidanceInsert requirements. |
Roof insulation thickness | Manufacturer guidanceInsert requirements. |
Material | Stainless steel. |
Grating | Wire ball leaf guard. Guidance for specification option: Iron wire with plastic coating. Suitable for outlets up to 110 mm diameter. Stainless steel universal leaf guard. Guidance for specification option: Can be mounted on outlets up to 160 mm in diameter. |
Integral accessories | Protan G membrane collar and coupling seal. |
Diameter | 50 mm. 75 mm. 90 mm. 110 mm. 145 mm. |
Sustainability data
Material | Stainless steel |
Literature
Protan (UK) Ltd ProJual Rainwater Outlets Technical Data Sheet 160908_1
Protan (UK) Ltd Prefabricated Details Technical Data Sheet 160906_1
