Horizontal lifeline systems offering fully compliant, practical solutions for structures of all types, in all industries.

Jump to:
+44 (0)114 2138 600 Website

Application

The multi-safe systems are designed to fix to structures, including walls, soffits, steelwork and roofs.

Description

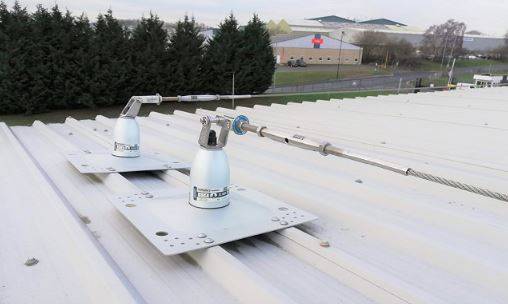

Designed to fix directly to roof sheets and offer fixings methods for all major roof types. Systems can be either 8 mm steel wire-based or rail-based, with posts up to 15 m centers.


The RoofSafe cable system has been designed to complement the RoofSafe anchor product range, taking advantage of the low system loads generated in the event of a fall. The system can accommodate multiple workers providing that site, systems and structural parameters permit.


The force management technology permits the use of thin metal roof sheets and other roofing substrates as structural anchors, by limiting the forces in a system that are generated in the event of a fall to less than 10 kN (2200 lbs) through a built-in energy absorber.


Features and benefits:

  • Multi-directional and can activate and absorb energy no matter in which orientation the load is applied, providing freedom and flexibility in system design.
  • Energy absorbing system inside the RoofSafe anchor reduces the overturning moment on the fixings by half enabling the use of fewer fasteners in many circumstances.
  • Toggle fixing method for flat roofing systems speeds up installation time and reduces thermal bridging, reducing heat loss from a building.
  • RoofSafe anchor utilizes marine grade alloys in its design to reduce the overall weight and save shipping costs.
  • The base plate designs incorporate multiple fixing options to help reduce the complexity of specification and in turn helps maximize inventory to ensure speedy delivery.
  • RoofSafe anchor for flat roofing systems has been designed to be easy to weather proof ensuring the integrity of the building envelope.
  • RoofSafe cable system uses high quality 316 stainless steel.
  • System spans up to 15 m (49.2 ft) between intermediate supports, minimizing roof penetrations.
  • Electro polished components provide long-term corrosion resistance.
  • System performance can be calculated using custom design software providing assured levels of safety.
  • The system maintains a minimum safety factor of two for multiple users.
  • Conforms to EN 795:2012, CEN/TS 16415, OSHA, AUS/NZ standards and has been tested to both EN 795:2012 Type A and C standards.

General information

Color

Silver

Finish

Stainless steel

Material

Steel

Shape

Other

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Two year

Uniclass

Ss_80_30_25_35 Guided type fall arrest systemsPrimary

CAWS

N25/220 Single point anchorage devices

N25/20 Single point anchorage devices

N25/10 Personal fall protection equipment

N25/210 Personal fall protection equipment

Specification data - Guided type fall arrest systems

Pre-installation survey

Suitability of structure and fabric.

Structural anchors

RoofSafe anchor module end/ corner/ top fix.

Guidance for specification option:

7241141.

  • Aluminium/ steel/ stainless steel.
  • 2.50 kg.

RoofSafe anchor module intermediate top fix.

Guidance for specification option:

7241142.

  • Aluminium/ steel/ stainless steel.
  • 0.50 kg.

RoofSafe anchor module end/ corner - bitumen.

Guidance for specification option:

7241143.

  • Aluminium/ steel/ stainless steel.
  • 2.80 kg.

RoofSafe anchor module intermediate - bitumen.

Guidance for specification option:

7241144.

  • Aluminium/ steel/ stainless steel.
  • 0.80 kg.

RoofSafe anchor module end/ corner - all membranes.

Guidance for specification option:

7241147.

  • Aluminium/ steel/ stainless steel/ polyurethane.
  • 2.60 kg.

RoofSafe anchor module intermediate - all membranes.

Guidance for specification option:

7241148.

  • Aluminium/ steel/ stainless steel/ polyurethane.
  • 0.60 kg.

RoofSafe anchor module end/ corner - PVC.

Guidance for specification option:

7241145.

  • Aluminium/ steel/ stainless steel.
  • 2.90 kg.

RoofSafe anchor module intermediate - PVC.

Guidance for specification option:

7241146.

  • Aluminium/ steel/ stainless steel.
  • 0.90 kg.

RoofSafe anchor one person - bitumen single point anchor.

Guidance for specification option:

7241157.

  • Aluminium/ steel/ stainless steel.
  • 2.50 kg.

RoofSafe anchor two person - bitumen single point anchor.

Guidance for specification option:

7241158.

  • Aluminium/ steel/ stainless steel.
  • 4.50 kg.

Anchor line

Stainless steel wire ropes.

Guidance for specification option:

7240211.

  • 8 mm 7 x 7 SS Cable Per M.
  • 0.2 kg/m.
  • Breaking strength 38.7 kN.


Ancillary equipment

Traveller - 8 mm UniGrab and carabiner.

Guidance for specification option:

7234020.

  • Stainless steel.
  • 0.40 kg.
  • Breaking strength 16 kN.

End fixings - 8 mm hex swage tensioner 0.8 kN.

Guidance for specification option:

7240166.

  • Stainless steel.
  • 0.80 kg.
  • Breaking strength 38 kN.

End fixings - 8 mm hex swage toggle.

Guidance for specification option:

7234011.

  • Stainless steel.
  • 0.20 kg.
  • Breaking strength 38 kN.

8 mm hex joiner.

Guidance for specification option:

7234012.

  • Stainless steel.
  • 0.10 kg.
  • Breaking strength 38 kN.

RoofSafe anchor single point eye EMEA.

Guidance for specification option:

7241167.

  • Stainless steel.
  • 0.10 kg.
  • Breaking strength 26 kN.

RoofSafe anchor system eye and pin.

Guidance for specification option:

7241161.

  • Stainless steel.
  • 0.30 kg.
  • Breaking strength >45 kN.

8 mm intermediate bracket.

Guidance for specification option:

7241412.

  • Stainless steel.
  • 0.10 kg.
  • Breaking strength 16 kN.

8 mm variable bracket.

Guidance for specification option:

7241413.

  • Stainless steel.
  • 0.30 kg.
  • Breaking strength 16 kN.

8 mm 90° post mount corner.

Guidance for specification option:

7241408.

  • Stainless steel.
  • 0.40 kg.
  • Breaking strength 19 kN.

8 mm 45° post mount corner.

Guidance for specification option:

7241411.

  • Stainless steel.
  • 0.30 kg.
  • Breaking strength 19 kN.

Base plates

RoofSafe Anchor Baseplate 405 x 405 H.

Guidance for specification option:

7241136.

  • Aluminium.
  • 1.40 kg.
  • Breaking strength 22.2 kN.

RoofSafe Anchor Baseplate 405 x 405 BL.

Guidance for specification option:

7241137.

  • Aluminium.
  • 1.40 kg.
  • Breaking strength 22.2 kN.

RoofSafe Anchor Baseplate 350 x 440 H.

Guidance for specification option:

7241138.

  • Aluminium.
  • 1.25 kg.
  • Breaking strength 22.2 kN.

RoofSafe Anchor Baseplate 350 x 440 BL.

Guidance for specification option:

7241139.

  • Aluminium.
  • 1.30 kg.
  • Breaking strength 22.2 kN.

RoofSafe Anchor Baseplate 550 x 450 BL.

Guidance for specification option:

7241140.

  • Aluminium.
  • 2.10 kg.
  • Breaking strength 22.2 kN.

Legs and bearers

Not required.

RoofSafe Anchor Rivertherm Bearer Pack.

Guidance for specification option:

7241172.

RoofSafe Anchor Speeddeck Bearer Pack.

Guidance for specification option:

7241173.

RoofSafe Anchor Tacdeck Bearer Pack.

Guidance for specification option:

7241174.

RoofSafe Anchor Standing Seam Bearer Pack 600 mm.

Guidance for specification option:

7241175.

Show more

Fixing

Not required.

RoofSafe Anchor Concrete Fixings 150 mm.

Guidance for specification option:

7241180.

RoofSafe Anchor Concrete Fixings 300 mm.

Guidance for specification option:

7241181.

RoofSafe Anchor Concrete Fixings 500 mm.

Guidance for specification option:

7241279.

RoofSafe Anchor Toggles 150 mm.

Guidance for specification option:

7241182.

Show more

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

100

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

EPD

Third party certifications

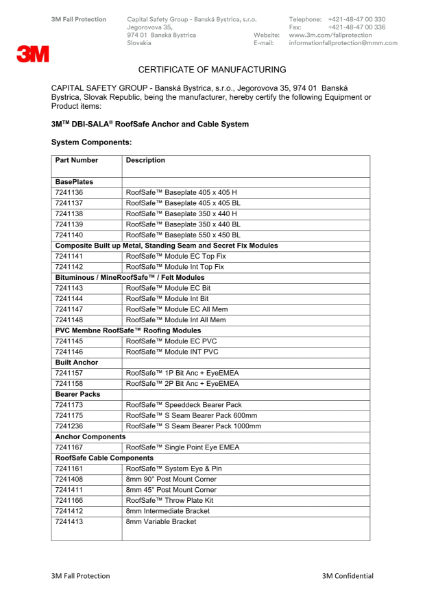

Certificate of Compliance
