Holborn Bollard
Description

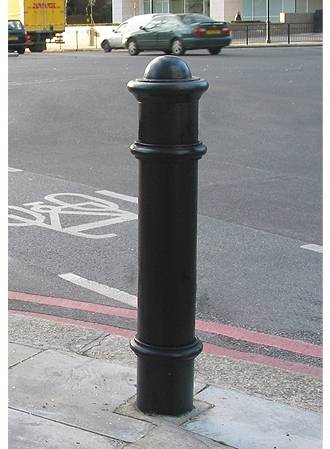

A steel/ cast iron composite bollard designed to replicate Furnitubes’ Cannon all cast iron bollard, with the advantage of being lighter and stronger as the main shaft of the bollard is made from circular hollow-section steel tube.

The bollard has a circular profile and features decorative collars with a domed top manufactured from cast iron.

Holborn bollards are available in diameters of 115 and 170 mm, both in a standard specification and a heavy duty security version featuring a longer root for deeper embedment.

Bespoke commissions:

Most cast iron bollards can now be produced with flat cast sections, suitable for affixing signage, offering the dual benefits of rationalizing different items of street furniture while informing the public and protecting the highway. Contact manufacturer for details.

General information

Uniclass 2015

Pr_20_76_08_10 Carbon steel bollardsPrimary

CAWS

Q50/196 Removable bollards

Q50/30 Street furniture

Specification data - Carbon steel bollards

Product Reference

Holborn Bollard

Type

HOL 510

Standard.

HOL 510 SC

Security.

HOL 520

Major.

HOL 520 SC

Major, security.

Material/ Finish

Steel, galvanized finish

Steel, polyester powder coated finish

Finished to any RAL colour; insert requirement.

Steel, primed finish

Fixing

Base plated

Not available for security (SC) bollards.

Removable

Not available for security (SC) bollards.

Root fixed

Standard.

Socket

Not required

Base plated or Root fixed.

FI115

Large composite socket, HOL 510 or HOL 510 SC only.

SOCKSS

Small steel socket, HOL 510 or HOL 510 SC only.

SOCKLS

Large steel socket, HOL 520 or HOL 520 SC only.

Accessories

None

CHNS

Steel spiked chain link, galvanized.

CHNP

Steel plain chain link, galvanized.

EBAB

Steel M10 eye bolt, bright zinc plated.

SLNK

Steel split link, galvanized.

TAPE C

Red/ white chevron reflective tape.

TAPE R

Red reflective tape.

TAPE W

White reflective tape.

TAPE Y

Yellow reflective tape.

Product Options

Technical characteristics:

- HOL 510:

  • Above ground: 1000 mm.
  • Below ground: 285 mm.
  • Diameter: 115 mm.
  • Weight: 23 kg.

- HOL 510 SC:

  • Above ground: 1000 mm.
  • Below ground: 600 mm.
  • Diameter: 115 mm.
  • Weight: 30 kg.

- HOL 520:

  • Above ground: 1000 mm.
  • Below ground: 320 mm.
  • Diameter: 170 mm.
  • Weight: 40 kg.

- HOL 520 SC:

  • Above ground: 1000 mm.
  • Below ground: 600 mm.
  • Diameter: 170 mm.
  • Weight: 45 kg.

Material/ Finish:

  • Cast iron collars/ top: Primed finish as standard.
  • It is recommended that top coats are applied on site after installation on primed products.

Socket:

  • Standard steel socket hinge plate for locking with an FB14 padlock or similar.
  • F1 series sockets can accommodate standard size circular bollards, or the bollards can include a welded on circular spigot for large diameter circular bollards and other shapes, such as square.
