Description

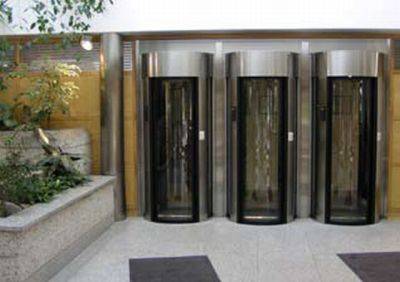

Motorized security booth for internal use. An intercom is mounted as standard on all models.

General information
Material

Casework: 40 x 10 x 3 mm RHS carbon steel

Cladding: 4 mm carbon steel, wet spray painted, textured finish to Gunnebo Entrance Control Ltd RAL colour selection

Uniclass 2015
Automatic revolving doorsets (Pr_30_59_24_04)Primary
Specification data - Automatic revolving doorsets
Product Reference

HiSec HS6B

Bullet proof glass.

HiSec HS6BM

Bullet proof glass and metal detection.

HiSec HS6L

Safety glass.

HiSec HS6LM

Safety glass and metal detection.

HiSec HS6SQB

Square booth, bullet proof glass.

HiSec HS6SQBM

Square booth, bullet proof glass and metal detection.

HiSec HS6SQL

Square booth, safety glass.

HiSec HS6SQLM

Square booth, safety glass and metal detection.

HiSec HS9B

Bullet proof glass.

HiSec HS9BM

Bullet proof glass and metal detection.

HiSec HS9L

Safety glass.

HiSec HS9LM

Safety glass and metal detection.

Casework

Carbon steel

Standard.

Stainless steel

Colour

RAL 3000

Red.

RAL 5010

Blue.

RAL 7001

Grey.

RAL 8019

Brown.

RAL 9005

Black.

Accessories

None

Card reader mounting

Push button control

Standard product features

Material:

  • Casework: 40 x 10 x 3 mm RHS carbon steel.
  • Cladding: 4 mm carbon steel, wet spray painted, textured finish to Gunnebo Entrance Control Ltd RAL colour selection.

Power supply:

230V AC 50/ 60Hz.

Power failure:

In the event of a power failure, isolation or after the BBU has been depleted, the outer, un-secure door will fail safe, i.e. un-locked and can be manually pushed open. The inner, secure door will fail lock and is held in place via a lever system situated behind a locked panel above the door on the secure side of the installation. The inner door can be manually opened by rotating a knob located behind the lockable service panel in the top mechanism section of the booth.

Safety:

Both leading and trailing door edges and framework are fitted with pneumatic safety edges that reverse the motor to re-open the door upon detection of an obstruction.

Product Options

Product reference:

  • HS6L/ HS6SQL/ HS9L: Electrically controlled in both directions, 13 mm three ply safety glass, weight sensing and internal light and remote console.
  • HS6LM/ HS6SQLM/ HS9LM: Electrically controlled in both directions, 13 mm three ply safety glass, CEIA PN7/ 8 metal detection, weight sensing, and internal light and remote console.
  • HS6B/ HS6SGB/ HS9B Electrically controlled in both directions, 27 mm three ply bullet proof glass, weight sensing and internal light and remote console.
  • HS6BM/ HS6SQBM/ HS9BM Electrically controlled in both directions, 27 mm three ply bullet proof glass, CEIA PN7/ 8 metal detection, weight sensing and internal light and remote console.

Metal detection:

  • CEIA PN7: Should an attempt be made to enter the booth with a weapon or metal object similar in size, it will be identified and the secure door will be inhibited from opening. The non-secure door will remain open and the vocal synthesiser will request the occupant to leave the booth. After the occupant has left the door closes and resets the system ready for a new passage.
  • Upgrade to CEIA PN8: Gives greater discrimination, higher sensitivity and higher immunity to external interference.

Colour:

Five standard colours are available. The colour of the moving doors framework is always black.
