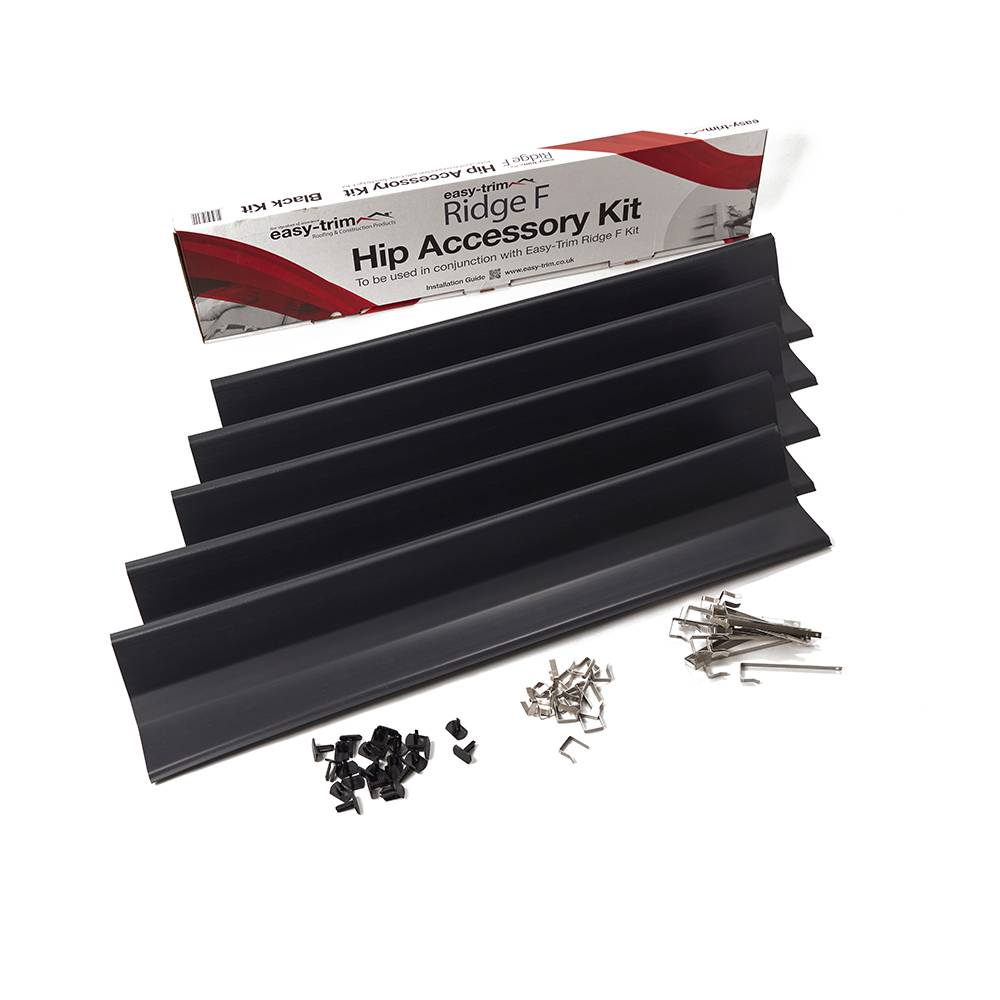

Hip Accessory Kit - Dry Fix Hip Accessory Pack

Verified by manufacturer 1 month ago

Easy-Trim Roofing and Construction Products Ltd

A supplementary, one-pack kit for installations on the roof hip. To be used in conjunction with Ridge F Kits. Containing 6 metres of hip trays, ratchet & centre clips, and tile fixing clips.

Jump to:
01282 930680 Website

Application

To be used in conjunction with Easy-Trim Dry Fix Ridge F Kits along the hip of the roof.


Compatible with:

  • Half-round or angled hip tiles.
  • Clay or concrete hip tiles.



Description

Hip Accessory Kits are used alongside Ridge Kits. Ridge and hip tiles run across the peak of the roof and should be mechanically fixed. Hip trays support the hip tiles along the hip line of the roof, providing an even, level run.


Kit Components:

Hip Trays (Qty 5)

PVC hip trays - 1.2 m x 250 mm wide. To be fitted over the ridge roll, they are designed to provide an even, level run to the hip of a roof.

Hip Clips (20 qty large and 20 qty small)

Used to secure the cut single lap on the hip tiles.

Short Ratchet Clips (Qty 26)

Shorter clips can be used when fitting tiles that sit low on the hip.


Features and Benefits:

  • Easy to install - no special tools required.
  • Water resistant, additional barrier against water ingress.
  • Durable.
  • UV stable.


Quality Standards:

  • Conforms to BS 5534:   Slating & Tiling for Pitched Roofs & Vertical Tiling.
  • Conforms to BS 8612:   Dry Fixed Ridge, Hip & Verge Systems for Slating & Tiling.
  • Conforms to BS 5250:   For Roof Space Ventilation (Management and Moisture in Buildings).

General information

Color

Black

Material

PVC

Shape

Rectangle

Size

Guidance for specification option:

6 metres.

Length

1200 mm

Width

230 mm

Height

2 mm

Warranty description

Ten year

Uniclass

Pr_35_90_93_12 Clay tile hip fittingsPrimary

CAWS

H60/555 Mortar-bedded and mechanically fixed hips

H60/57 Mortar-bedded and mechanically fixed hips

H60/58 Arris hips

H60/585 Arris hips

H60/59 Bonnet hips

H60/595 Bonnet hips

H61/505 Dry capped hips

H61/525 Mitred hips

H61/535 Lead roll hips

H61/55 Dry capped hips

H61/555 Mortar-bedded and mechanically fixed tile hips

H61/56 Mitred hips

H62/525 Mitred hips

H62/535 Lead roll hips

H62/555 Mortar-bedded and mechanically fixed tile hips

H62/56 Mitred hips

H62/57 Mortar-bedded and mechanically fixed tile hips

H65/505 Dry hips

H65/525 Mitred hips

H65/535 Lead roll hips

H65/55 Dry hips

H65/555 Mortar-bedded and mechanically fixed hips

H65/56 Mitred hips

H65/57 Mortar bedded and mechanically fixed hips

Product range

Dry Fix Solutions

Specification data - Clay tile hip fittings

Standard

To BS 5534, BS 8612 and BS 5250.

Form

Hip accessory kit.

Colour

Grey.

Accessories

Ridge F Plus kits.

Hip Tray

1200 x 250 mm.

Guidance for specification option:

PVC.

Fixings

Hip clips and short ratchet clips.

Guidance for specification option:

Hip Clips (20 qty large and 20 qty small)

  • Used to secure the cut single lap on the hip tiles.

Short Ratchet Clips (Qty 26)

  • Shorter clips can be used when fitting tiles that sit low on the hip.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

Literature

Hip Accessory Kit Datasheets

Hip Accessory Kit Datasheets

Hip Tray Datasheet

Hip Tray Datasheet

Hip Clips Datasheet.

Hip Clips Datasheet.
