  • Suitable for use on fire doors.
  • Suitable for up to maximum adjusted door weight 120 kg.

Description

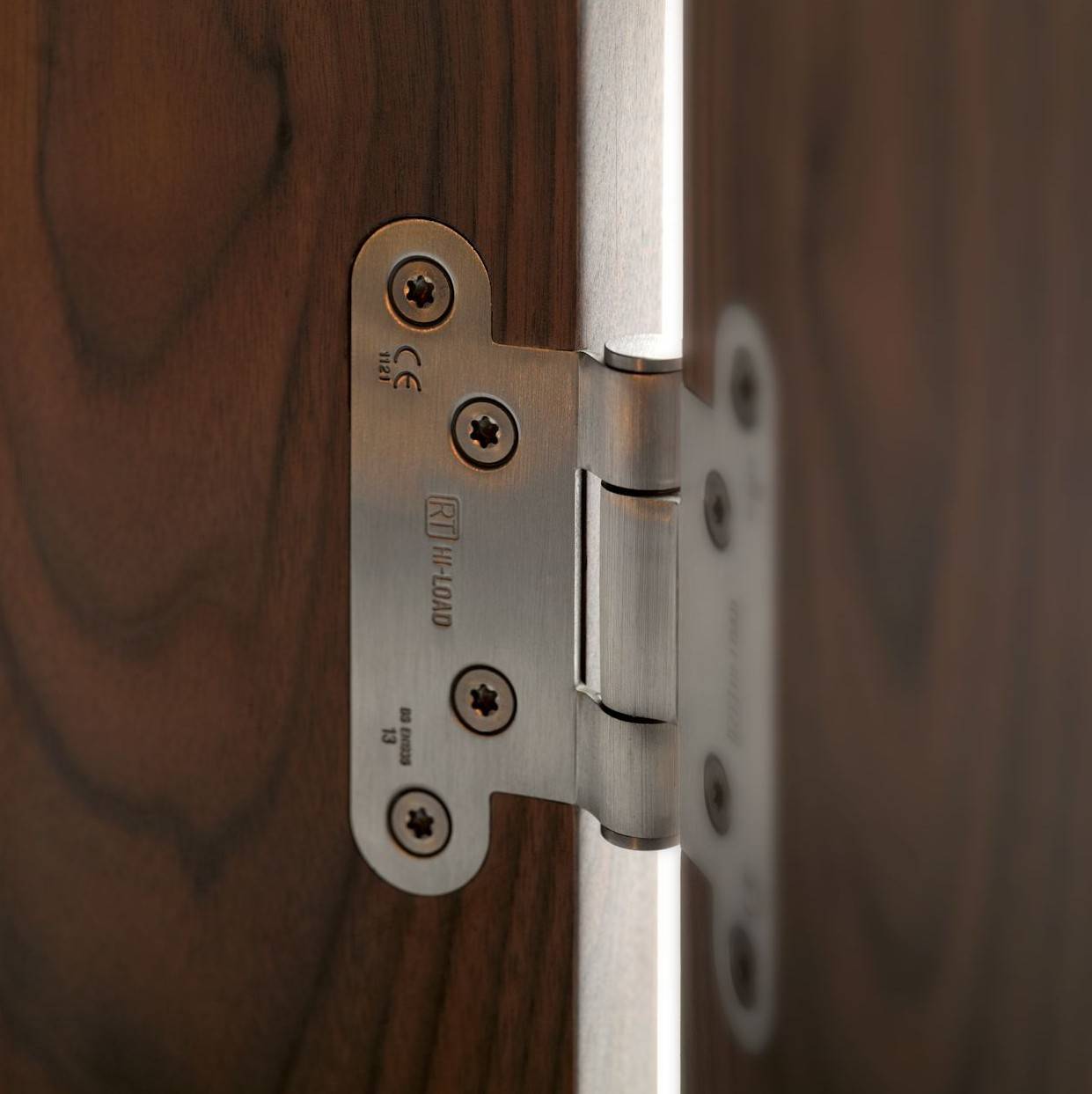

Concealed bearing butterfly butt hinge.


Features and benefits:

  • Maintenance free, guaranteed for 25 years.
  • Minimum door thickness 44 mm.
  • CE marked.
  • To BS EN 1935 Grade 13.
  • Extensive range of finishes.


General information

Color

Silver

Finish

Stainless steel

Material

Stainless steel

Shape

Other

Length

102 mm

Width

92 mm

Height

3.25 mm

Warranty description

25 year

Uniclass

Pr_30_36_36_79 Single axis door hingesPrimary
Pr_30_36_36_09 Butt door hinges

CAWS

P21/8 Door hinges

P21/7 Single-axis door hinges

P21/320 Door hinges

P21/315 Performance specification for single-axis door hinges

P21/310 Single-axis door hinges

Specification data - Single axis door hinges

Standard

To BS EN 1935.

Classification grades (minimum)

-

Category of use

4.

Guidance for specification option:

Severe duty.

Durability

7.

Guidance for specification option:

200 000 test cycles, for medium, heavy and severe duty hinges on doors only.

Test door mass

6.

Guidance for specification option:

120 kg.

Suitability for use on fire and smoke doors

1.

Guidance for specification option:

Suitable for fire/ smoke resistant door assemblies subject to satisfactory assessment of the contribution of the single axis hinge to the fire resistance of the specified fire/ smoke door assemblies.

Corrosion resistance

4.

Guidance for specification option:

Moderate to very high resistance, in accordance with BS EN 1670:2007.

Security, burglar resistance

0.

Guidance for specification option:

Not suitable for use on burglar-resistant door assemblies.

Hinge grade

13.

Form

Concealed bearing butterfly butt hinge.

Size

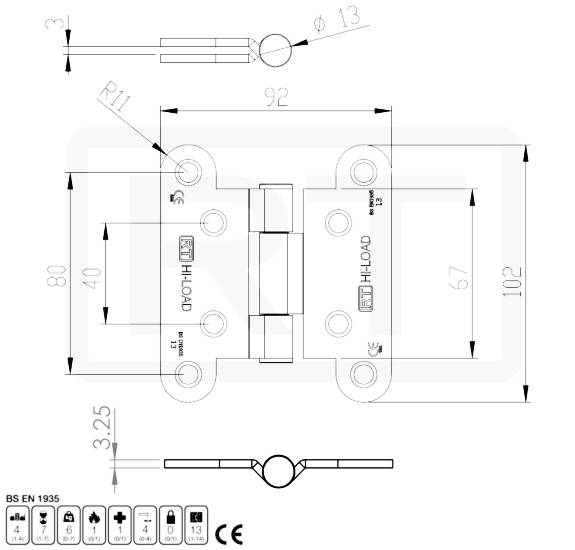

102 x 92 x 3.25 mm.

Material and finish

Stainless steel.

Stainless steel, Grade 1.4401 (316).

Guidance for specification option:

On request, consult manufacturer.

Colour

Silver.

Integral accessories

No.10 x 1 ¼ “ Torx Head (T25) stainless wood screws.

Third-party certification

To CF 215, Certifire accredited.

Accessories

Not required.

HP200 intumescent hinge pads.

Guidance for specification option:

To be fitted with HP207 intumescent hinge pads (suit standard template hole positions), if being installed on fire doors.

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

United Kingdom

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

0 kg CO₂ eq/unit

Self declared

Recyclability

Used as scrap material

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

99 %
