High Speed door - VR Door - Internal And External

Name: High Speed door - VR Door - Internal And External
Brand: fX2agERHTeaMRiY866Zsok
SKU: rDfDdR75jXjYETdhnk14cB

HAG Ltd. - The Door Specialists

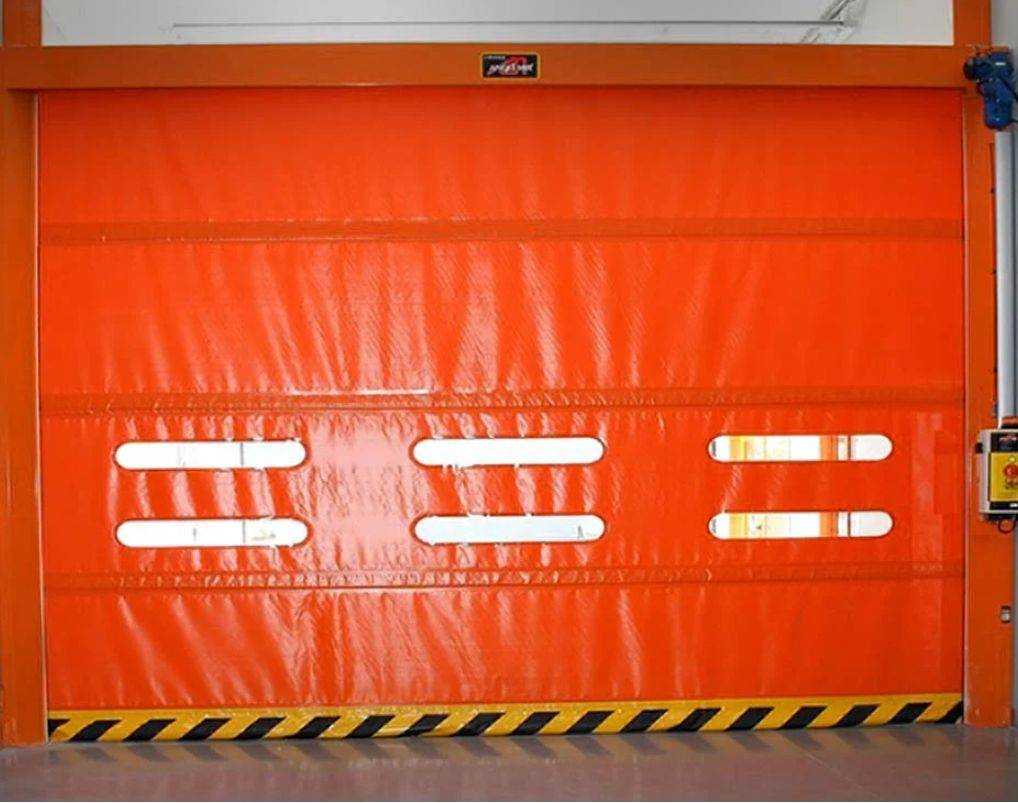

High speed vertical rolling door for internal & external applications. Tested to -30°c to + 70°c. The object has a number of parametric values for Operators, variations and finish.

Jump to:

+44 (0)800 072 3444 www.hag.co.uk

Description

Temperature loss in industrial premises costs businesses thousands of pounds a year, ensuring air leakage is reduced to a minimum is extremely important. The VR Speed Door allows quick entry and exit in a safe and controlled manner. Its lightweight and flexible curtain creates an insulated barrier that is also extremely hard wearing and is temperature tested to -30 to +70°C and a thermal conductivity of 0.045 W/mK.

The VR rapid roll door is commonly used in food and beverage premises, refrigeration rooms, transport logistics premises, vehicle manufactures, conveyor belts, pharmaceuticals industry, paint rooms, waste sorting, car washes, warehouses and ship yards.

The VR Door is a vertically rolling speed door that is most suited to indoor applications with light air pressure, however due to its wide range of operation, extra adaptations to other environments are possible.

Features:

Rip-proof, double layered metal reinforced PVC vertical door.

Galvanized steel framed structure acts as a frame and as a guide track for the PVC sheet.

All sides are protected by nylon brushes to avoid scratches on canvas when running.

General information

Color	Canvas – Red Ral 3002, Yellow Ral 1003, Green Ral 6026, Blue Europa 95, Anthracite Ral 7016, Window Grey Ral
Features	Vision section, spring steel wind lock with twin roller and tensioning system, soft edge bottom, integrated safety light grille (non contact safety edge)
Uniclass 2015	Pr_30_59_24_38 High-speed doorsetsPrimary
CAWS	L20/570 High speed doors L20/60 Doors

Specification data - High-speed doorsets

Product Reference

VR Speed Door

Fabric colour

Blue Europa 95

RAL 1003, Yellow

RAL 1014, Ivory

RAL 2002, Vermilion

RAL 2004, Orange

RAL 3002, Red

RAL 6026 Green

RAL 7016, Anthracite

RAL 7040, Window Grey

RAL 8016, Brown

RAL 9003, White

RAL 9005, Black

RAL 9006, Grey

RAL 9006, Silver

Accessories

None

Amplifier for induction loops

Antenna

Bottom of curtain painted diagonal yellow and black

Control box with operating buttons

Door frame polyester powder coated

Insert requirements.

Four channels remote control

Frame in stainless steel

Induction loops

Key switch

Opening photocells

Pull cord switch

Radar

Receiver for remote controls

Self correcting curtain safety mechanism

Supports for photocells (aluminium posts)

Two channels remote control

Vision panels

Standard product features

Size (maximum):

5000 x 5000 mm.

Wind resistance:

Standard Class 0: Doors over 4000 x 4000 mm.

Class 1: Doors up to 4000 x 4000 mm.

Canvas weight:

950 g/m².

Opening speed:

Up to 1 m/s (approximate).

Operation:

Single phase electric irreversible geared motor used in conjunction with a heavy duty electric brake and limit switches to allow quick and accurate stopping of the door.

The power of the motor will vary dependent on the size and specification of the door.

In the event of power loss there is a manual operation through either chain or hand crank.

Control panel with open/close/stop push buttons with a built in timer that can be linked to several control devices such as photocells, switches remotes etc.

Product Options

Curtain:

The curtain is a toughed PVC compound that is highly resistant to wearing and tearing. It is reinforced with cross bars connected through high frequency welds to ensure a uniform bond.

Resistance to tearing 70/ 55 daN.

Resistance to breaking 420/ 400 DaN DIN 53354 – ISO 1421.

Safety:

All speed doors are equipped with a safety device on its leading edge to prevent closing on a person/ obstruction and will not make a force on closing greater than 400 N. When obstructed, it will reverse operation to allow safe passage.

A photo cell transceiver emits an infrared light beam across the door entrance to detect moving people or objects and will stop the door from closing if the beam is crossed or reverse operation if in closing operation.
