Vertically Lifting High Speed PVC Door - VL Range - Vertical Lifting Doors

Name: Vertically Lifting High Speed PVC Door - VL Range - Vertical Lifting Doors
Brand: HAG Ltd. - The Door Specialists
SKU: 4xkow31HkUXVCaXC66rsSp

Verified by manufacturer 17 hours ago

HAG Ltd. - The Door Specialists

Product certifications:

ADSA
Certificate type
dhf certificate
Certificate type
UK Conformity Assessed (UKCA)
Certificate type
AkzoNobel
Certificate type

Vertical lifting PVC high-speed doors designed for temperature-controlled environments, compliant with EN 13241 standards and wind load requirements according to EN 12424.

Jump to:

BOS

0800 072 3444 Website

Application

Vertical lifting PVC high speed doors are suiable for interior and exterior usage, including hostile environments (optional extras required).

Commonly used in

food premises
breweries
refrigeration and freezer rooms
transport premises
automotive manufacturers
hospitals,
airports
factories
conveyor belts
pharmaceutical industry
paint rooms
waste sorting
car washes
hangers
warehouses
gantry
cranes

Description

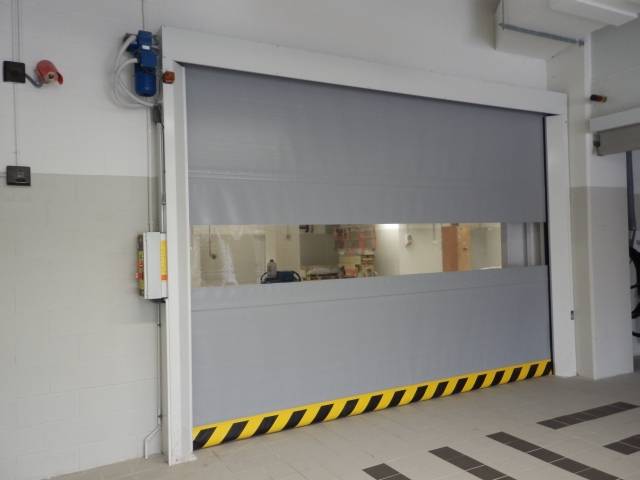

Vertical lifting PVC high-speed doors designed for temperature-controlled rooms, providing both thermal and acoustic insulation where required.

Features and benefits:

Designed for high frequency use.
Electric operation and comprehensive safety features as standard.
Maximum width 20 000 mm.
High wind resistance: able to withstand high wind loads.
Suitable for indoor and exterior applications across a wide range of environments.
Durable and low maintenance: tested to 500 000 cycles.
Opening and closing speed of 1.2 m/s.
Available in a 13 RAL colours with full size see-through panels/mesh.
Printable to carry logos, information and warnings.
The VL high speed door is a vertically stacking door suited to outdoor applications having to withstand high air streams and windy conditions, the adaptable design means it can be altered to many site requirements.
High-performance guide system for superior wind resistance
Dependable inline drive system with built-in safety brake
Minimizes heat loss
Controls odours
Prevents vermin intrusion
Contains refuse effectively

General information

Color	White Blue Yellow Orange Grey Green Red Black Show more
Finish	Smooth Guidance for specification option: Curtain. Galvanized Guidance for specification option: Frame and related components. Powder-coated Guidance for specification option: Frame and related components.
Material	PVC Guidance for specification option: Curtain. Steel Guidance for specification option: Frame.
Shape	Rectangle Square
Width	20000 mm Guidance for specification option: Maximum. Bespoke
Height	15000 mm Guidance for specification option: Maximum. Bespoke

Uniclass	Pr_30_59_24_38 High-speed doorsetsPrimary
CAWS	L20/570 High-speed doors

Product range	Speed Doors and Thermal Doors

Specification data - High-speed doorsets

Speed (minimum)	-
Opening	1.0 m/s.
Closing	1.0 m/s.
Format	Fold up.
Arrangement	Guidance for specification option: Insert requirements.
Curtain material	PVC, (0.9 mm-thick; 0.9 kg/m²). Guidance for specification option: Standard. PVC, insulated (3.0 mm-thick; 1.3 kg/m²). Manufacturer guidance Toughened PVC that is highly resistant to wearing and tearing. It is reinforced with cross bars connected through high frequency welds to ensure a uniform bond. Curtain colour specified separately below.
Frame and guides	-
Material	Steel. Guidance for specification option: A reinforced self-bearing galvanised steel frame that supports a steel shaft housing aluminum bearings and drums. The frame connects to the curtain through traction ribbons and brackets. All sides are protected by nylon brushes to avoid scratches on canvas when running.
Finish and colour	Galvanized. Guidance for specification option: Standard. Powder-coated, colour to match curtain. Powder-coated, colour Guidance for specification option: Insert colour requirements, any RAL. Stainless steel, AISI 304. Stainless steel, AISI 316.
Operation	Automatic with hand-crank emergency operation. Guidance for specification option: Standard. Automatic with counter-balance with automatic emergency operation. Automatic with counter-balance with on-demand emergency operation. Automatic with uninteruptable power supply (UPS) emergency operation.
Accessories	None. Self-correcting curtain safety mechanism. Control box with operating buttons. Bottom of curtain painted diagonal yellow and black. Opening photocells. Supports for photocells (aluminium posts). Radar. Receiver for remote controls. Two channel remote control. Four channel remote control. Amplifier for induction loops. Induction loops. Pull cord switch. Key switch. Manufacturer guidance Optional extras only; see below for specific components with standard/ optional choices e.g. vision panel.

Curtain colour	RAL 9016 Traffic White. RAL 1013 Oyster White. RAL 5015 Sky Blue. RAL 5010 Gentian Blue. RAL 1003 Signal Yellow. RAL 2004 Pure Orange. RAL 7035 Pearl Grey. RAL 7037 Dusty Grey. RAL 7038 Agate Grey. RAL 6026 Green. RAL 3002 Carmine Red. RAL 9005 Jet Black. RAL 9006 White Aluminium. Show more
Clear opening	Guidance for specification option: Insert requirements. Maximum 20 000 x 15 000 mm (width x height). Class of wind resistance as measured by BS EN 12424:2000 up to the following maximum dimensions (width x height): Class 2: 8000 x 8000 mm. Class 3: 5000 x 5000 mm. Class 4: 3000 x 3000 mm.
Vision panels	Transparent PVC, 850 x 300 mm, two rows. Guidance for specification option: Standard size. Transparent PVC, 1100 x 300 mm, one row. Guidance for specification option: Consult manufacturer for options and insert requirements. Mesh, 850 x 300 mm, two rows. Guidance for specification option: For ventilation. Standard size. Mesh, 1100 x 300 mm, one row. Guidance for specification option: For ventilation. Mesh with covers, 850 x 300 mm, two rows. Guidance for specification option: For cold weather. Standard size. Mesh with covers, 1100 x 300 mm, one row. Guidance for specification option: For cold weather. Show more
Custom graphics	Not required. Required. Guidance for specification option: Printable to carry logos, information and warnings: insert requirements.
Roller guide	Galvanized steel (standard). Stainless steel (AISI 304).
Control cabinet	Powder-coated steel to IP55. Guidance for specification option: Standard. Stainless steel AISI 304 to IP55. Stainless steel AISI 316 to IP55. PVC to IP66.
Control system	230 V a.c. single phase logic board with switches. 400 V a.c. three-phase logic board with switches. 230 V a.c. single phase logic board with phase inverters.
Positioning system	Mechanical limit switches. Guidance for specification option: Standard. Absolute encoder. Guidance for specification option: Requires phase inverter control system.
MotorPosition	Frontal, to left-hand side. Frontal, to right-hand side. Lateral, to left-hand side. Guidance for specification option: Standard. Lateral, to right-hand side. Guidance for specification option: Standard. Pendular, to left-hand side. Pendular, to right-hand side. Show more
Drive unit	Three-phase with active brake, to BS EN 12604:2017; IP54. Guidance for specification option: Electric motor used in conjunction with a heavy duty electric brake and limit switches to allow quick and accurate stopping of the door. The power of the motor will vary dependent on the size and specification of the door.
Safety	Infra-red photocells, wireless resistive safety edge, emergency stop button. Guidance for specification option: Standard. Light barrier, microwave radar. Manufacturer guidance An integrated self-monitoring safety light grille in the closing zone is fitted as standard : to a maximum monitoring height of 2500 mm. This provides non-contact safety within the closing zone and renders a safety edge redundant. Operation warning lights operated two seconds prior to opening or closing. All speed doors are equipped with a safety device on its leading edge to prevent closing on a person/ obstruction and will not make a force on closing greater then 400 N. A photo cell transceiver emits an infrared light beam across the door entrance to detect moving people or objects and will stop the door from closing if the beam is crossed or reverse operation if in closing operation. When obstructed, it will reverse operation to allow safe passage.

Sustainability data

Contains Red List materials	No
Country of material origin	United Kingdom
Country of product manufacture	United Kingdom
Material	PVC Guidance for specification option: Curtain. Steel Guidance for specification option: Frame.
Recyclability	50
Recycled content As defined in clause 7.8 of BS EN ISO 14021	5 %
