High Speed Door - Conveyor

High Speed Door - Conveyor

Hart Door Systems Ltd Third party certifications:
  • Health & Safety Accreditation

    Health & Safety Accreditation

    Certificate type

  • QA Certificate

    QA Certificate

    Certificate type

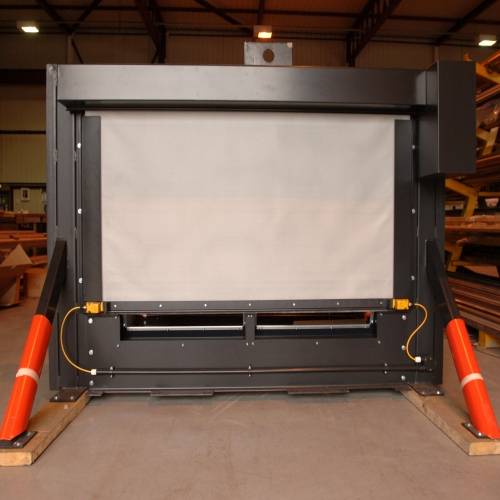

High speed conveyor door. British manufactured fast action door for specialist applications such as high frequency conveyor belt systems.

Jump to:
+44 (0)191 214 0404 www.hartdoors.com

Application

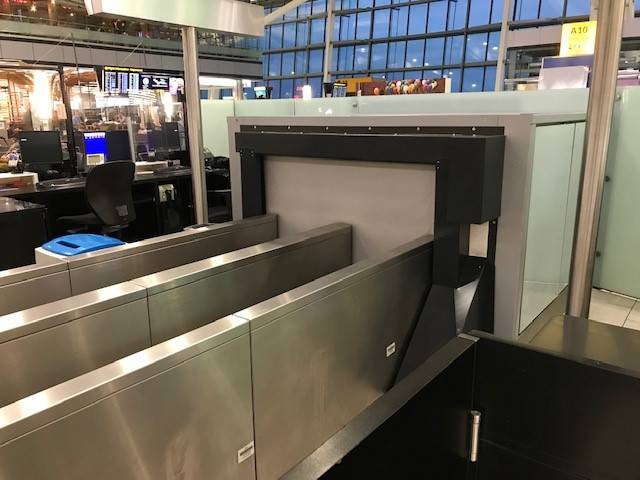

Suited for specialist applications such as high speed secure conveyor systems, providing security and safety between the public area and baggage system mechanics.

Description

High speed conveyor door. Operation is usually via full integration with the conveyor system complete with all the relevant inputs and outputs equipped to deal with virtually any installation. Installation can be dealt with by fully trained electrical engineers.

The control panel conforms to the standard EN 60204-1 and has an external IP rating of 54 and an internal IP rating of 2X.


Features and benefits:

  • High speed operation, approximately one metre per second (opening speed).
  • Designed for very high usage - the test unit alone has achieved 2 500 000 cycles in under six months.
  • Compact design.
  • A control panel which was specifically designed to be integrated into the customer’s safety and operational control system.
  • CE marked.
  • Full backup service.

General information

Color

Blue

Grey

Orange

Red

Yellow

Material

Steel

Galvanized.

PVC

Shape

Rectangle

Size

Up to 4 m.

-

WarrantyDescription

One year

Uniclass

Pr_30_59_24_38 High-speed doorsetsPrimary

CAWS

L20/570 High-speed doors

L20/60 Doors

Specification data - High-speed doorsets Enhanced data

Third-party certification

LPCB assessed/ approved; UL Listed; CE marked.

Loss Prevention Certification Board (LPCB):

Assessed to ISO 9001; approved to LPS 1056 and LPS 1271.

Speed (minimum)

-

Opening

1.0 m/s.

Closing

0.4 m/s.

Format

Roll up.

Arrangement

Face-fitted across opening.

Standard maximum size: 2000 x 2000 mm.

Curtain material

2 mm, 2-ply laterally stiff polyester fabric.

Woven polyester, blue.

Woven polyester, grey.

Woven polyester, red.

Woven polyester, yellow.

Woven polyester, orange.

Fire rated and/ or smoke screen specification.

Frame and guides

-

Material

Steel.

Finish and colour

Galvanized.

Standard for metal hood covers and infills.

Powder coated, colour.

Insert colour requirements for side frames, and for metal hood covers and infills if required.

Stainless steel.

Optional for metal hood covers and infills only.

Operation

Automatic.

The door can be integrated into the customers control system and will stop on a signal as instructed.

Accessories

None.

Self-supporting frame.

The door system is factory built and tested as an assembled unit before dispatch.

Bespoke control panels with plug and play connections.

Available designed to meet individual clients specification requirements. Consult manufacturer for options.

Additional safety systems.

As specified by the client; can be fitted to the door due to the flexibility of the control panel.

Environmental information

Country of product manufacture

United Kingdom

Recyclability

Steel frame and metal components widely recycled.

-
