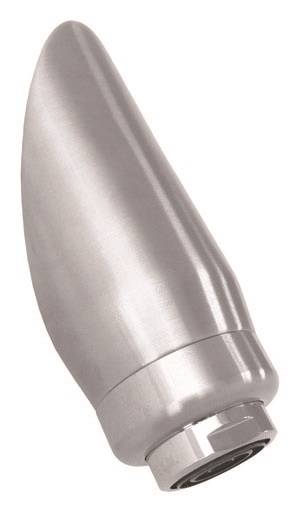

High Security WM-30 Degree Tap Spout - 200 mm BSP
Verified by manufacturer over a year ago
AT07-040
AT07-040
The High Security tap spout has a modern and robust design for the most demanding environments.
Application
- Laboratories.
- Hospitals.
- Schools.
- Universities.
Description
Using DVS tap spouts with a separate control source, including the Tap Control System, provides a range of tap spout solutions for a wide variety of applications. Various settings can be customized quickly and easily from within the control box such as run-times and tap purges. Combining the benefits of no-touch technology with water savings and robust reliable performance, no-touch automatic taps are an ideal choice for washrooms across a wide variety of applications, offering benefits to commercial and public sector environments. Suitable for use by the elderly or disabled and the superior heavy duty construction offers resistance to vandalism and misuse. DVS no-touch taps have been extensively developed and tested to achieve high levels of reliability and consistent performance, combined with attractive design options.
Features and benefits:
- Stainless steel.
- Can be used with or without electronic controls.
- Easy to use – ideal for disabled or elderly.
- High security options available.
- High-security WM 30 degree tap spout.
General information
Color | Grey Guidance for specification option: Stainless steel |
Finish | Brushed Manufacturer guidanceChrome |
Material | Stainless steel Brass |
Shape | Manufacturer guidanceTapered spout at 30 degrees to wall surface. |
Length | 45 mm |
Width | 50 mm |
Height | 90 mm |
Uniclass | |
CAWS | N13/30 Washbasins N13/331 Sinks N13/335 Washbasins |
Product range |
Specification data - Washbasin thermostatic water supply sets
Form | Wall mounted tap spout. |
Materials | |
Body | Brushed stainless steel. |
Finish and colour | Brushed stainless steel. |
Integral accessories | Manufacturer guidanceA wide range of tap control systems, wave-on sensors, tactile switches and other accessories are available to complete the system - consult manufacturer's literature for details. |
Type | High Security WM tap spout - 45°. Guidance for specification option:
|
Controls | AT00-031. Guidance for specification option: Automatic tap battery backup unit. AT00-032. Guidance for specification option: Automatic tap purge controller. AT07-001. Guidance for specification option: Tap control system. |
Controller | Not required. Tap Control System. Guidance for specification option: The tap control system can be used to control mixed water for one or two taps, or to control both hot and cold on a single tap using two sensors. The control system can be used with wave-on or tactile sensors. The tap control system also features built-in purge control option to avoid stagnation. When a user waves their hand past the sensor (or pushes the tactile switch) the control system activates the solenoid valve, the valve will then run for a pre-set time before automatically closing the valve and stopping the tap. Purge controller. Guidance for specification option: The automatic tap purge controller reduces the risk of Legionella by purging the taps if they have not been operated for a predefined time. Purge run times are adjustable and can be set between 5 seconds and 5 minutes. A periodic purge can be switched on or off. |
Battery back-up | Not required. Required. Guidance for specification option: The automatic tap battery backup unit will automatically switch from mains supply to battery in the event of a power failure (comes complete with AT00-024 battery pack). When mains power is restored the unit will switch back to mains supply. |
Length | 113 mm. Guidance for specification option: Long from top. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
