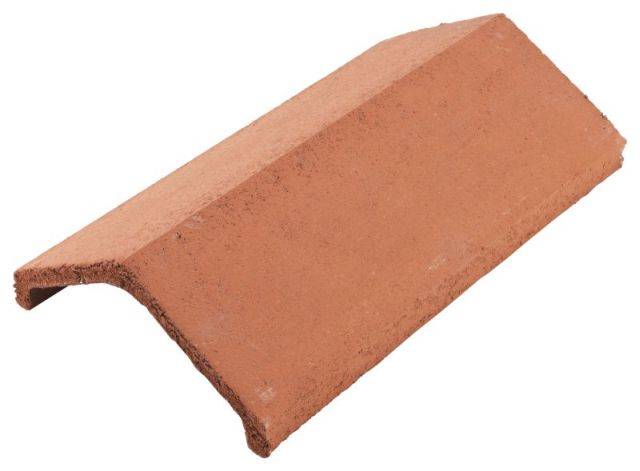

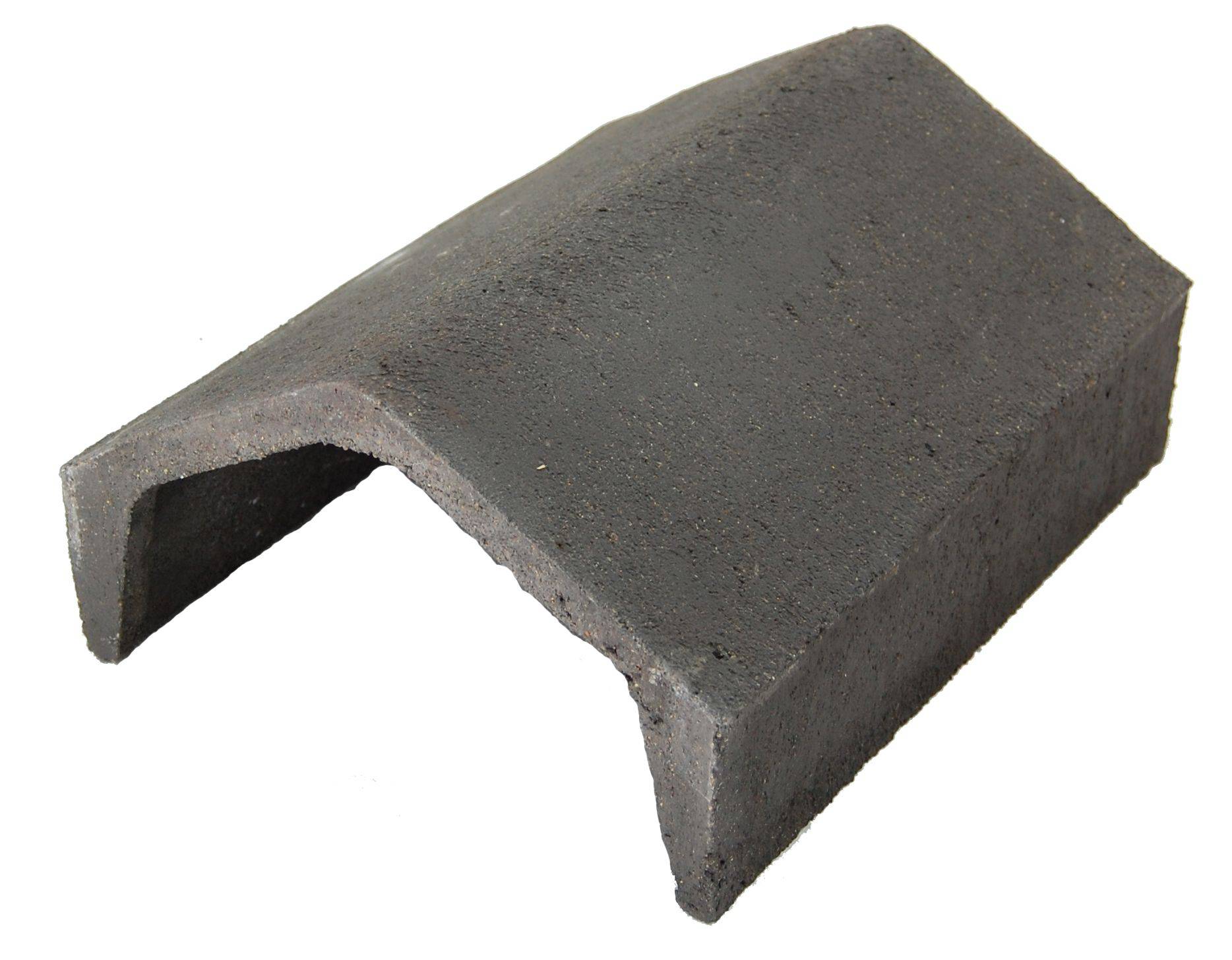

High Pitch Universal Angle Ridge Tile
Description

Concrete angle ridge tiles for use with Monier Redland Slate tile range.

General information

Finish

Dependent on colour

Material

Concrete

Size

Dependant on type

Uniclass 2015

Pr_35_90_93_21 Concrete tile ridge fittingsPrimary

CAWS

H65/740 Mortar bedded and mechanically fixed ridges

H65/77 Mortar bedded and mechanically fixed ridges

H65/770 Dry ventilated mono-ridges

H65/775 Dry mono-ridges

H65/780 Mortar bedded and mechanically fixed mono-ridges

H65/80 Dry ventilated mono-ridges

H65/81 Dry mono-ridges

H65/82 Mortar bedded and mechanically fixed mono-ridges

Specification data - Concrete tile ridge fittings

Product Reference

Hi-Pitch Universal Angle Ridge - 7151

335 x 255 x 153 mm.

Landmark Universal Angle Block-End Monoridge Left Hand - 8325

450 x 154 x 273 mm.

Landmark Universal Angle Block-End Monoridge Right hand - 8326

450 x 154 x 273 mm.

Landmark Universal Angle Block-End Ridge - 8320

450 x 259 x 106 mm.

Landmark Universal Angle Monoridge - 8324

450 x 154 x 273 mm.

Landmark Universal Angle Ridge - 8319

450 x 259 x 106 mm.

Universal Angle Block-End Monoridge Left Hand - 7297

450 x 154 x 273 mm.

Universal Angle Block-End Monoridge Right Hand - 7298

450 x 154 x 273 mm.

Universal Angle Block-End Ridge - 7518

450 x 259 x 106 mm.

Universal Angle Monoridge - 7148

450 x 154 x 273 mm.

Universal Angle Ridge - 7146

450 x 259 x 106 mm.

Colour

Insert requirement or type 'As roof tiles'.

Digital objects
PlatformCompatibleVersionCertified to
IFC
IFC2X3 2 1.3
Revit
Revit 2015 4 1.3
