High Insulation Sliding Industrial Door - Q Door

Verified by manufacturer 20 days ago

HAG Ltd. - The Door Specialists Third party certifications:
  • ADSA

    ADSA

    Certificate type

  • Alcumus SafeContractor

    Alcumus SafeContractor

    Certificate type

  • Made in Britain

    Made in Britain

    Certificate type

  • CE Marking

    Certificate type

  • CHAS

    CHAS

    Certificate type

  • Constructionline

    Constructionline

    Certificate type

  • DoP

    DoP

    Certificate type

  • dhf certificate

    dhf certificate

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

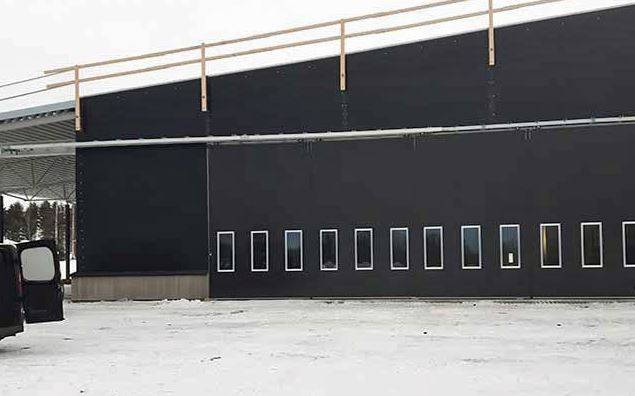

Sliding Q Industrial Door can be a single, double or multiple door section systems that moves parallel to each other in a twin or triple track system.

Jump to:
BOS
0800 072 3444 Website

Application

Sliding Q industrial door suitable for industrial, commercial, public buildings, and cultural or historical settings requiring high levels of thermal protection & security.

  • Airports
  • Train stations
  • Fire stations
  • Hanger bay
  • Ambulance station
  • Warehouse
  • Factories
  • Chemical plant
  • Hospitals
  • Universities
  • Historical sites


Description

The Sliding Q Industrial Door provides a high level of security and insulation (thermal value 1.08 W/m2K). Option of insulated double glazed energy efficient glass within the panels. Crafted from robust and galvanized steel with inserted CFC-free polyurethane foam. It is a sturdy and resilient industrial door system.


Features and benefits:

  • Horizontal sliding operation.
  • Excellent thermal protection.
  • Suitable for high usage applications.
  • High security protection.
  • Customise the Q Door to suit each specification adapting: windows, colour, entry door, operation, manual or electric.

General information

Color

Grey

Other

Finish

Powder-coated

Galvanized

Material

Steel

Polyurethane (PUR)

Shape

Rectangle

Width

Bespoke

Height

5400 mm

Guidance for specification option:

Height manual operation.

5600 mm

Guidance for specification option:

Height powered operation.

Material

Steel

Polyurethane (PUR)

Uniclass

Pr_30_59_24_81 Sliding folding doorsetsPrimary

CAWS

L20/520 Sliding doors

Specification data - Sliding folding doorsets

Grade

External.

Format

Top-hung.

Track system

Double heavy-duty top track.

Triple heavy-duty top track.

Manufacturer guidance

A bottom track and guides are also supplied, which allows the doors to stay in the vertical position and run smoothly

even in high winds.

Door leaf

-

Construction

Robust steel reinforced stretch-frame holding pressure cast polyurethane foam between outer coverings.

Finish

Galvanized.

Powder-coated.

Operation

Manual.

Powered, electric.

Hardware

Locks, hinges, mountings and fittings.

Accessories

Not required.

Vision panels.

Guidance for specification option:

Consult manufacturer and insert requirements.

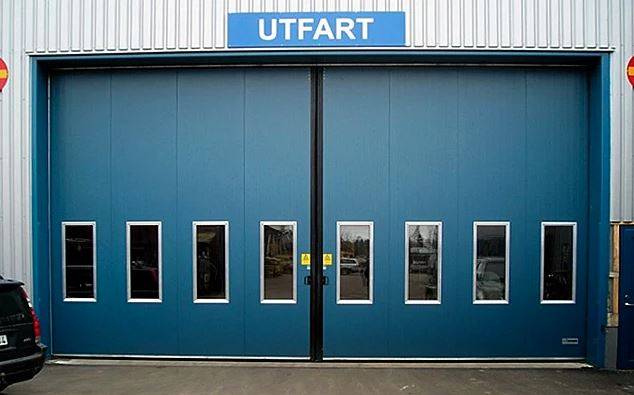

Windows can be placed in variable combinations and sizes in the door panel as an extra option. The standard windows have aluminium frames, with the option of powder coating . All windows are constructed with an open thermal bridge between the inner and outer frame and toughened insulated double glazed glass as standard for insulation. The glass can be hardened, laminated or coated with sunscreen.

Entry door.

Dimensions

Bespoke.

Guidance for specification option:

Consult manufacturer and insert requirements.

Manufacturer guidance

With sections that move in parallel to each other the opening width can possibly be unlimited. Each section is

maximum 11,800 x 5600 mm (W x H) or 40 m² for a manual operation. Powered operation 20,000 x 5400 mm (W x H).

Door frame

3 mm.

4 mm.

9 mm.

Manufacturer guidance

Reinforced stretch-frame.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Steel

Polyurethane (PUR)

Recyclability

yes

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

75 %
