High Insulation Bi Folding Industrial Door - Q Door - Industrial Door

Name: High Insulation Bi Folding Industrial Door - Q Door - Industrial Door
Brand: HAG Ltd. - The Door Specialists
SKU: pjxL5hyKeEdLQhCtMgnsxP

Verified by manufacturer 21 days ago

HAG Ltd. - The Door Specialists

Product certifications:

ADSA
Certificate type
DoP
Certificate type
dhf certificate
Certificate type
DoP
Certificate type

Industrial bi-folding door with high insulation values.

Jump to:

BOS

0800 072 3444 Website

Application

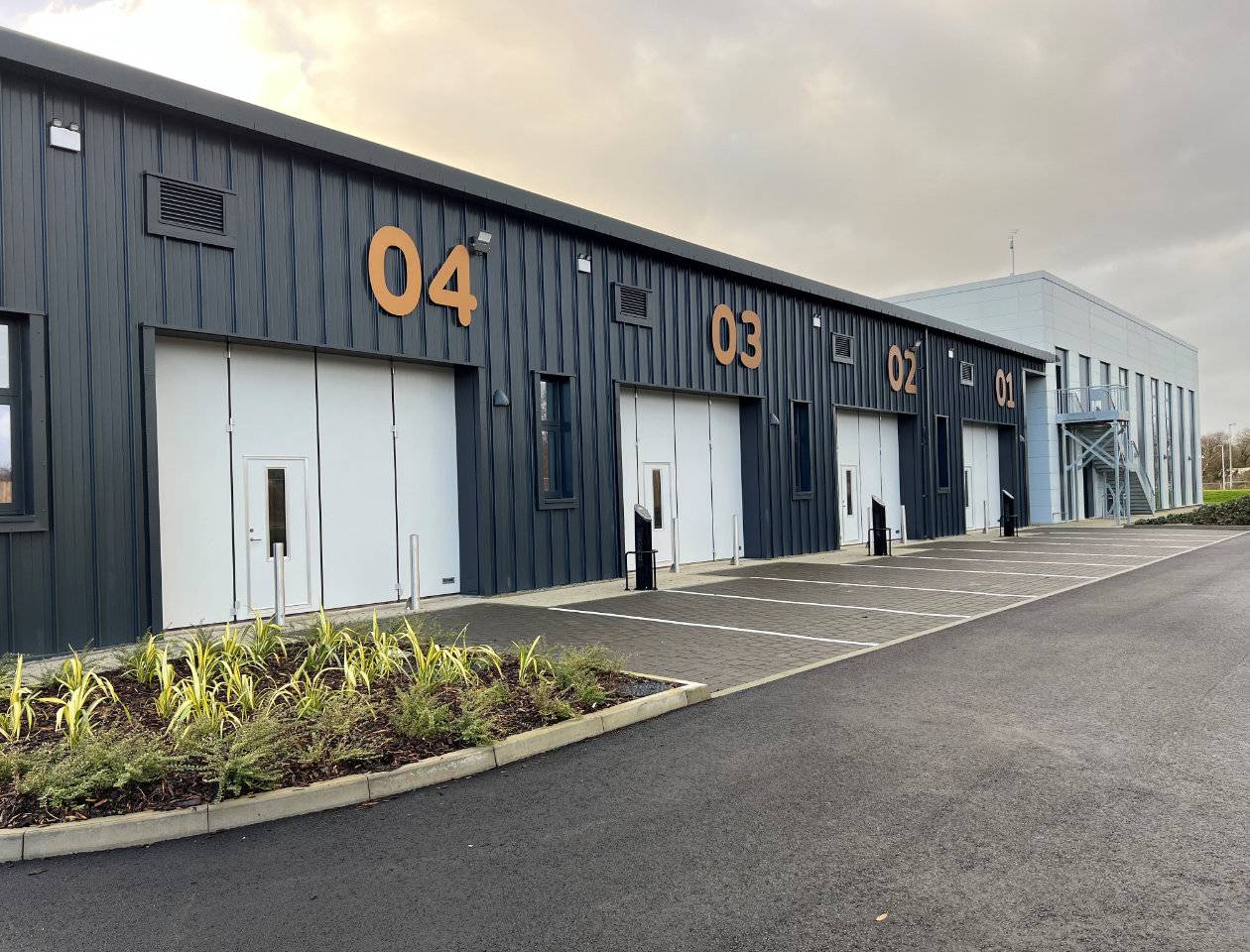

Industrial bi-folding door suitable for industrial, commercial, public buildings, and cultural or historical settings requiring high levels of thermal protection & security.

Airports
Train stations
Fire stations
Hanger bay
Ambulance station
Warehouse
Factories
Chemical plant
Hospitals
Universities
Historical sites

Description

Industrial bi-folding door with high insulation values.

Features and benefits:

Offers a high level of security.
Can be combined with toughened insulated double glazed windows.
The door panel is made up of a robust, steel reinforced stretch-frame, holding pressure cast, CFC-free polyurethane foam between outer coatings.
Galvanized or polyester powder-coated finishes available.
Range of options allows for customization.
Sealing system: 1.5 m³/m²/h to 150 Pa.
Manual or electric operation.
Adjustable hinges.
Resistance to wind load (0 -5) = 5.
Water tightness (0 -3) = 2.
Air permeability(0 -6) = 5.

U-value: best cut approximately 0.22 W/m²K.

U-value of an example door, 5 × 5 m: 0.90 W/m²K.

T-value, example door: 1 m³/h & m²

Metal sheet: 0.6 mm SSAB greencoat.

Enhanced security

It is now possible to specify the Q door with bespoke enhanced security equivalent to SR3 and SR4. This is achieved using an upgraded multi-locking system, heavy duty fixings, frame and corner reinforcement and enhanced hinges (contact manufacturer for the Declaration of Conformity).

Maximum dimensions

21 000 mm width (manual operation).
5500 mm width (electric operation).
6000 mm height for both manual and electric operation.

General information

Finish	Coated Guidance for specification option: Plastisol. Galvanized Powder-coated Guidance for specification option: Polyester powder-coated (PPC).
Material	Steel Foam Guidance for specification option: Polyurethane foam.
Shape	Rectangle
Width	21000 mm
Height	6000 mm

Uniclass	Pr_30_59_24_80 Sliding door and partition setsPrimary Pr_30_59_24_42 Industrial sliding doorsets Pr_30_59_24_81 Sliding folding doorsets
CAWS	L20/530 Sliding folding external doors

Product range	Industrial Doors

Specification data - Sliding door and partition sets

Classification data
Arrangement	Bi-parting opening.
Track system	Inward. Outward.
Door leaves	-
Construction	5 mm-thick steel with anchor profiles reinforcing locks, hinges and mountings. Insulated double glazed windows within the panels. Guidance for specification option: Steel reinforced stretch-frame, with pressure cast polyurethane foam between outer skins.
Finish and colour	Galvanized. Polyester powder-coated, colour. Guidance for specification option: Consult manufacturer for options and insert colour requirements.
Operation	Electrical, three phase. Guidance for specification option: With push button control unit and edge sensors, closing time: 8 seconds. Manual, horizontal sliding.
Accessories	None. Windows. Entry door. Window grille. Door stop.

Sustainability data

Contains Red List materials	No
Country of material origin	United Kingdom
Country of product manufacture	United Kingdom
Material	Steel Foam Guidance for specification option: Polyurethane foam.
Carbon dioxide equivalent
Carbon dioxide equivalent, as defined in BS EN 15804 Self-declared
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/m²) Stage:A1–A3 ('Production stage') Normalised unit : Declared unit : 29.6 Lower emissions
Recyclability	50
Recycled content As defined in clause 7.8 of BS EN ISO 14021	5 %
