High capacity gully assemblies, non-trapped
Description

For use where rapid discharge of large volumes of water is required.

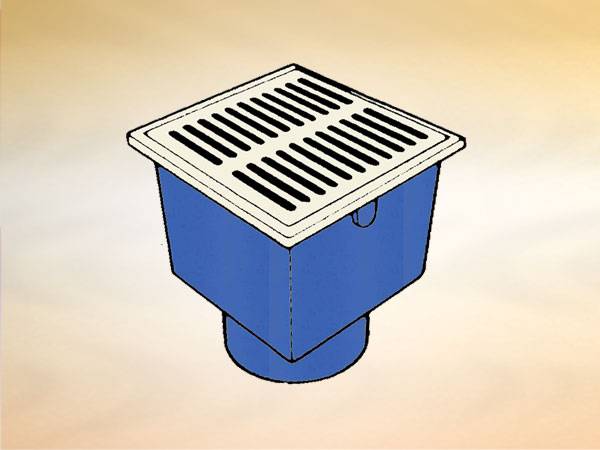

High capacity non-trapped gully assemblies.

General information

Uniclass 2015

Pr_65_52_24_31 Floor gulliesPrimary

CAWS

R11/315 Floor drains

R11/5 Floor drains

Specification data - Floor gullies

Product Reference

High capacity non-trapped gully

Body

Q105 717 mm x 699 mm with 100 mm BS 416 vertical outlet

Q106 717 mm x 699 mm with 150 mm BS 416 vertical outlet

Q301, 295 mm x 295 mm with 4" BSP vertical outlet

Q302, 295 mm x 295 mm with 4" BSP vertical outlet

Standard product features

Q301:

  • Body: Stainless steel.
  • Grating: Ductile iron, sherardized.

Q302:

  • Body: Stainless steel.
  • Grating: Ductile iron, sherardized.

Q301:

  • Body: Cast iron, lacquered.
  • Grating: Nickel bronze.

Q302:

  • Body: Cast iron, plastics coated.
  • Grating: Nickel bronze.

Product Options

Q105:

Membrane clamping collar, suffix C.

Q106:

Membrane clamping collar, suffix C.

Q301:

  • Filter bucket, suffix B.
  • Secondary strainer, suffix D.
  • Flange and membrane clamp, suffix F.

Q302:

  • Filter bucket, suffix B.
  • Secondary strainer, suffix D.
  • Flange and membrane clamp, suffix F.
