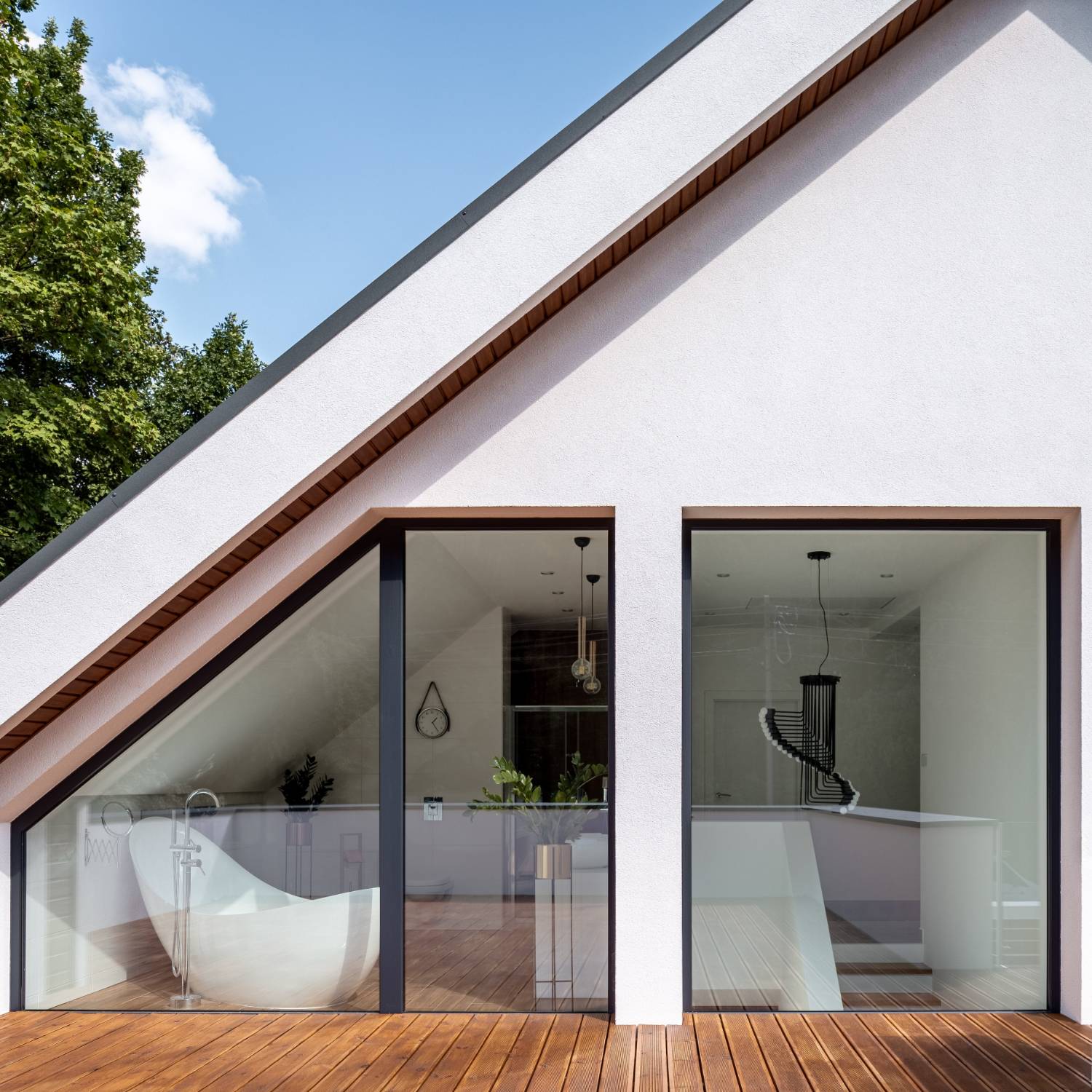

Hidden Handle Tilt and Turn Window
Verified by manufacturer over a year ago
An innovative thermally broken aluminium glazed tilt-and-turn window that features an invisible handle, side hung, tilt only, fixed or french door configuration with tilt function.
Application
Suitable for use in residential and commercial properties.
A highly insulated system for inward-opening windows meets the highest requirements concerning safety and stability.
- All general light-use applications
- Luxury Residential
- New build developments
- Refurbishments
- Extensions
- Commercial
Description
Aluminium inward opening windows with compatibility of double or triple glazed.
Suitable for use where good cleaning opportunities from inside are required, where windows should not open onto a pavement or for basement windows.
Features and benefits:
- Concealed handle (invisible from front view).
- Concealed hinges.
- The tilt function provides effective ventilation.
- Provides cleaning opportunities from the inside.
- Available with safety barrier preparation.
- Hard-wearing aluminium.
- The aluminium sash is highly durable and should not require repainting.
- The sash provides a ventilation gap at the head.
Fixing:
- Fixings must ensure the window is retained securely within the opening without damage or distortion to the window frame.
- Generally, fasteners should be positioned 150 mm from each corner and each mullion/ transom and at centres not exceeding 600 mm.
General information
Color | Black Blue Bronze Brown Copper Manufacturer guidanceStandard powder-coat colours are RAL 7016M Anthracite Grey Matt, RAL 9005M Jet Black Matt and RAL 9010G Pure White Gloss. |
Finish | Powder-coated Guidance for specification option: RAL finish and wood effect. Anodized |
Material | Aluminium |
Shape | Rectangle Triangle Diamond Square |
Length | Bespoke |
Width | Bespoke Manufacturer guidanceWidth limits 620–1300 mm. |
Height | Bespoke Manufacturer guidanceHeight limits 700–2400 mm. |
Warranty description | Ten year |
Uniclass | |
CAWS | L10/25 Aluminium windows L10/330 Aluminium windows |
Specification data - Aluminium window units
Dimensions and configurations | Manufacturer guidanceRefer to a drawing or schedule. General
Varaitions
|
Product performance | |
Weather performance | |
Air permeability | Class 4.Manufacturer guidanceReference test: 1.23 x 1.48 m, 1 sash. |
Watertightness | Class E1500.Manufacturer guidanceReference test: 1.23 x 1.48 m, 1 sash. |
Resistance to wind load | Class C5.Manufacturer guidanceReference test: 1.23 x 1.48 m, 1 sash. |
Environmental | |
Acoustic performance rating | Rw 45 dB. |
Thermal | |
Whole window U-value | 1.0 W/m²K. |
Frame | |
Finish as delivered | |
Coating | Powder-coated.Wood effect powder-coating.Anodized.Manufacturer guidancePowder-coated finish:
|
Colour | RAL 7016M.Guidance for specification option: Powder-coated, Anthracite grey, matt. RAL 9005M.Guidance for specification option: Powder-coated, Black, matt. RAL 9010G.Guidance for specification option: Powder-coated, Pure white, gloss. RAL.Guidance for specification option:
Wood effect powder-coating, pine.Wood effect powder-coating, oak.Wood effect powder-coating, cherry wood.Wood effect powder-coating, sapele.Wood effect powder-coating, African walnut.Wood effect powder-coating, walnut.Wood effect powder-coating, chestnut.Wood effect powder-coating, white wood.Silver brushed.Guidance for specification option: Anodized. Silver rough brushed.Guidance for specification option: Anodized. Bright silver.Guidance for specification option: Anodized. Matte silver.Guidance for specification option: Anodized. Brushed steel.Guidance for specification option: Anodized. Rough brushed steel.Guidance for specification option: Anodized. Brushed champagne re-polished.Guidance for specification option: Anodized. Bright gold.Guidance for specification option: Anodized. Brushed inox re-polished.Guidance for specification option: Anodized. Stainless steel.Guidance for specification option: Anodized. Rough brushed ivory re-polished.Guidance for specification option: Anodized. Brushed bronze.Guidance for specification option: Anodized. Rough brushed bronze and re-polished.Guidance for specification option: Anodized. Rough brushed copper re-polished.Guidance for specification option: Anodized. Rough brushed Bordeaux re-polished.Guidance for specification option: Anodized. Rough brushed green.Guidance for specification option: Anodized. Rough brushed blue re-polished.Guidance for specification option: Anodized. Rough brushed grey re-polished.Guidance for specification option: Anodized. Matte black.Guidance for specification option: Anodized. |
Film thickness (minimum) | Manufacturer guidanceAnodized aluminium
Insert requirements. |
Glazing or infill | |
Requirements | Manufacturer guidanceMinimum 22 mm to maximum 35 mm. Consult manufacturer and insert requirements. |
Operation | |
Type | Manual, tilt and turn.Manual, tilt only.Manual, side hung. |
Electrical supply | Not required. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Spain |
Country of product manufacture | United Kingdom |
Recyclability | Glass and aluminium 100% recyclable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 40 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
