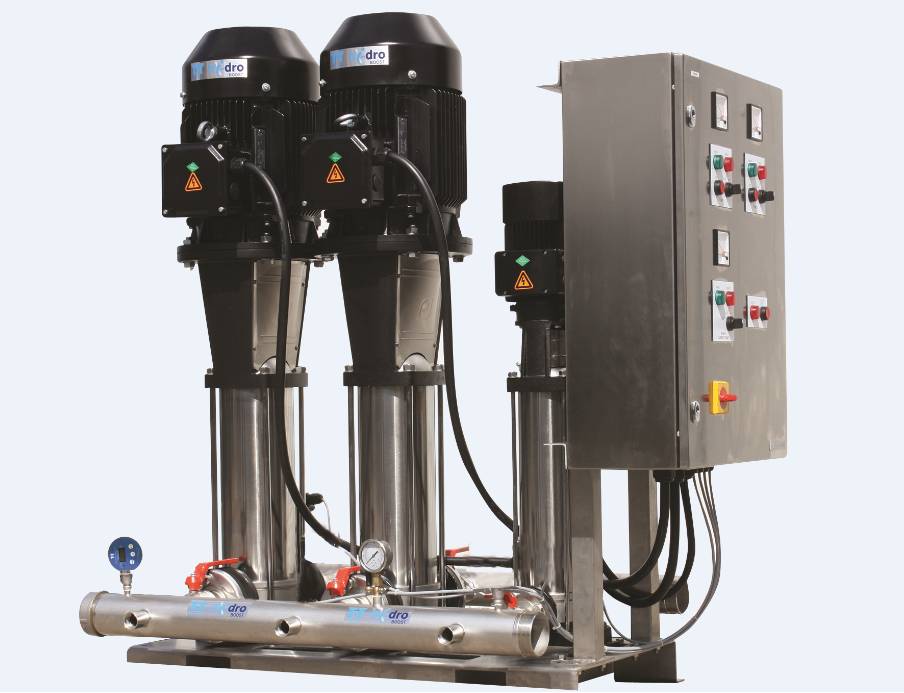

Hi-Dro Boost® Dual (DA)

Application

Cooling water systems; municipal water supply and boosting; domestic water supply; irrigation; general industrial services; washing plants; boiler feed and condensate system; water treatment

Description

A comprehensive range of fixed and variable speed multiple clean water booster sets, designed and manufactured to provide both the required flow and water pressure.


Features and benefits:


  • Designed for transfer and pressure boosting of hot and cold water systems.
  • Maintains and regulates constant water pressure throughout your application.
  • Controlled via either mechanical pressure switches for fixed speed applications or the 'Vasco' variable speed control drive to maintain a constant pressure level during varying flow rate demand.
  • Manufactured using the latest pump technology from the our range of clean water pumps.
  • Assembled using stainless steel suction and delivery manifolds
  • WRAS compliant components.
  • Header tanks are available on request.
  • Quality assured.


Also available as a triple pump model (specified separately).

General information

Uniclass 2015

Pr_65_53_86_66 Pressure booster pumpsPrimary

CAWS

R18/310 Private packaged pumping stations

Specification data - Pressure booster pumps Enhanced data

General requirements

Pumps generally.

Duties

-

Operation

Duty and assist.

Flow rate

Insert requirements. Once the required head and flow rate are provided, the manufacturer will be able to recommend the most suitable system.

Working head

Insert requirements. Once the required head and flow rate are provided, the manufacturer will be able to recommend the most suitable system.

-

Motor

-

Nominal voltage

Single phase 230 V a.c.

Three phase 400 V a.c.

Frequency

50 Hz.

60 Hz.

Pumps

-

Arrangement

Manufacturer's standard.

Number

2.

Control panel mounting

Manufacturer's standard.

Accessories

None.

Header tanks.

Consult manufacturer for details.

Product Reference

Hi-Dro Boost® Dual (DA), fixed speed

Hi-Dro Boost® Dual (DA), variable speed
