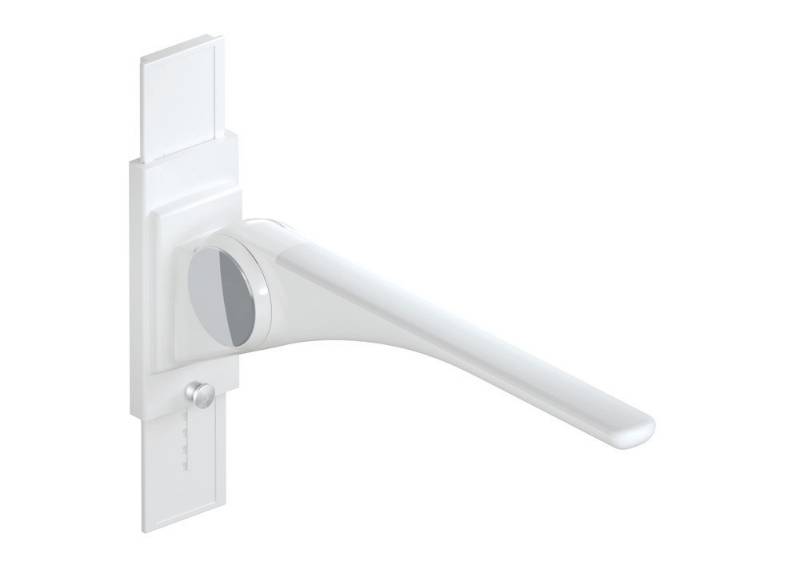

HEWI Hinged Support Rail 880 mm (height adjustable)
Verified by manufacturer 1 month ago
802.50.40960 DR
802.50.40960 DR
Hinged support rail with height adjustment.
Application
Gripping and support aid.
Description
HEWI hinged support rail; cantilever arm made of aluminium, powder-coated, glossy with plastic grip pad, with high-gloss chrome-plated design elements, high-quality plastic surface and scratch-resistant powder-coating.
Simple assembly due to separate installation of the height-adjustable plate.
Produced in accordance with Regulation (EU) 2017/745 on medical devices.
Features and benefits:
- Projection 850 mm.
- Weight capacity up to 100 kg.
- Non-slip and ergonomic grip pad; 58 mm wide.
- Simple assembly due to separate installation of the height-adjustable plate (adjustment range 200 mm).
- Concealed, non-corrosive and tested HEWI fixing material for different wall systems (must be ordered separately).
- Sealing tape for sealing the fixing points is included in the scope of supply.
- Easily folds up and down due to spring-loaded hinges.
General information
Color | Black Grey White |
Finish | Powder-coated Matt Gloss |
Material | Aluminium |
Length | 880 mm |
Width | 153 mm |
Height | 530 mm |
Uniclass | |
CAWS | N13/69 Support rails and grab bars N13/436 Handrails and grab bars |
Specification data - Support rails
Form | Hinged. |
Diameter | 36 mm. |
Materials | |
Body | Aluminium. |
Finish and colour | Anthracite high gloss, anthracite matt. |
Projection | 880 mm. |
Fixings | Fixing material BM10.2. Fixing material BM 11.2. Fixing material BM12.2. Fixing material BM13.2. Fixing material BM17.2. Manufacturer guidanceConcealed, non-corrosive and tested HEWI fixing material for different wall systems (must be ordered separately). Sealing tape for sealing the fixing points is included in the scope of supply. |
Width | 153 mm. |
Height | 530 mm. |
Accessories | Not required. Upgrade kit shelf 802.50.01360 ED. Upgrade kit WC flushing mechanism (radio-controlled) 802.50.06360 SD. Upgrade kit walking aid holder 802.50.01260 ED. Upgrade kit WC flushing mechanism (radio-controlled) 802.50.06260 SD. |
