Application

For horizontal use in floor and roof construction.

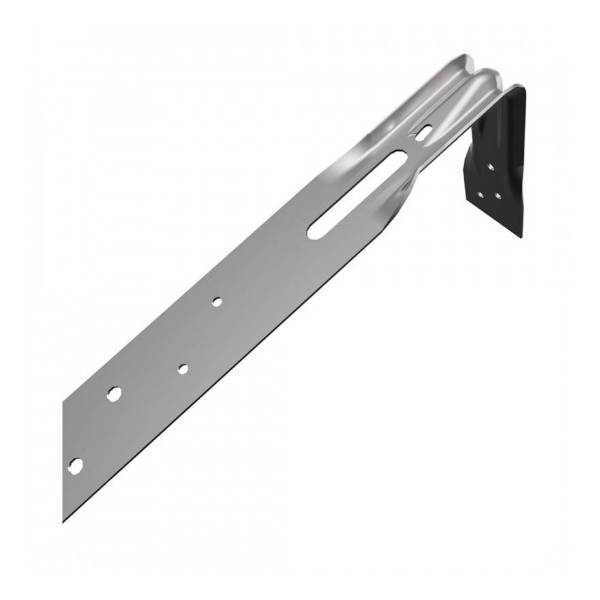

Description

A direct replacement for traditional restraint straps, the design of these lightweight straps allows ease of handling and installation whilst maintaining the structural strength and robustness of much heavier weight types.


The HES (heavy engineered strap) replace the traditional heavy (30 x 5 mm) restraint straps in roof and floor construction.


Reduced thickness allows the HES strap to span the bottom chords of trusses and over floor joists without the need for notching.

HES straps are less than 40% of the weight, quicker to fit, and overcome many fixing problems associated with traditional heavy straps.


Features and benefits:

  • Formed edge design gives additional strength on bend.
  • Quicker to install - can fit over top of floor joists and truss bottom chords.
  • Easier to course with blockwork.
  • No need to notch joists.
  • Complies with BS EN 845-1.
  • CE marked.

General information

Color

Silver

Finish

Galvanized

Material

Steel

Shape

Other

Length

600 mm

800 mm

1000 mm

1200 mm

1500 mm

Width

38 mm

Height

1.2 mm

Uniclass

Pr_20_85_84_13 Carbon steel lateral restraint strapsPrimary

Specification data - Carbon steel lateral restraint straps

Standard

To BS EN 845-1.

Form of lateral restraint strap

Bent.

Corrosion protection

Galvanized.

Dimensions

-

Length

Overall length 600 mm; bent at 100 mm.

Guidance for specification option:

HES06B10.

Overall length 800 mm; bent at 100 mm.

Guidance for specification option:

HES08B10.

Overall length 1000 mm; bent at 100 mm.

Guidance for specification option:

HES10B10.

Overall length 1200 mm; bent at 100 mm.

Guidance for specification option:

HES12B10.

Overall length 1500 mm; bent at 100 mm.

Guidance for specification option:

HES15B10.

Cross section

38 x 1.2 mm.
