Heritage 2800 Tilt & Turn - TT3 Opener/Opener

Name: Heritage 2800 Tilt & Turn - TT3 Opener/Opener
Brand: Deceuninck Ltd
SKU: cd3drZW8xLAQEnJyWJLya4

Verified by manufacturer over a year ago

Deceuninck Ltd

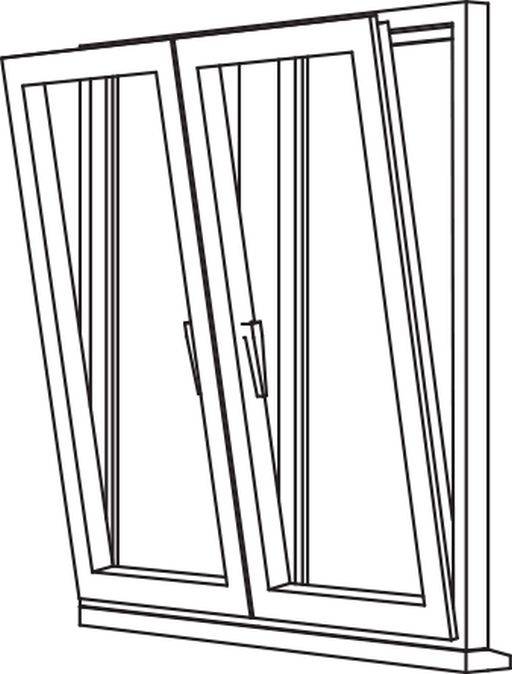

Opening light next to an opening light style window with a decorative design frame.

Jump to:

BOS

+44 (0)1249 816969 Website

Application

Suitable for commercial projects.

Description

PVC-U tilt & turn windows, available in range of styles in three standard finishes.

Years of research and development has resulted in a technically advanced system ideal for commercial projects. With two sash sizes (85 mm & 110 mm), two frame sizes (55 mm & 70 mm), and a slim (70 mm) intermediate (85 mm) or large (110 mm) transom/mullion option.

Features and benefits:

The Heritage 2800 is a window and door system that offers the best in weather-proofing technology, energy efficiency and security.
The system is available in 26 laminate colourways from stock providing the ultimate convenience regarding supply.
BSI Kitemark.
Environmental product declaration: EPD-QKE-20150313-IBG1-EN.

General information

Shape	Rectangle
Color	White Guidance for specification option: RAL 9016 (standard). Other Guidance for specification option: Laminated foil, Decoroc colour (RAL).
Material	PVC-U
Warranty description	Guidance for specification option: Manufacturer warranty.
Size	Guidance for specification option: As drawing. Single tilt and turn 1500 mm wide x 1500 mm high. Single fixed light: 3000 mm wide x 3000 mm high (maximum perimeter: 8000 mm).

Uniclass	Pr_30_59_98_92 Unplasticized polyvinyl chloride (PVC-U) window unitsPrimary
CAWS	L10/30 PVC-U windows L10/350 PVC-U windows

Product range	Tilt & Turn Window / Decorative (PVC-U)

Specification data - Unplasticized polyvinyl chloride (PVC-U) window units

Standard	To BS 7412.
Third-party certification	BSI Kitemark.
Dimensions and configurations	Dual tilt and turn opening lights.
Product performance	-
Fire performance	-
Fire egress	Required. Guidance for specification option: Emergency egress is an inherent characteristic of tilt & turn style hardware.
Weather performance	-
UK exposure category	To BS 6375, Class A5 (2000 Pa).
Air permeability	To BS 6375, Class 4 (600 Pa).
Watertightness	To BS 6375, Class 8A (450 Pa).
Resistance to wind load	To BS 6375, Class A5 (2000 Pa).
Durability	-
Operation and strength characteristics	Operating forces Class 1, resistance to static torsion Class 3 and racking Class 3.
Loadbearing capacity of safety devices	Maco Multi-Trend (tilt mode, 350 N). Maco Multi-Matic (tilt mode, 350 N). Segenia Favorit (tilt mode, 350 N). Roto Designo (tilt mode, 350 N).
Safety	-
Security level	To PAS 24.
Environmental	-
Background ventilation	Proprietary ventilation device.
Acoustic performance rating	32—43 dB.
Thermal	-
Whole window U-value	Guidance for specification option: Whole window ‘U’ values comply with Approved Document L (Eng/Wales) Section 6 (Scotland) of the Building Regulations. Lower ‘U’ values can be achieved. Window energy ratings C to A+ can be achieved.
British Fenestration Rating Council Window Energy Rating	A+ to C.
Frame	-
Profile	To BS EN 12608. Guidance for specification option: Hollow PVC-U decorative profile manufactured in accordance with BS EN 12608.
Reinforcement	Galvanized steel.
Colour and texture	White - RAL 9016. Guidance for specification option: Standard. Laminated foil. Decoroc colour (RAL).
Ventilator	Proprietary ventilation device.
Glazing or infill	-
Requirements	Double glazed. Single glazed. Triple glazed.
Hardware	Guidance for specification option: System accepts all popular hardware, including concealed hinge types. Full depth euro-groove. Secure location of hardware.
Operation	-
Type	Manual.
Fixing features	Through frame fasteners. Fixing lug.

Size	As drawing. Guidance for specification option: Single tilt and turn 1500 mm wide x 1500 mm high. Single fixed light: 3000 mm wide x 3000 mm high (maximum perimeter: 8000 mm).
Outer frame size	55 mm. 70 mm. 85 mm.
Transoms and mullions size	70 mm. 85 mm. 110 mm.
Joints	Cruciform joints. Mechanically joined. 'T' joints. Welded.
Sash	Standard. Heavy duty.
Couplings	Not required. 3310 Slimline coupler. 3312 Slimline coupler. 3197 Slimline coupler. 3705 Reinforced coupler. 6975 Reinforced coupler. Lightweight. Structural. Show more
Extensions	Not required. 2455 Head section. Guidance for specification option: Accommodates proprietary trickle ventilators. 3300 Add-on. Guidance for specification option: Allows additional clearance for hinges. 3301 Add-on. Guidance for specification option: Accommodates proprietary trickle ventilators. 3302 Add-on. Guidance for specification option: Frame build-up for conservatories. 3336 Add-on. Guidance for specification option: Provides clearance over existing plaster or tiling. 3340 Add-on. Guidance for specification option: Reveal liner adaptor. Show more
Architraves	Not required. 1044 D-mould. Guidance for specification option: 30 mm wide. 1087 Architrave. Guidance for specification option: 40 mm wide. 1178 Quadrant. Guidance for specification option: 19 mm. 3341 Add-on. Guidance for specification option: Architrave adaptor. 3342 Architrave. Guidance for specification option: 30 mm wide. 3343 Architrave. Guidance for specification option: 35 mm wide. Show more
Bay window corner posts	Not required. 3196 Bay post. Guidance for specification option: Fixed 135° angle. 3313/3327 Slimline bay pole and adaptor. Guidance for specification option: Angles from 138°-222°. 6916/ 3311 Bay pole and adaptor. Guidance for specification option: Angles from 90°-270°. 6920 90° Square corner post. Lightweight. Structural. As drawing. Show more
Weather bars	Not required. 3303 Head drip. 3306 Weather bar.
Projecting sill	Not required. 3338 Projecting sill. Guidance for specification option: 150 mm. 3339 Projecting sill. Guidance for specification option: 180 mm. 3258 End cap. Guidance for specification option: For 3338 Projecting sill. 3259 End cap. Guidance for specification option: For 3339 Projecting sill.
Stub-sill	Not required. 3337 Stub-sill. Guidance for specification option: 95 mm. 3257 End cap. Guidance for specification option: For 3337 Stub-sill.
Options	Not required. Georgian bar. Leaded lights.
Ironmongery	As section P21. Concealed hinges. Full perimeter locking.
Bead	Internal.
Type	Decorative 28 mm. Guidance for specification option: Standard. Other. Guidance for specification option: Other styles available depending on glazing thicknesses. Manufacturer guidance Beading type.
Thickness	3—40 mm. Manufacturer guidance Glazing thickness.
Seal	Weatherseal. Guidance for specification option: High-performance integral multifunctional seal/ gasket.
ThermalTransmittance	0.97.

BIM objects

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform	Compatible	Version
IFC	-	2
Revit	Revit 2016	3

Literature

10. Specification Guide - Heritage 2800 decorative series windows & doors
