BSI Kitemark
Certificate type

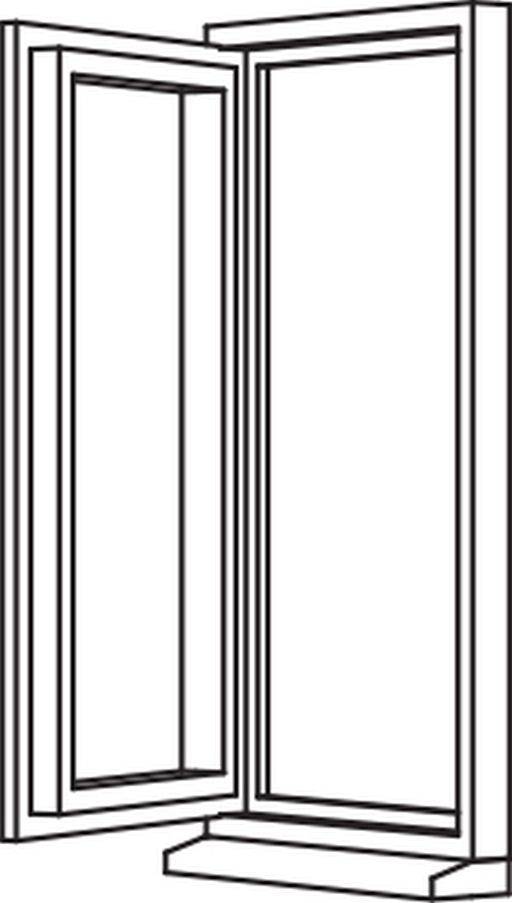

Opening light (side hung) style window with a flush external finish and decorative internal design.
A range of PVC-U top hung, side hung and fixed light casement windows, available in a range of styles and framing options in three standard finishes.
Material | PVC-U |
Size | Specification dependant |
WarrantyDescription | Manufacturer warranty |
Uniclass 2015 | |
CAWS | L10/30 PVC-U windows L10/350 PVC-U windows |
Product Reference | Heritage 2800 Windows - Casement |
Window | - |
Size (w x h) | ___ x ___ mmAs drawing ___ |
Style | Top hungSide hungFixed lightMultilight |
Outer frame size | 557085 |
Transoms and mullions | - |
Transoms and mullions size | 7085110 |
Joints | Cruciform jointsMechanically joined'T' jointsWelded |
Window frame | - |
Couplings | Not required3310 Slimline coupler3312 Slimline coupler3197 Slimline coupler3705 Reinforced coupler6975 Reinforced couplerLightweightStructural |
Extensions | Not required2455 Head sectionAccommodates proprietary trickle ventilators. 3300 Add-onAllows additional clearance for hinges. 3301 Add-onAccommodates proprietary trickle ventilators. 3302 Add-onFrame build-up for conservatories. 3336 Add-onProvides clearance over existing plaster or tiling. 3340 Add-onReveal liner adaptor. |
Architraves | Not required1044 D-mould30 mm wide. 1087 Architrave40 mm wide. 1178 Quadrant19 mm. 3341 Add-onArchitrave adaptor. 3342 Architrave30 mm wide. 3343 Architrave35 mm wide. |
Bay window corner posts | Not required3313/3327 Slimline bay pole and adaptorAngles from 138°-222°. 6916/ 3311 Bay pole and adaptorAngles from 90°-270°. 6920 90° Square corner post3196 Bay postFixed 135° angle. LightweightStructuralAs drawing ___ |
Weather bars | Not required3303 Head drip3306 Weather bar |
Projecting sill | Not required3338 Projecting sill150 mm. 3339 Projecting sill180 mm. 3258 End capFor 3338 Projecting sill. 3259 End capFor 3339 Projecting sill. |
Stub-sill | Not required3337 Stub-sill95 mm. 3257 End capFor 3337 Stub-sill. |
Colour | RAL 9016 Traffic WhiteDecoroc patented coating system. Colour: RAL ___Insert requirement. Wood grain foil laminate. Finish: ___Insert requirement. |
Glazing | - |
Type | Double glazedSingle glazedTriple glazed |
Options | Not requiredGeorgian barLeaded lights |
Ironmongery | As section P21 |
Ventilation | Not requiredProprietary ventilation device: ___ |
Standard product features | Accreditation (BS 7412, BS 6375 and PAS 24): - Sizes tested (maximum):
Maximum sizes must be within the range recommended by the manufacturer of the hardware selected. - Performance:
Framing: Standard slimline sash. Seals and gaskets: Main profiles supplied with high-performance integral multifunctional seal and gasket. Reinforcing: Galvanized steel profiles optimised for strength and secure hardware attachment. Fabrication:
Hardware:
Security:
Thermal insulation:
Acoustic performance:
|
Product Options | Framing:
Window styles:
Glazing:
Ancillaries:
Ventilation: Proprietary ventilation devices can be fitted to the windows in compliance with Building Regulations. Fixing:
|
Platform | Compatible | Version | Certified to |
---|---|---|---|
![]() | Revit 2017 | 1 | 2.0 |
![]() | - | 1 | 2.0 |
