Hercules Elite Security Fence System - SR1 (A1) & SR2 (B3)
Verified by manufacturer 2 days ago

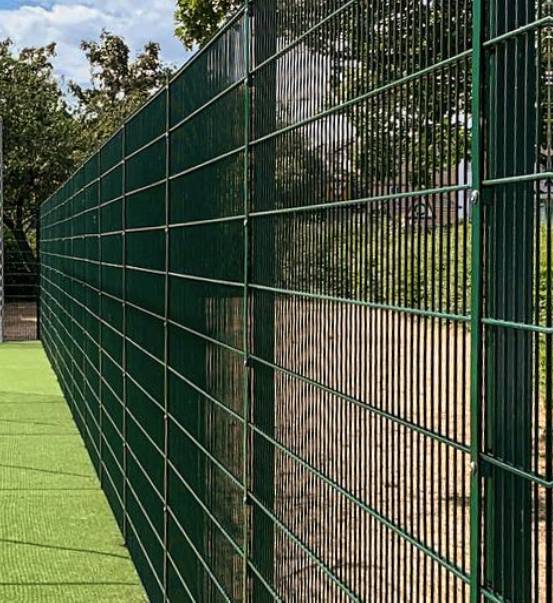

Hercules 868 Elite (SR1)
Hercules 868 Elite (SR1)
A range of LPS 1175 security-rated mesh fencing systems.
Application
- Hercules 358 Elite Defender - data centres, water treatment facilities, logistics hubs, distribution sites, national infrastructure projects.
- Hercules 868 Elite - schools, retail parks, industrial estates, sports facilities.
- Hercules 358 Elite - high-security facilities, data centres, MoD properties, industrial estates, prisons.
Description
Hercules Elite is a range of SR1 and SR2 security-rated fencing systems.
Hercules Elite Defender is a security-rated fencing solution approved by the Loss Prevention Certification Board (LPBC) to the LPS 1175 B3 (SR2) standard. Delivering a certified minimum three-minute delay against forced entry attempts, it combines robust anti-climb performance without compromising visibility. Suitable for critical infrastructure and high-risk sites, this single-skin weld mesh system has a patented fixing system.
Hercules 358 Elite is an improved version of the standard prison mesh fencing that is approved to the SR1 security standard by the LPBC. This, combined with Hercules 358’s tight mesh spacing, creates a security fence that is very hard to climb, cut through or force entry.
Hercules 868 Elite is an improved version of the 868 twinwire system that is approved to the SR1 security standard by the LPBC. This, combined with 868’s twin-wire mesh, creates a security fence that is very hard to climb, cut through or force entry.
Features and benefits:
- LPS 1175 SR1 (A1)/SR2 (B3) security-rated fencing.
- SR1 security fencing can withstand opportunistic attempts at forced entry using basic tools for a period of time.
- Available in a range of heights.
- Powder-coated finish.
General information
Color | Green Other |
Finish | Powder-coated |
Material | Steel |
Shape | Rectangle |
Length | Bespoke |
Width | 2506 mm 2515 mm 2525 mm Manufacturer guidancePanel width. |
Height | 1800 mm 2000 mm 2100 mm 2400 mm 2700 mm |
Warranty description | 15 year |
Uniclass | |
CAWS | Q40/28 Open mesh steel panel security fencing Q40/126 Open mesh steel panel security fencing Q40/430 Proprietary fencing Q40/30 Proprietary fencing |
Specification data - Metal mesh panel fencing systems
Classification data | |
Posts | Steel posts to suit panel height, dig-in. Guidance for specification option: As standard. Steel posts to suit panel height, cranked. Guidance for specification option: Internal and external/ top and bottom. Steel posts to suit panel height, face fix. Steel posts to suit panel height, base-plated. |
Post foundations | Manufacturer guidanceInsert requirements. |
Panels | Carbon steel welded mesh panels. |
System accessories | Plastic post cap. |
WireDiameter | 1 x 6 mm vertical and 2 x 8 mm horizontal. |
Mesh size | 200 x 50 mm. |
Fixings | 40 x 5 mm clamp bar (full length of mesh panel), M8 washer, M8 x 40 mm button head A2 stainless steel shear bolt. Manufacturer guidanceRubber backstops are available for all fixings for antivibration. |
SecurityRating | LPS 1175 A1 (SR1). |
Fence height | 1.8 m. 2.0 m. 2.4 m. 3.0 m. |
Applied finish | Galvanized and powder-coated to BS EN 13438 (minimum 100 micron). |
Colour | RAL 6005 (Moss Green). RAL. Guidance for specification option: Other RAL colours available as special order, including marine-grade coating. Insert requirements. |
Sustainability data
Material | Steel |
Literature
Hercules 868 Elite Data Sheet
Hercules 358 Elite Data Sheet
Hercules Elite Defender Data Sheet
