Description

Underfloor heating panel system.

Panel:

- Low build:

For fitting on top of an existing floor. Provides a solution for retro-fit projects, where build height is critical.

  • 15 mm ultra-slim insulation panels, with metal diffuser plates pre-fitted (10 mm Hep2O pipe required).
  • 25 mm floating floor option, for longer circuit lengths and multiple zones (15 mm Hep2O pipe required).
  • 15 mm low-build max, no diffuser plates needed, durable - tile straight onto the panels (10 mm Hep2O pipe required).

- Joists:

This system is for suitable for joisted or battened floor constructions. The panels can be installed from above or below. The 340 mm wide panel slots between evenly spaced joists at 400 mm centres.

Diffuser plate:

Metal plate with a channel for 15 mm pipe, which is fitted over the insulation layer and disperses the heat from the pipe across the floor.

System plate:

System plates are plastic sheets with pre-formed grips to hold the pipe in position. These are laid on top of insulation panels and hold the pipe in place before the floor is screeded. This solution allows fast installation and ensures even spacing of the pipe. The sheets can be cut to size with a utility knife and lock together to prevent any screed ingress under the plates. The sheets can support foot traffic, so will protect the pipe from damage.

General information
Specification data - Underfloor low-temperature hot water heating systems
Product Reference

Hep2O Underfloor Heating - Panel System

Panel

10UH600

Low-build max channel panel. Size (l x h x w): 600 x 150 x 15 mm.

10UH601

Low-build panel, 15 mm. Size (l x h x w): 1200 x 600 x 15 mm.

10UH602

Low-build max straight panel (pack of 10). Size (l x h x w): 1200 x 600 x 15 mm.

10UH603

Low-build max straight panel (pack of 30). Size (l x h x w): 1200 x 600 x 15 mm.

10UH604

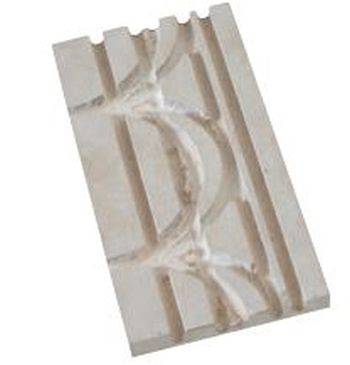

Low-build max return panel. Size (l x h x w): 300 x 138 x 15 mm.

15UH608

Floating floor panel, 25 mm. Size (l x h x w): 1200 x 600 x 25 mm.

15UH610

Joist panel, 50 mm. Size (l x h x w): 1200 x 600 x 50 mm.

Diffuser plate

Not required

15UH605

Double diffuser plate, 15 mm. Size (l x h x w): 1000 x 390 x 18 mm.

15UH606

Single diffuser plate, 15 mm. Size (l x h x w): 1000 x 140 x 18 mm.

System plate

Not required

15UH232

1275 x 975 x 25 mm.

Accessories/ Other requirements

Not required

15UH231

60 mm pipe staple for 16 mm pipe (pack of 300).

15UH234

Edge expansion foam, 25 m x 150 mm.

15UH237

Staple gun.

15UH238

System plate tack fasteners (pack of 25).

15UH612

L-bracket for use with joist panel, 16 mm. 1.2 m long.

15UH613

Screws and washers for joisted floors, 16 mm (pack of 50).

Product Options

Panel:

- 10UH600:

  • Net weight: 14.254 kg.
  • Colour: White.

10UH601:

  • Net weight: 6 kg.
  • Colour: Light blue.

- 10UH602/ 10UH603:

  • Net weight: 10.56 kg.
  • Colour: White.

- 10UH604:

  • Net weight: 0.552 kg.
  • Colour: White.

- 15UH608:

  • Net weight: 1 kg.
  • Colour: White.

- 15UH610:

  • Net weight: 1 kg.
  • Colour: White.

Diffuser plate:

  • Net weight: 1.36 kg.
  • Colour: Light blue.

System plate:

  • Net weight: 1.36 kg.
  • Colour: Light blue.
