Description

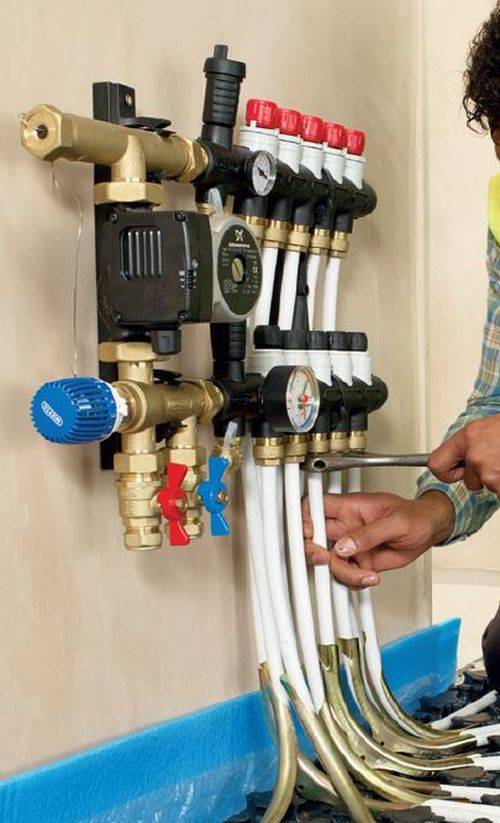

Range of composite manifolds for use in underfloor heating systems.

Features and benefits:

  • Lightweight and easy to install.
  • Simple assembly, compatible with both left and right-hand configuration - no special tools required.
  • Easily extendable - additional circuits can be added at any time.
  • Unique ‘Memory Ring’ enables individual circuit isolation, with quick and simple balancing.
  • A single circuit can be isolated and balanced without unbalancing the system.
  • Ports can be assembled facing up or down as required to supply rooms above or below the manifold location.
  • BBA certified for a 25 year service life.

General information
Specification data - Underfloor heating and cooling manifolds
Product Reference

Hep2O Underfloor Heating - Manifold

Type

15UH510

Composite manifold starter pack. Size (l x h x w): 350 x 150 x 130 mm.

15UH511

Composite manifold one port pack. Size (l x h x w): 150 x 110 x 40 mm.

15UH512

Composite manifold control pack. Size (l x h x w): 360 x 230 x 160 mm. A rated.

15UH513

Composite manifold three port pack. Size (l x h x w): 170 x 90 x 40 mm.

Accessories/ Other requirements

Not required

15UH211

Composite manifold 22 mm isolation valves (pair). Size (l x h x w): 120 x 80 x 40 mm.

15UH529

Composite manifold adaptor 15x1.8 (pair). Size (l x h x w): 25 x 20 x 20 mm.

15UH607

Female brass adaptor. 1"x15 mm. Size (l x w x h): 50 x 40 x 40 mm.

16UH529

Composite manifold adaptor 16x1.8 (pair). Size (l x h x w): 25 x 20 x 20 mm.

HX75/15 GR

Cold forming bend fixture. Metal with passivate finish. Size (l x h x w): 160 x 160 x 127 mm.

HX85/15W

Pipe clips (pack of 50). 15 mm diameter. Size (l x h x w): 28 x 24 x 12 mm.

Product Options

Type:

- 15UH510:

  • Net weight: 1.39 kg.
  • Main material: Nylon.
  • Colour: Black.

- 15UH511:

  • Net weight: 0.426 kg.
  • Diameter: 15 mm.
  • Main material: Nylon.
  • Colour: Black.

- 15UH512:

  • Net weight: 4.652 kg.
  • Colour: Ivory.

- 15UH513:

  • Net weight: 1.25 kg.
  • Diameter: 15 mm.
  • Main material: Nylon.
  • Colour: Black.
