Description

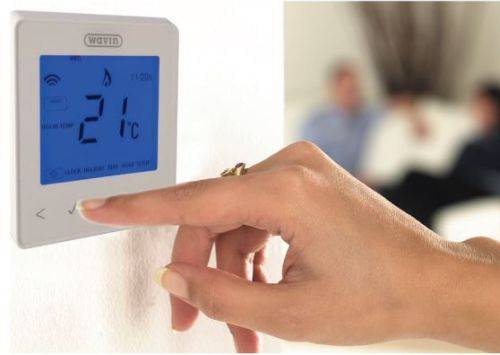

A range of thermostats, controls and accessories for use with underfloor heating systems, including choices of wired, wireless, programmable and non-programmable devices, dependent on project requirements.

General information
Uniclass 2015
Time switches (Pr_75_51_17_89)Primary
Specification data - Time switches
Product Reference

Hep2O Underfloor Heating - Controls

Type

15UH310

Single zone kit, comes with programmable thermostat.

15UH316

16 zone control centre, 24 V.

15UH372

Wired thermostat.

15UH373

Wired programmable thermostat.

15UH382

Wireless thermostat.

15UH383

Wireless programmable thermostat.

15UH408

Eight zone control centre, 230 V.

15UH475

NeoStat (white).

15UH476

NeoStat (black).

15UH492

NeoHub.

Accessories/ Other requirements

Not required

15UH302

24 V actuator. For use with 15UH316. Size (l x h x w): 90 x 75 x 50 mm.

15UH334

Flow watch sensor. For use with 15UH316. Size (l x h x w): 10 x 2.5 x 2 mm.

15UH395

Remote sensor probe. Size (l x h x w): 10 x 2.5 x 2 mm. White.

15UH402

230 V actuator. For use with 15UH408. Size (l x h x w): 90 x 75 x 50 mm.

15UH494

Remote sensor probe cover. Size (l x h x w): 90 x 90 x 20 mm. White.

15UH495

Remote sensor probe. Size (l x h x w): 80 x 80 x 20 mm. White.

15UH524

Flow watch thermostat. For use with 15UH408. Size (l x h x w): 125 x 65 x 55 mm. Black.

Standard product features

Size (l x h x w):

  • Single zone kit: 220 x 130 x 90 mm.
  • Thermostats: 11 x 8 x 4 mm.
  • Control centres: 15UH316: 38 x 15 x 7 mm; 15UH408: 380 x 140 x 60 mm.
  • NeoHub: 170 x 120 x 10 mm.
  • NeoStat: 85 x 50 x 40 mm.

Weight:

  • Single zone kit: 0.23 kg.
  • Thermostats: 0.15 kg.
  • Control centres: 15UH316: 0.852 kg; 15UH408: 0.83 kg.
  • NeoHub: 0.344 kg.
  • NeoStat: 0.14 kg.

Product Options

Type:

See manufacturer's literature for further details.
