Hep2O - Push Fit Plumbing

Hep2O - Push Fit Plumbing

 Hep2O

Range of polybutylene (PB) pipes, push-fit fittings and accessories for general plumbing and underfloor heating.

Jump to:
+44 (0) 844 856 5152 www.wavin.co.uk

Application

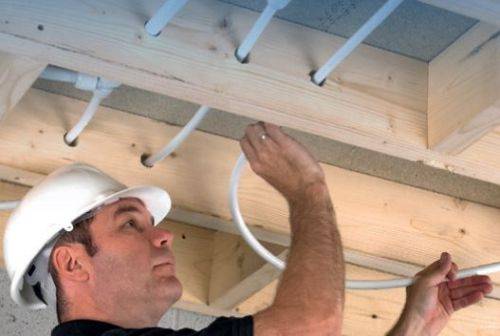

Suitable for use in domestic water distribution and central heating systems, including pressurized systems and combination boilers.

Description

Range of polybutylene (PB) pipes, push-fit fittings and accessories for general plumbing and underfloor heating.

Features and benefits:

  • Streamlined, highly flexible design.
  • In4Sure™ joint recognition alerts when the pipe has been inserted.
  • The HepKey™ makes demounting quick, easy and tamperproof, so joints only come apart when required.
  • SmartSleeve™ pipe support sleeves reduce the force required to push the pipe into the fitting.
  • Plastic pipes reduce the chance of scale build-up, corrosion, and burst pipes when compared to metal pipes.
  • Pre-lubricated during factory assembly.
  • Designed to form reliable joints with metric copper pipe.
  • Kitemarked, and manufactured in accordance with BS 7291.
  • 50-year guarantee.

Applications:

Suitable for use in domestic water distribution and central heating systems, including pressurized systems and combination boilers.

General information

Uniclass 2015

Pr_65_52_63_60 Polybutylene (PB) pipes and fittingsPrimary

CAWS

S90/540 Thermoplastics pipelines

T90/410 Thermoplastics pipelines

T90/475 Underfloor heating systems

T90/475 Underfloor heating systems

Product range

Hep2O

Specification data - Polybutylene (PB) pipes and fittings

Product Reference

Hep2O - Push Fit Plumbing

Pipe

See 'Options' below and insert requirements. Multiple variants can be selected.

Fittings

See 'Options' below and insert requirements. Multiple variants can be selected.

Accessories/ Other requirements

See 'Options' below and insert requirements. Multiple variants can be selected.

Product Options

Pipe(s):

- Barrier pipe, coil:

Remains straight once uncoiled.

  • HXX10/22W: Barrier pipe coil, 22 mm diameter, 10 m length. Net weight: 0.75 kg. White.
  • HXX10/28W: Barrier pipe coil, 28 mm diameter, 10 m length. Net weight: 2.06 kg. White.
  • HXX25/10W: Barrier pipe coil, 10 mm diameter, 25 m length. Net weight: 0.995 kg. White.
  • HXX25/15W: Barrier pipe coil, 15 mm diameter, 25 m length. Net weight: 1.873 kg. White.
  • HXX25/22W: Barrier pipe coil, 22 mm diameter, 25 m length. Net weight: 3.2 kg. White.
  • HXX25/28W: Barrier pipe coil, 28 mm diameter, 25 m length. Net weight: 5.15 kg. White.
  • HXX50/10W: Barrier pipe coil, 10 mm diameter, 50 m length. Net weight: 1.99 kg. White.
  • HXX50/15W: Barrier pipe coil, 15 mm diameter, 50 m length. Net weight: 3.747 kg. White.
  • HXX50/22W: Barrier pipe coil, 22 mm diameter, 50 m length. Net weight: 6.4 kg. White.
  • HXX50/28W: Barrier pipe coil, 28 mm diameter, 50 m length. Net weight: 11.03 kg. White.
  • HXX80/15W: Barrier pipe coil, 15 mm diameter, 80 m length. Net weight: 5.995 kg. White.
  • HXX100/10W: Barrier pipe coil, 10 mm diameter, 100 m length. Net weight: 3.98 kg. White.
  • HXX100/15W: Barrier pipe coil, 15 mm diameter, 100 m length. Net weight: 7.494 kg. White.
  • HXX120/15W: Barrier pipe coil, 15 mm diameter, 120 m length. Net weight: 8.992 kg. White.

- Barrier pipe, conduit:

Coil of Hep2O barrier pipe in blue or red conduit.

  • HXXC2528 BU: Conduit barrier pipe, 28 mm diameter, 25 m length. Net weight: 5.15 kg. Blue.
  • HXXC2528 RD: Conduit barrier pipe, 28 mm diameter, 25 m length. Net weight: 5.15 kg. Red.
  • HXXC5010 BU: Conduit barrier pipe, 10 mm diameter, 50 m length. Net weight: 2 kg. Blue.
  • HXXC5010 RD: Conduit barrier pipe, 10 mm diameter, 50 m length. Net weight: 1.99 kg. Red.
  • HXXC5015 BU: Conduit barrier pipe, 15 mm diameter, 50 m length. Net weight: 3.8 kg. Blue.
  • HXXC5015 RD: Conduit barrier pipe, 15 mm diameter, 50 m length. Net weight: 3.8 kg. Red.
  • HXXC5022 BU: Conduit barrier pipe, 22 mm diameter, 50 m length. Net weight: 6.4 kg. Blue.
  • HXXC5022 RD: Conduit barrier pipe, 22 mm diameter, 50 m length. Net weight: 6.4 kg. Red.

- Barrier pipe, straight:

Flexible straight pipe, which is primarily intended for exposed pipework where neatness is vital, or where only a short length of pipe is required.

  • HXX03/15W: Barrier pipe straight length, 15 mm diameter, 3 m length. Net weight: 0.225 kg. White.
  • HXX03/22W: Barrier pipe straight length, 22 mm diameter, 3 m length. Net weight: 0.38 kg. White.
  • HXX03/28W: Barrier pipe straight length, 28 mm diameter, 3 m length. Net weight: 0.618 kg. White.
  • HXX06/15W: Barrier pipe straight length, 15 mm diameter, 6 m length. Net weight: 0.45 kg. White.
  • HXX06/22W: Barrier pipe straight length, 22 mm diameter, 6 m length. Net weight: 0.78 kg. White.
  • HXX06/28W: Barrier pipe straight length, 28 mm diameter, 6 m length. Net weight: 1.236 kg. White.

- Conduit pipe, coil:

  • HXC25/15 BL: Conduit pipe coil, 15 mm diameter, 25 m length. Net weight: 1.514 kg. Black.
  • HXC50/15 BL: Conduit pipe coil, 15 mm diameter, 50 m length. Net weight: 3.8 kg. Black.
  • HXC25/22 BL: Conduit pipe coil, 22 mm diameter, 25 m length. Net weight: 2.2 kg. Black.
  • HXC50/22 BL: Conduit pipe coil, 22 mm diameter, 50 m length. Net weight: 6.4 kg. Black.

Fittings:

A large range of pipeline fittings and accessories is available. Consult manufacturer for further details on each variant.

- Adaptors:

In order to facilitate connection to male and female iron threads, various adaptors are available in the Hep2O range. This enables connection to a wide range of different materials.

  • HX39 GR: Adaptor for 0.5" tap connector to 3/8" brass. Size (l x h x w): 18 x 12 x 12 mm.

Female:

  • HX28/10W: Female adaptor, 0.5" x 10 mm, white. Size (l x h x w): 48 x 30 x 19 mm.
  • HX28/15W: Female adaptor, 0.5" x 15 mm, white. Size (l x h x w): 51 x 30 x 29 mm.
  • HX24/15W: Female adaptor, 0.75" x 15 mm, white. Size (l x h x w): 54 x 33 x 30 mm.
  • HX28/22W: Female adaptor, 0.75" x 22 mm, white. Size (l x h x w): 55 x 41 x 41 mm.
  • HX28/28W: Female adaptor, 1" x 28 mm, white. Size (l x h x w): 62 x 50 x 42 mm.
  • HX30/15W: Female adaptor brass spigot, 0.5" x 15 mm. Size (l x h x w): 110 x 110 x 40 mm.
  • HX30/22W: Female adaptor brass spigot, 0.75" x 22 mm. Size (l x h x w): 110 x 110 x 55 mm.
  • HX30/28W: Female adaptor brass spigot, 1" x 28 mm. Size (l x h x w): 120 x 70 x 65 mm.

Male:

  • HX29/10W: Male adaptor, 0.5" x 10 mm, white. Size (l x h x w): 48 x 30 x 19 mm.
  • HX29/15W: Male adaptor, 0.5" x 15 mm, white. Size (l x h x w): 52 x 30 x 30 mm.
  • HX28/22W: Male adaptor, 0.75" x 22 mm, white. Size (l x h x w): 56 x 41 x 41 mm.
  • HX29/28W: Male adaptor, 1" x 28 mm, white. Size (l x h x w): 63 x 50 x 50 mm.
  • HX31/15W: Male adaptor brass spigot, 0.5" x 15 mm. Size (l x h x w): 65 x 25 x 25 mm.
  • HX31/22W: Male adaptor brass spigot, 0.75" x 22 mm. Size (l x h x w): 65 x 32 x 32 mm.
  • HX31/28W: Male adaptor brass spigot, 1" x 28 mm. Size (l x h x w): 65 x 38 x 38 mm.

- Bend fixtures:

  • HX75/15 GR: Cold forming bend fixture, 15 mm. Size (l x h x w): 160 x 160 x 127 mm.
  • HX75/16 GR: Cold forming bend fixture, 16 mm. Size (l x h x w): 169 x 169 x 132 mm.
  • HX75/22 GR: Cold forming bend fixture, 22 mm. Size (l x h x w): 360 x 360 x 250 mm.

- Blanking pegs:

For use when a temporary or permanent seal is required to one of the ports on a Hep2O fitting; insert a blanking plug directly into the open connection.

  • HX44/10W: Blanking peg, 10 mm. Size (l x h x w): 51 x 19 x 18 mm. White.
  • HX44/15W: Blanking peg, 15 mm. Size (l x h x w): 63 x 15 x 15 mm. White.
  • HX44/22W: Blanking peg, 22 mm. Size (l x h x w): 66 x 22 x 22 mm. White.
  • HX44/28W: Blanking peg, 28 mm. Size (l x h x w): 70 x 28 x 28 mm. White.

- Conduit fittings:

For terminating the conduit pipe at wall and floor finish level for direct 15 mm connections to appliances, a conduit terminal fitting is available. For floor terminations, the plastic housing may be drilled through the base to allow fixing. Consult manufacturer for further details.

  • HX100 BL: Conduit junction box. Size (l x h x w): 377 x 202 x 75 mm.
  • HX101/15W: Conduit terminal, 15 mm. Size (l x h x w): 60 x 30 x 30 mm.
  • HX103 BL: Terminal back plate. Size (l x h x w): 360 x 280 x 46 mm.
  • HX104 BL: Junction box lid. Size (l x h x w): 372 x 197 x 12 mm.

- Demountable stopends:

When closing off the open end of a pipe, first fit a SmartSleeve™ support sleeve in to the open pipe end then fit a stop end onto the pipe to provide a temporary or permanent seal.

  • HD62/10W: Demountable stop end, 10 mm. Size (l x h x w): 37 x 23 x 23 mm. White.
  • HD62/15W: Demountable stop end, 15 mm. Size (l x h x w): 41 x 29 x 29 mm. White.
  • HD62/22W: Demountable stop end, 22 mm. Size (l x h x w): 44 x 41 x 41 mm. White.
  • HD62/28W: Demountable stop end, 28 mm. Size (l x h x w): 50 x 50 x 45 mm. White.

- Draincock:

  • HX32/15 GY: Draincock brass spigot, 15 x 15 mm. Size (l x h x w): 220 x 100 x 40 mm.

- Elbows/ Spigot elbows:

  • HD4/10W: Spigot elbow, 90°, 10 mm. Size (l x h x w): 49 x 43 x 23 mm. White.
  • HD4/15W: Spigot elbow, 90°, 15 mm. Size (l x h x w): 61 x 52 x 29 mm. White.
  • HD4/22W: Spigot elbow, 90°, 22 mm. Size (l x h x w): 73 x 62 x 41 mm. White.
  • HD4A/15W: Spigot elbow, 90°, 15 x 10 mm. Size (l x h x w): 54 x 46 x 23 mm. White.
  • HD5/10W: Elbow, 90°, 10 mm. Size (l x h x w): 48 x 48 x 23 mm. White.
  • HD5/15W: Elbow, 90°, 15 mm. Size (l x h x w): 59 x 59 x 29 mm. White.
  • HD5/22W: Elbow, 90°, 22 mm. Size (l x h x w): 71 x 71 x 41 mm. White.
  • HD5/28W: Elbow, 90°, 28 mm. Size (l x h x w): 82 x 82 x 50 mm. White.
  • HX6/15W: Wall plate elbow, 0.5" x 15 mm. Size (l x h x w): 59 x 59 x 29 mm. White.
  • HX6/22W: Wall plate elbow, 0.75" x 22 mm. Size (l x h x w): 73 x 62 x 41 mm. White.

- Manifolds:

Single fitting manifolds which bring together multiples of 10, 15 and 22 mm pipe. Can be used on the flow or return pipework to one area of a building, enabling easy access. Can be connected in series to allow any number of outlets. Available with 1–4 ports.

  • HX88/22W: Two port manifold, 22 x 15 mm. All socket. Size (l x h x w): 145 x 66 x 40 mm.
  • HX88B/22W: Two port manifold, 22 x 15 mm. Closed spigot. Size (l x h x w): 147 x 66 x 40 mm.
  • HX89/22W: Three port manifold, 22 x 15 mm. Closed spigot. Size (l x h x w): 186 x 66 x 40 mm.
  • HX89B/22W: Three port manifold, 22 x 15 mm. All socket. Size (l x h x w): 184 x 66 x 40 mm.
  • HX91T/22W: One port valved manifold, 0.75"x22 mm. Size (l x h x w): 84 x 61 x 41 mm.
  • HX92/22W: Two port manifold, 22 x 10 mm. Socket and closed spigot. Size (l x h x w): 102 x 84 x 41 mm.
  • HX92B/22W: Two port manifold, 22 x 10 mm. All socket. Size (l x h x w): 100 x 84 x 41 mm.
  • HX92T/15W: Two port valved manifold, 0.75"x15 mm. Size (l x h x w): 100 x 95 x 40 mm.
  • HX93T/15W: Three part valved manifold, 0.75"x15 mm. Size (l x h x w): 135 x 100 x 35 mm.
  • HX94/22W: Four port manifold, 22 x 10 mm. Socket and closed spigot. Size (l x h x w): 130 x 84 x 41 mm.
  • HX94B/22W: Four port manifold, 22 x 10 mm. All socket. Size (l x h x w): 130 x 84 x 41 mm.
  • HX94T/15W: Four port valved manifold, 0.75"x15 mm. Size (l x h x w): 175 x 100 x 40 mm.
  • HX96/22W: Four port manifold, 22 x 10 mm. Socket and closed spigot on one side. Size (l x h x w): 188 x 62 x 41 mm.
  • HX96B/22W: Four port manifold, 22 x 10 mm. All socket on one side. Size (l x h x w): 188 x 62 x 41 mm.

- Sockets/ Socket reducers:

  • HD3B/15W: Socket/ socket reducer, 15 x 10 mm. Size (l x h x w): 62 x 23 x 23 mm. White.
  • HD3B/22W: Socket/ socket reducer, 22 x 15 mm. Size (l x h x w): 67 x 29 x 29 mm. White.
  • HD3C/22W: Socket/ socket reducer, 22 x 10 mm. Size (l x h x w): 67 x 29 x 29 mm. White.
  • HD2/15W: Socket reducer, 15 x 10 mm. Size (l x h x w): 62 x 23 x 23 mm. White.
  • HD2/22W: Socket reducer, 22 x 15 mm. Size (l x h x w): 67 x 29 x 29 mm. White.
  • HD2/28W: Socket reducer, 28 x 22 mm. Size (l x h x w): 75 x 41 x 41 mm. White.
  • HD8/15W: Obtuse bend single socket, 135°, 15 mm. Size (l x h x w): 75 x 50 x 29 mm. White.
  • HD8/22W: Obtuse bend single socket, 135°, 22 mm. Size (l x h x w): 85 x 61 x 40 mm. White.
  • HD8/10W: Obtuse bend single socket, 135°, 10 mm. Size (l x h x w): 62 x 39 x 23 mm. White.

- Spigots:

  • HD15/15W: Branch reduced tee spigot, 15 x 15 x 10 mm. Size (l x h x w): 80 x 55 x 30 mm. White.
  • HD15/22W: Branch reduced tee spigot, 22 x 22 x 15 mm. Size (l x h x w): 92 x 69 x 41 mm. White.

- Straight connectors:

  • HD1/10W: Straight connector, 10 mm. Size (l x h x w): 66 x 23 x 22 mm. White.
  • HD1/15W: Straight connector, 15 mm. Size (l x h x w): 72 x 29 x 29 mm. White.
  • HD1/22W: Straight connector, 22 mm. Size (l x h x w): 78 x 41 x 41 mm. White.
  • HD1/28W: Straight connector, 28 mm. Size (l x h x w): 85 x 50 x 50 mm. White.

- Tap connectors:

Bent:

HD27/15W: Bent tap connector with brass nut, 0.5" x 15 mm. Size (l x h x w): 63 x 30 x 30 mm. White.

Flexible:

  • HD125A/15W: Flexible tap connector with brass nut, 0.5" x 15 mm, 300 mm.
  • HD125B/15W: Flexible tap connector with brass nut, 0.75" x 15 mm, 300 mm.
  • HD125B/22W: Flexible tap connector with brass nut, 0.75" x 22 mm, 300 mm.
  • HD125C/22W: Flexible tap connector with brass nut, 0.75" x 22 mm, 300 mm.
  • HD125D/15W: Flexible tap connector with elbow brass nut, 0.5" x 15 mm, 300 mm.
  • HD125E/15W: Flexible tap connector brass service valve 0.5" x 15 mm, 300 mm.
  • HD125E/22W: Flexible tap connector with brass nut, 0.75" x 22 mm, 300 mm.
  • HD125EH/15W: Flexible tap connector brass service valve (handle) 0.5" x 15 mm, 300 mm.
  • HD125EH/22W: Flexible tap connector brass service valve (handle) 0.75" x 22 mm, 300 mm.
  • HD125F/15W: Flexible tap connector and monobloc mixer, M10 x 15 m, 300 mm.
  • HD125G/15W: Flexible tap connector and monobloc mixer, M12 x 15 m, 300 mm.
  • HD125H/15W: Flexible tap connector to Hep2O 15 x 15 mm pipe, 300 mm.
  • HD125H/22W: Flexible tap connector to Hep2O 22 x 22 mm pipe, 300 mm.
  • HD225A/15W: Flexible tap connector with brass nut, 0.5" x 15 mm, 500 mm.
  • HD225B/15W: Flexible tap connector with brass nut, 0.75" x 15 mm, 500 mm.
  • HD225B/22W: Flexible tap connector with brass nut, 0.75" x 22 mm, 500 mm.
  • HD225C/22W: Flexible tap connector with brass nut, 0.75" x 22 mm, 500 mm.
  • HD225E/15W: Flexible tap connector brass service valve 0.5" x 15 mm, 500 mm.
  • HD225E/22W: Flexible tap connector brass service valve 0.75" x 22 mm, 500 mm.
  • HD225H/15W: Flexible tap connector to Hep2O 15 x 15 mm pipe, 500 mm.
  • HD225H/22W: Flexible tap connector to Hep2O 22 x 22 mm pipe, 500 mm.
  • HD225I/15W: Flexible tap connector brass service valve 0.75" x 15 mm, 500 mm.
  • HD325A/15W: Flexible tap connector with brass nut, 0.5" x 15 mm, 1000 mm.
  • HD325B/22W: Flexible tap connector with brass nut, 0.75"x22 mm, 1000 mm.
  • HD425A/15W: Flexible tap connector with brass nut, 0.5" x 15 mm, 150 mm.
  • HDW125A/15W: Flexible tap connector with brass nut, 0.5" x 15 mm, 300 mm, white.
  • HDW125B/15W: Flexible tap connector with brass nut, 0.75" x 15 mm, 300 mm, white.
  • HDW125B/22W: Flexible tap connector with brass nut, 0.75" x 22 mm, 300 mm, white.
  • HDW125D/15W: Flexible tap connector with elbow brass nut, 0.5" x 15 mm, 300 mm, white.
  • HDW125E/15W: Flexible tap connector brass service valve 0.5" x 15 mm, 300 mm, white.
  • HDW125E/22W: Flexible tap connector brass service valve 0.75" x 22 mm, 300 mm, white.
  • HDW125H/15W: Flexible tap connector to Hep2O 15 x 15 mm pipe, 300 mm, white.
  • HDW125H/22W: Flexible tap connector to Hep2O 22 x 22 mm pipe, 300 mm, white.
  • HDW225A/15W: Flexible tap connector with brass nut, 0.5" x 15 mm, 500 mm, white.
  • HDW225B/15W: Flexible tap connector with brass nut, 0.75" x 15 mm, 500 mm, white.
  • HDW225B/22W: Flexible tap connector with brass nut, 0.75" x 22 mm, 500 mm, white.

Hand-Titan™:

  • HD26A/10W: Hand-Titan™ tap connector, 0.5" x 10 mm. Size (l x h x w): 47 x 31 x 27 mm. White.
  • HD26A/15W: Hand-Titan™ tap connector, 0.5" x 15 mm. Size (l x h x w): 49 x 31 x 30 mm. White.
  • HD26B/15W: Hand-Titan™ tap connector, 0.75" x 15 mm. Size (l x h x w): 50 x 38 x 33 mm. White.
  • HD26B/22W: Hand-Titan™ tap connector, 0.75" x 22 mm. Size (l x h x w): 50 x 41 x 41 mm. White.

Straight:

  • HD25A/15W: Straight tap connector with brass nut and alternative rubber washer, 0.5" x 15 mm. Size (l x h x w): 69 x 30 x 30 mm. White.
  • HD25B/15W: Straight tap connector with brass nut and alternative rubber washer, 0.75" x 15 mm. Size (l x h x w): 64 x 34 x 30 mm. White.
  • HD25B/22W: Straight tap connector with brass nut and alternative rubber washer, 0.75" x 22 mm. Size (l x h x w): 72 x 41 x 41 mm. White.

- Tees:

  • HD10/10W: Equal tee, 10 mm. Size (l x h x w): 75 x 48 x 23 mm. White.
  • HD10/15W: Equal tee, 15 mm. Size (l x h x w): 88 x 59 x 30 mm. White.
  • HD10/22W: Equal tee, 22 mm. Size (l x h x w): 101 x 71 x 40 mm. White.
  • HD10/28W: Equal tee, 28 mm. Size (l x h x w): 114 x 82 x 50 mm. White.
  • HD12/22W: End reduced tee, 22 x 15 x 22 mm. Size (l x h x w): 98 x 71 x 40 mm. White.
  • HD12/28W: End reduced tee, 28 x 22 x 28 mm. Size (l x h x w): 114 x 84 x 50 mm. White.
  • HD13/15W: Branch reduced tee, 15 x 15 x 10 mm. Size (l x h x w): 82 x 54 x 29 mm. White.
  • HD13/22W: Branch reduced tee, 22 x 22 x 15 mm. Size (l x h x w): 92 x 68 x 41 mm. White.
  • HD13/28W: Branch reduced tee, 28 x 28 x 22 mm. Size (l x h x w): 104 x 80 x 50 mm. White.
  • HD13A/22W: Branch reduced tee, 22 x 22 x 10 mm. Size (l x h x w): 86 x 64 x 41 mm. White.
  • HD13A/28W: Branch reduced tee, 28 x 28 x 15 mm. Size (l x h x w): 96 x 78 x 50 mm. White.
  • HD14/15W: Branch and one end reduced tee, 15 x 10 x 10 mm. Size (l x h x w): 80 x 55 x 30 mm. White.
  • HD14A/22W: Branch and one end reduced tee, 22 x 10 x 10 mm. Size (l x h x w): 84 x 65 x 41 mm. White.
  • HD14/22W: Branch and one end reduced tee, 22 x 15 x 15 mm. Size (l x h x w): 92 x 69 x 41 mm. White.
  • HD14/28W: Branch and one end reduced tee, 28 x 22 x 22 mm. Size (l x h x w): 96 x 78 x 50 mm. White.
  • HD18/15W: Double end reduced tee, 10 x 10 x 15 mm. Size (l x h x w): 80 x 55 x 30 mm. White.
  • HD18/22W: Double end reduced tee, 15 x 15 x 22 mm. Size (l x h x w): 92 x 69 x 41 mm. White.
  • HD18/28W: Double end reduced tee, 22 x 22 x 28 mm. Size (l x h x w): 114 x 84 x 50 mm. White.
  • HD18A/22W: Double end reduced tee, 10 x 10 x 22 mm. Size (l x h x w): 80 x 69 x 30 mm. White.

- Pipe supports:

Before making a joint using Hep2O pipe, it is required to insert a Hep2O SmartSleeve™ pipe support sleeve into the cut pipe end. The only exception is when connecting to the open spigot end of a Hep2O fitting. Consult manufacturer for details.

  • HX60/10W: SmartSleeve pipe support, 10 mm. Size (l x h x w): 27 x 10 x 10 mm. White. Silver (stainless steel).
  • HX60/15W: SmartSleeve pipe support, 15 mm. Size (l x h x w): 29 x 15 x 15 mm. White. Silver (stainless steel).
  • HX60/22W: SmartSleeve pipe support, 22 mm. Size (l x h x w): 32 x 22 x 22 mm. White. Silver (stainless steel).
  • HX60/28W: SmartSleeve pipe support, 28 mm. Size (l x h x w): 35 x 28 x 28 mm. White. Silver (stainless steel).

- Radiator outlet fittings:

  • HX109 GY: Radiator outlet plastic back box. Size (l x h x w): 73 x 73 x 35 mm.
  • HX110 GY: Radiator outlet metal back box. Size (l x h x w): 70 x 70 x 35 mm.
  • HX112 GY: Back box grommet, for use with HX110. Size (l x h x w): 20 x 20 x 4 mm.
  • HX113 WH: Radiator outlet cover with flap. Size (l x h x w): 86 x 86 x 14 mm.

- Tank connectors:

  • HX20/15W: Tank connector, 0.5" x 15 mm. Size (l x h x w): 55 x 35 x 30 mm. White.
  • HX20/22W: Tank connector, 0.75" x 22 mm. Size (l x h x w): 60 x 41 x 41 mm. White.
  • HX20/28W: Tank connector, 1" x 28 mm. Size (l x h x w): 65 x 46 x 46 mm. White.

- Valves:

When connecting to appliances and dishwashers always use Hep2O appliance valves (HX38/15). Adjacent Hep2O pipework should be clipped in accordance with the recommended clipping distances using screw-type clips (HX85). Consult manufacturer's literature for further details.

  • HX18/15W: Straight service valve, 15 mm. Size (l x h x w): 90 x 55 x 30 mm. White.
  • HX19/15W: Angled service valve, 15 mm. Size (l x h x w): 90 x 55 x 30 mm. White.
  • HX22/15W: Brass plated ball valve, 15 x 15 mm. Size (l x h x w): 85 x 50 x 30 mm.
  • HX22/22W: Brass plated ball valve, 22 x 22 mm. Size (l x h x w): 96 x 60 x 41 mm.
  • HX35/15W: Gate valve hot/ cold, 15 mm. Size (l x h x w): 85 x 50 x 30 mm.
  • HX35/22W: Gate valve hot/ cold, 22 mm. Size (l x h x w): 96 x 60 x 41 mm.
  • HX36/15W: Stopcock, cold water, 15 mm. Size (l x h x w): 95 x 80 x 60 mm. White.
  • HX36/22W: Stopcock, cold water, 22 mm. Size (l x h x w): 105 x 100 x 70 mm. White.
  • HX37/15W: Shut-off valve, 15 mm. Size (l x h x w): 95 x 50 x 30 mm. White.
  • HX38/15W: Appliance valve, 15 mm. Size (l x h x w): 90 x 55 x 30 mm. White.
  • HX43/22W: Stopcock, cold water. Size (l x h x w): 170 x 125 x 41 mm.
  • HX72/15W: Double-check valve, 15 mm. Size (l x h x w): 120 x 40 x 30 mm.

- Washers:

  • HX57/15 GR: Conical tap connector washers, rubber, 15 mm (pack of 20).
  • HX57/22 GR: Conical tap connector washers, rubber, 22 mm (pack of 20).
  • HX58/15 GY: Flat tap connector washers, rubber, 15 mm (pack of 20).
  • HX58/22 GY: Flat tap connector washers, rubber, 22 mm (pack of 20).

Accessories/ Other requirements:

  • HD74 GR: Pipe cutter (scissor type).
  • HD75 GR: Pro pipe cutter.
  • HD77 GR: Pipe cutter (ratchet type), up to 42 mm.
  • HD78 GR: Pipe cutter (ratchet type), up to 28 mm.
  • HX200: Silicone lubricant spray, 400 ml. For use to lubricate pipes before installation.
  • HX65/10W: Pipe clip cable type, 10 mm, white (pack of 50).
  • HX65/15W: Pipe clip cable type, 15 mm, white (pack of 50).
  • HX65/22W: Pipe clip cable type, 22 mm, white (pack of 50).
  • HX65/28W: Pipe clip cable type, 28 mm, white (pack of 50).
  • HX77/10W: Demounting HepTool, 10 mm and 28 mm.
  • HX77/15W: Demounting HepTool, 15 mm and 22 mm.
  • HX78/10W: Demounting HepKey, 10 mm, green.
  • HX78/15W: Demounting HepKey, 15 mm, blue.
  • HX78/22W: Demounting HepKey, 22 mm, pink.
  • HX78/28W: Demounting HepKey, 28 mm, orange.
  • HX79/10W: Demounting HepKey Plus, 10 mm, green.
  • HX79/15W: Demounting HepKey Plus, 15 mm, blue.
  • HX79/22W: Demounting HepKey Plus, 22 mm, pink.
  • HX79/28W: Demounting HepKey Plus, 28 mm, orange.
  • HX81 GR: Joint test kit.
  • HX85/15W: Pipe clip screw type, 15 mm, white (pack of 50).
  • HX85/22W: Pipe clip screw type, 22 mm, white (pack of 50).
  • HX85/28W: Pipe clip screw type, 28 mm, white (pack of 50).
  • HX86/15W: Pipe clip spacer, 15 mm, white (pack of 20).
  • HX86/22W: Pipe clip spacer, 22 mm, white (pack of 20).
  • HX95A GR: Manifold bracket (pack of 2). Size (l x h x w): 300 x 120 x 80 mm. Polybutylene. Grey.
  • HX97 GY: 3/4" BSP female end cap. For use with manifolds. Size (l x h x w): 44 x 44 x 19 mm. Brass. Grey.
  • HX98 GY: 3/4" BSP male end cap. For use with manifolds. Size (l x h x w): 38 x 38 x 19 mm. Brass. Grey.

Literature

Push-Fit Hep2O Installer Guide

Push-Fit Hep2O Installer Guide

© 2021 NBS Enterprises Ltd. All rights reserved.
