Helping Hand System
Application

Often used where the living wall is acting as part of or as the main rainscreen cladding system, working alone or alongside other cladding systems and materials. This system is suitable for most applications and requires a basic substructure to fix back to.

Description

Vertical planting system that is often used where the living wall is acting as all or part of a rainscreen cladding system, working alone or alongside other cladding systems and materials. This system is suitable for most applications and requires a basic substructure to fix back to.

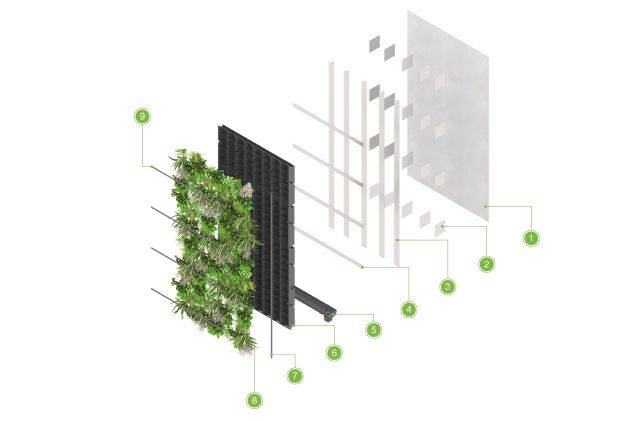

Order of build-up:

  • Indicative brick or concrete surface.
  • Helping hand ‘L’ bracket.
  • Vertical ‘T’ rail.
  • 48 x 12 mm ANS fixing rail.
  • Osma squareline gutter or client specified.
  • ANS living wall module 500 x 250 x 100 mm.
  • 16 mm vertical irrigation pipe.
  • Planting.
  • 16 mm inline emitter pressure regulated irrigation pipe.

Application:

Often used where the living wall is acting as part of or as the main rainscreen cladding system, working alone or alongside other cladding systems and materials. This system is suitable for most applications and requires a basic substructure to fix back to.

General information

Color

Black

Features

No visual exposure of module when embedded into the system, improved air quality, increased biodiversity, branding opportunity, positive effect on staff morale, increased sound insulation, outdoor structural protection, temperature regulation

UV Resistant

Finish

Planted surface

Smooth

Material

PVC

PVC-U

Shape

Linear

Size

107 x 51 mm

WarrantyDescription

10 year manufacturer guarantee

Uniclass 2015

Ss_45_40_95_54 Modular unit vertical planting systemsPrimary

CAWS

Q31/292 Prefabricated plant containers

Specification data - Modular unit vertical planting systems

Product Reference

ANS Living Wall Helping Hand System

Standard product features

Colour:

Black.

Features:

No visual exposure of module when embedded into the system, improved air quality, increased biodiversity, branding opportunity, positive effect on staff morale, increased sound insulation, outdoor structural protection, temperature regulation, UV resistant.

Finish:

Planted surface, smooth.

Material:

Unplasticized polyvinyl chloride (PVC-U).

Shape:

Rectangular.

Size:

107 x 51 mm modules.

Warranty description:

10-year guarantee on the living wall module, 12 months guarantee for everything else.

Recycled content:

Living wall module is 100% recycled (made from recycled plastic).

Recyclability:

Living wall module is recyclable, soil and plants can of course be used again if appropriate.

Country of origin:

UK.

Environmental information

Recyclability

Living wall module is recyclable, soil and plants can of course be used again if appropriate

Recycled content

Living wall module is 100% recycled (made from recycled plastic)
