Description

Manufactured from high quality materials for long lasting use.

Features:

  • Hot Dip Galvanized finish as standard to BS EN 1461 and can also be powder coated to BS EN 13438 in nine standard colours at extra cost and any other RAL colour.
  • Low Life time cost.
  • Padlockable sliding latch.
  • Adjustable bottom hinge.
  • Box section hang and slam stiles.
  • Six bar gate with extra strong tubular rails.

General information
Size

As drawing ___

Features

Hot Dip Galvanized finish as standard to BS EN 1461 and can also be powder coated to BS EN 13438 in nine standard colours at extra cost and any other RAL colour

Low Life time cost

Padlockable sliding latch

Adjustable bottom hinge

Box section hang and slam stiles

Six bar gate with extra strong tubular rails

Uniclass 2015
Carbon steel field gate leaves (Pr_30_59_33_12)Primary
Specification data - Carbon steel field gate leaves
Product Reference

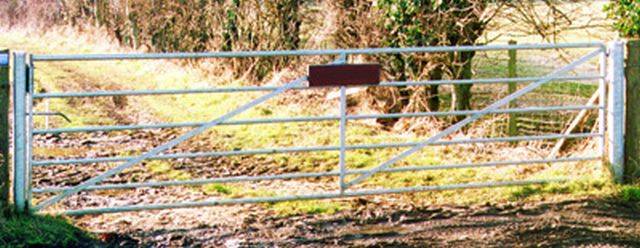

Heavy Metal Field Gates

Size

As drawing ___

Type

440800

Heavy gates, 1200 mm long.

441100

Heavy gates, 2100 mm long.

441200

Heavy gates, 2400 mm long.

441300

Heavy gates, 2700 mm long.

440200

Heavy gates, 3000 mm long.

440300

Heavy gates, 3300 mm long.

440400

Heavy gates, 3600 mm long.

440500

Heavy gates, 4200 mm long.

440600

Heavy gates, 4600 mm long.

Post

453200

Diameter 89 x 1875 mm long hanging post for heavy field gates(for gates up to 3.3 m).

453100

Diameter 114 x 1875 mm long hanging post for heavy field gates(for gates 3.6 m and over).

453600

Diameter 89 x 1900 mm long slam post for heavy field gates.

Accessories

None

453880

Drop bolt.

453700

Loop over catch for pairs of gates.

Mesh cladding

Standard product features

Height:

1150 mm.

Posts:

  • Hanging posts: 2000 mm long, 114mm diameter CHS
  • Slamming post: 1800 mm long, 87mm diameter CHS.

Hang and Slam stile:

50 x 25 mm RHS.

Top and Bottom Rail:

41.5 mm diameter CHS.

Middle Rails:

32 mm Diameter CHS.
