Heavy Duty Rising Arm Barrier

Verified by manufacturer 6 months ago

Newgate (Newark) Ltd Third party certifications:
  • CHAS

    CHAS

    Certificate type

  • QA Certificate

    QA Certificate

    Certificate type

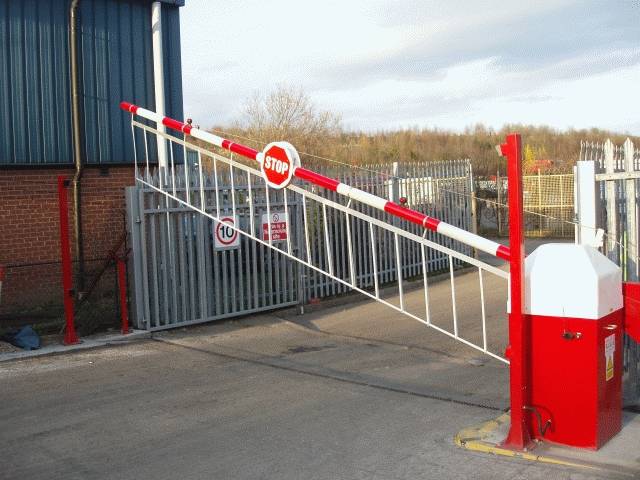

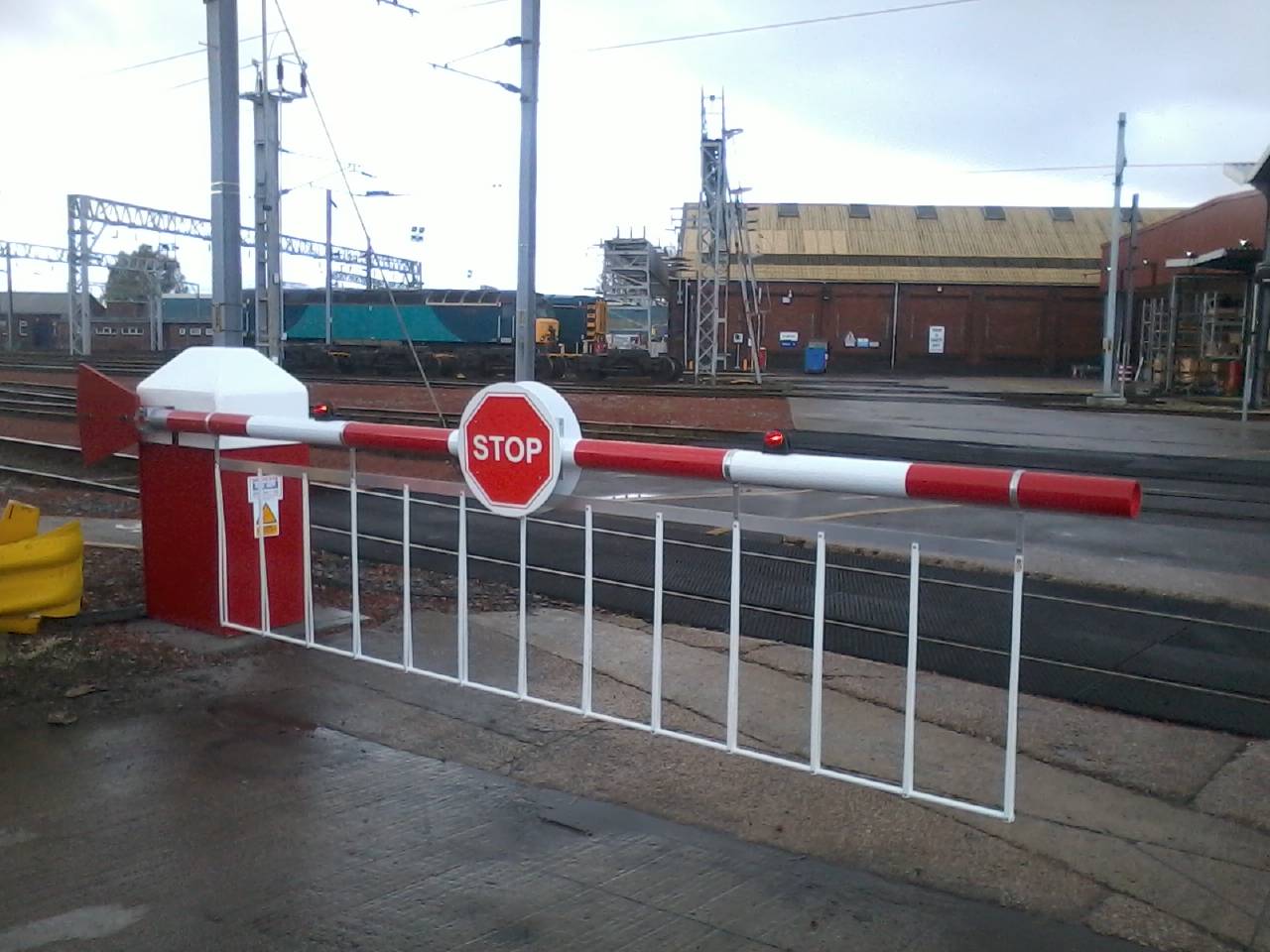

Heavy duty rising arm barrier.

Jump to:
+44 (0)1636 700172 Website

Application

Suitable for use in lorry parks, warehouses, freight depots, docks, road and rail bridges to withstand the extremes of traffic flow, site and weather conditions.

Description

Features and benefits:

  • Tough and durable unit operated by a powerful motor, gearbox drive unit and single phase power supply, which is inverter-driven and housed in a steel and fibreglass enclosure.
  • Can be operated manually and the sturdy aluminium barrier arm can be fitted with a long lasting and lightweight PVC half or full height curtain.
  • The heavy duty barrier can be controlled from a manned security point or automatically by the vehicle occupant, using a wide range of access control systems including proximity card, radio, token, keypad and intercom combined with induction loop or photocells to safely open and close the barrier arm smoothly and efficiently upon activation.
  • Conforms to BS 6571-4.
  • UKCA & CE.


Operating supply:

230 V, single phase, 50 Hz, 6 A.

Operating speed:

7 s.

General information

Color

Red

Guidance for specification option:

Cabinet + arm (corporate colours available upon request).

White

Guidance for specification option:

Top cover

Material

Aluminium

Guidance for specification option:

Arm

Steel

Fiber-glass

Width

6500 mm

Guidance for specification option:

With full curtain.

8000 mm

Guidance for specification option:

With half curtain.

9000 mm

Guidance for specification option:

Without curtain.

Manufacturer guidance

Span.

Uniclass

Pr_30_59_59_72 Rising arm vehicular barriersPrimary

CAWS

Q41/190 Vehicle access point barriers

Specification data - Rising arm vehicular barriers

Method of operation

Motor and gearbox.

Span

9000 mm.

Guidance for specification option:

(Without Curtain).

8000 mm.

Guidance for specification option:

(With Half Curtain).

6500 mm.

Guidance for specification option:

(With Full Curtain).

Arms

-

Material

Steel.

Guidance for specification option:

Frame.

Fibreglass.

Guidance for specification option:

Top cover.

Aluminium.

Guidance for specification option:

Arm.

Finish as delivered

-

Colour

Manufacturer's standard

Accessories

None.

Access reader post.

Boom lights.

'No entry' sign.

'No exit' sign.

PVC full curtain.

PVC half curtain.

'Stop' sign.

Tip support post.

Tip support post, lockable.

Tip support post, electro-magnetic.

Control

None.

Card.

Induction loop.

Intercom.

Keypad.

Show more

Power

0.37 kW.
