Heavy Duty Planar
Compare variants

Heavy Duty Planar

Verified by manufacturer 3 months ago

Heavy Duty Planar K1

Stelrad Radiators Variant:

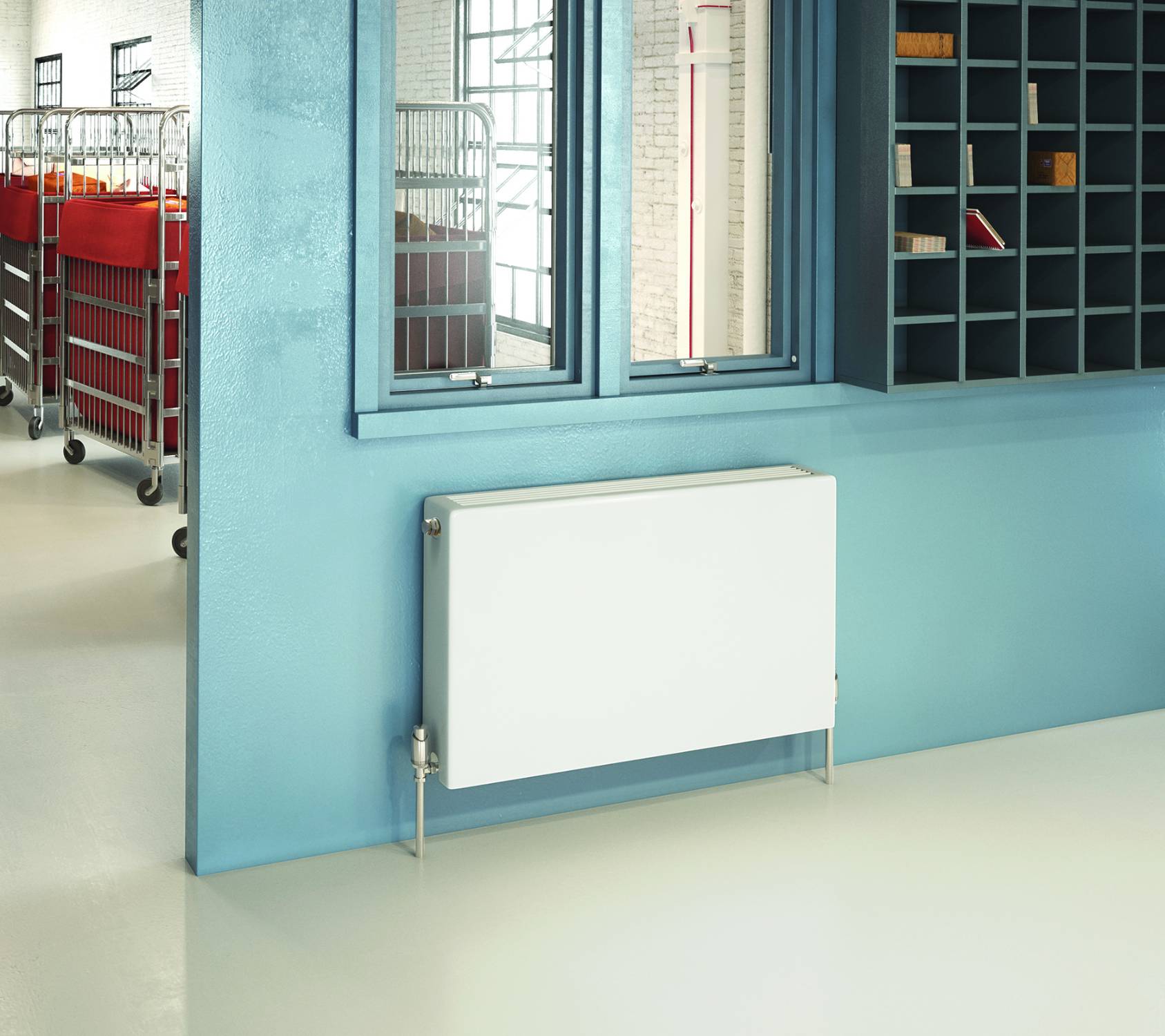

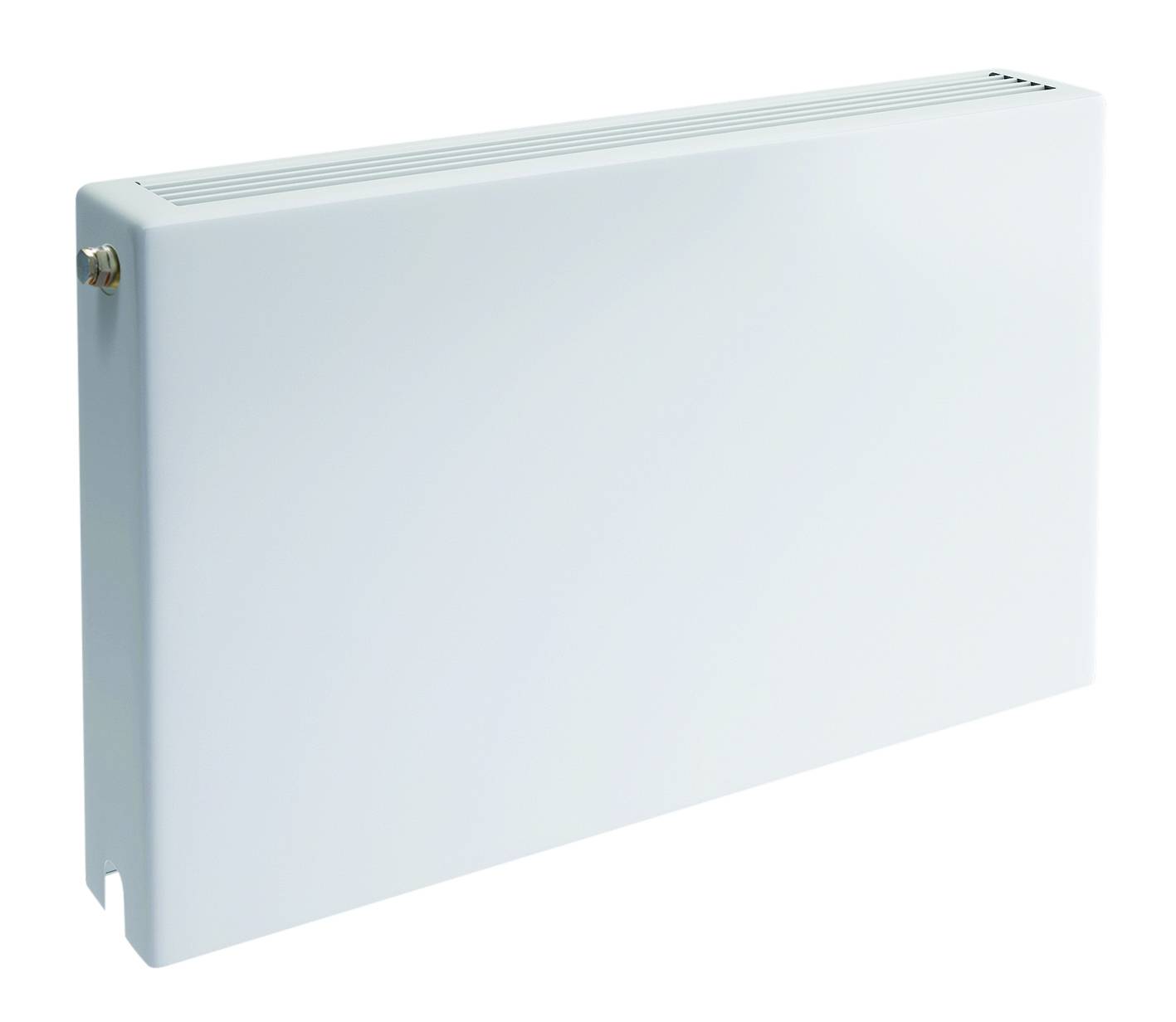

Heavy duty, robust radiator, designed to withstand heavy traffic in specialized spaces.

Jump to:
0800 876 6813 www.stelrad.com

Application

Suitable use for in busy commercial space and other specialized areas.

Description

Heavy duty, robust radiator, designed to withstand heavy traffic in specialized spaces.


Features and benefits:

  • Includes extension piece and air vent.
  • Conforms to BS EN 442.
  • Available in a range of 36 sizes.
  • White (RAL 9016) in colour.
  • It is supplied with a one section, 2 mm thick integrated steel fascia, with side panels and top grille.
  • Sections: Dependent on size and style, consult manufacturer's literature for information.
  • Technical characteristics: Dependent on size and style, consult manufacturer's literature for information.
  • Style: Certain styles are only available with certain sizes, consult manufacturer for information.
  • Heavy duty, robust radiator with slim, flat fronted aesthetics and high performance.

General information

Color

White

Finish

Painted

Material

Steel

Shape

Rectangle

Length

400 mm

600 mm

800 mm

1000 mm

1200 mm

Show more

Height

450 mm

600 mm

WarrantyDescription

Five year

Uniclass

Pr_70_60_36_73 RadiatorsPrimary

CAWS

T90/465 Radiators

T90/465 Radiators

Specification data - Radiators

Standards

To BS EN 442.

Radiator type

Single panel.

Output

268–1740 W (915–5937 Btu/h).

Dependent on size and style, consult manufacturer's literature for information.

Finish

Painted.

Connections

½” inlet.

As standard.

Accessories

Not required.

Floor mounting brackets.

Size (h x l)

450 x 400 mm.

450 x 600 mm.

450 x 800 mm.

450 x 1000 mm.

450 x 1200 mm.

Show more

WorkingPressure

10 bar.

Operating pressure (maximum)

13.5 bar.

Depth

64 mm.

Projection

101 mm.

Literature

Heavy Duty Planar Product Range

Heavy Duty Planar Product Range

Warranty Statement

Warranty Statement

Stelrad Specification Radiator Book 2022

Stelrad Specification Radiator Book 2022
