HeartFelt® Islands - Suspended Acoustic Panel

Name: HeartFelt® Islands - Suspended Acoustic Panel
Brand: Hunter Douglas Architectural
SKU: qha7wpr1CG9NuQq75x65PE

Verified by manufacturer 2 days ago

Small Island 2700 x 700 mm

Product certifications:

Acoustic felt ceiling island.

Jump to:

Application

Suitable for use internally in acoustic control applications.

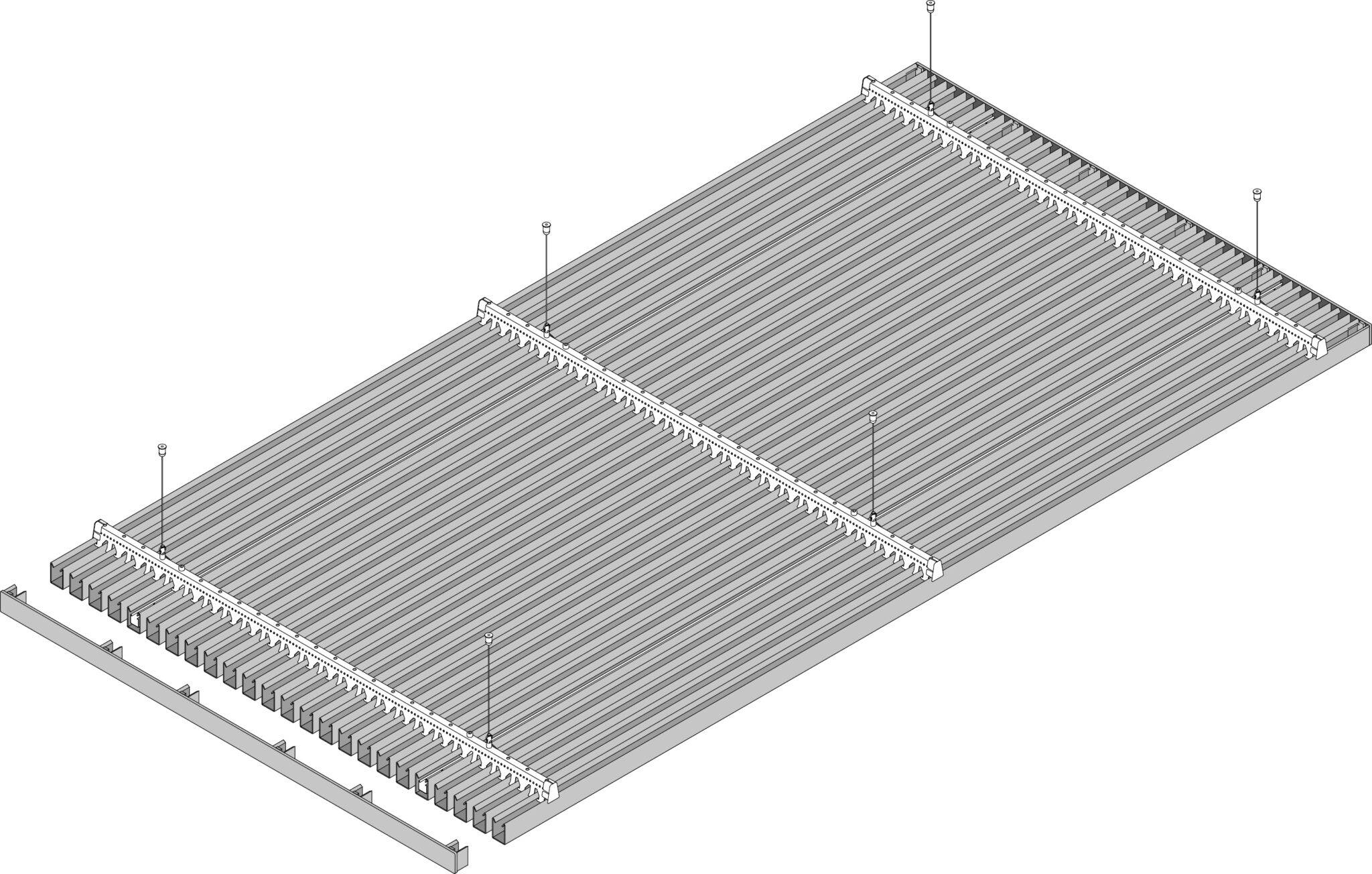

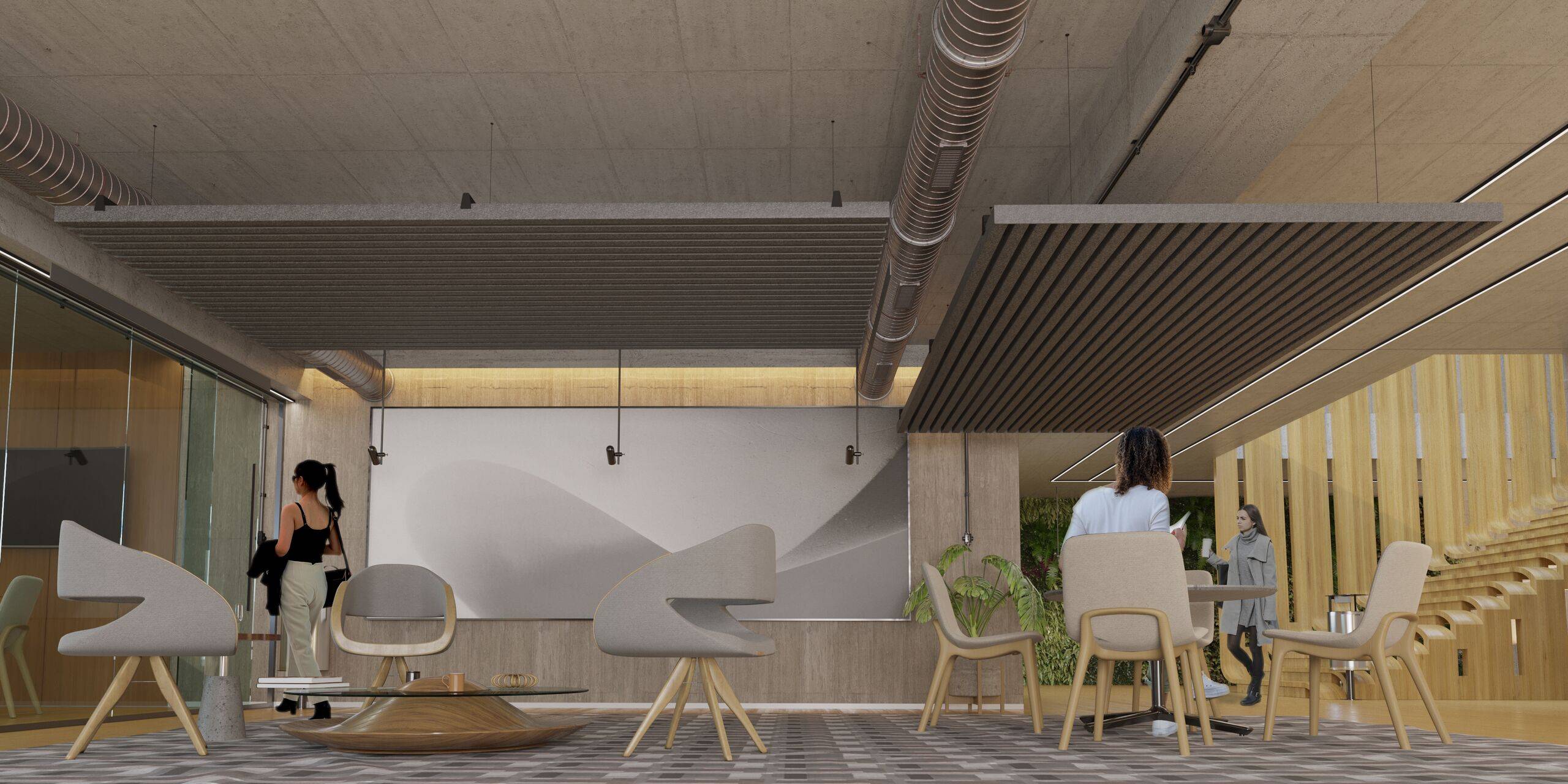

Modular, free-hanging islands for acoustic comfort control and visual design. Felt panels available in three standard sizes.

Features and benefits:

Color	Beige Black Brown Grey Cream White Show more
Finish	Natural
Material	Felt Aluminium Polyester fibre (PET)
Shape	Rectangle
Length	800 mm Guidance for specification option: Minimum island length. 4500 mm Guidance for specification option: Maximum island length. Bespoke Guidance for specification option: Length of panels restricted to range. >4500 mm available on request.
Width	10 mm 40 mm
Height	55 mm 80 mm 105 mm

Uniclass	Ss_30_25_22_70 Raft or island suspended ceiling systemsPrimary
CAWS	K40/10 Unit/ modular suspended ceilings K40/115 Unit/ modular suspended ceiling system

SKU Code	40HL55, 40HL80, 40HL105

Classification data
System manufacturer	Hunter Douglas Architectural.
Ceiling support	M60 module.
Support fasteners	Stabilization profile with spacer stabilizer.
Ceiling type	Box shaped panels, 40 x 55 mm. Guidance for specification option: Material: Non-woven, thermoformed polyester (PES) fibres.
Thickness	2 mm.
Finish as delivered	Self-finish.
Colour	White 7593. Light grey 7596. Middle grey 7597. Dark grey 7598. Black 7594. Creme 7575. Light brown 7576. Medium brown 7577. Dark brown 7578. Umber 7579.
Edge treatment	Felt island end cap and carrier end cap.
Edge profile	Square.
Dimensions	2700 x 700 mm. Manufacturer guidance Island length x width.
Third-party certification	Cradle to Cradle Certified Bronze and Indoor Air Comfort Gold.
Sound absorption	ɑw, 0.65.
Reaction to fire	To EN 13501-1, Class B-s1, d0.
VOC emissions	Class A+.

Material	Felt Aluminium Polyester fibre (PET)
A1-A3 (production stage)	Embodied carbon as defined in BS EN 15804
Normalised unit
Declared unit	9.38 kg CO₂ eq/unit Self-declared
Recycled content As defined in clause 7.8 of BS EN ISO 14021	86 % Guidance for specification option: Suspension components only. 0% for felt components.
