Healthcare Traditional Boxed Out Unit
Verified by manufacturer 5 months ago
Ready Plumbed Modules
Ready Plumbed Modules

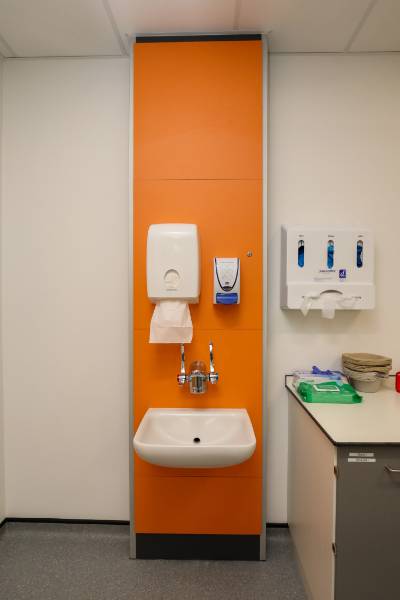

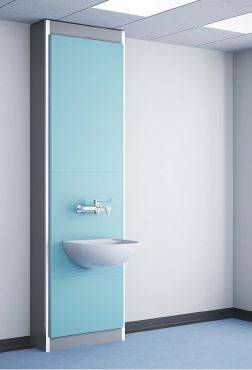

HBN compliant boxed out healthcare IPS unit in a traditional style.
Application
For use in healthcare applications to house sanitaryware and brassware and conceal services behind.

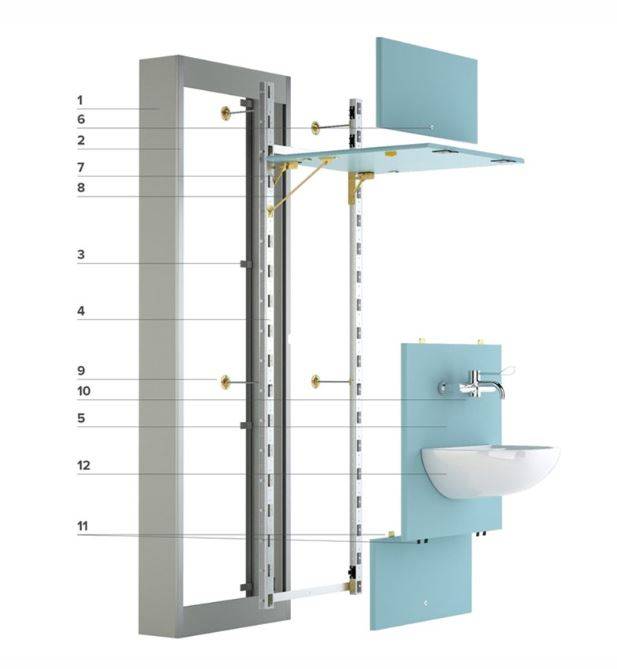

Description
Boxed out healthcare unit that follows a traditional style featuring large access panels and aluminium corner extrusions to provide extra protection. The unit can be quickly and easily fitted to the wall using brackets and secured with tie back rods. Panels are available hinged and lockable and allow wide access points to services behind.
Features and benefits:
- Available fully pre-plumbed and tested.
- Quick and easy to install.
- Compliant with HBN 00-10 Part C.
- Impact resistant and 100% impervious to liquids.
- 90 degree opening top-hinge access panels.
- Panel-dock system maintains constant panel alignment during installation and ongoing use.
- Panel stay locks the panel in place while ion operation.
- Wall fixing brackets secure box unit to wall quickly and easily.
General information
Color | Other Guidance for specification option: 34 laminate colour options available, contact manufacturer for details. |
Finish | Smooth |
Material | Solid grade laminate (SGL) High pressure laminate (HPL) Aluminium Steel |
Shape | Rectangle |
Width | Bespoke Guidance for specification option: Maximum Width: 1050mm |
Height | Bespoke Guidance for specification option: Maximum Height: 3000mm |
Uniclass | |
CAWS | K32/160 Duct linings – preplumbed panels and proprietary frames K32/150 Duct/ wall linings – panels and proprietary frames K32/15 Duct/ wall lining panels |
Specification data - Pre-plumbed installation frames
Form | Boxed out unit. |
Materials | Solid grade laminate (SGL), High pressure laminate (HPL), Aluminium, Galvanised steel. |
Size | 3000 x 1050 x 300 mm.Guidance for specification option: Max H x W x D. |
Brassware | WRAS compliant brassware, chosen to meet the requirements of HBN 00-10 Part C. Guidance for specification option: Units are tested for leakage in a controlled factory environment prior to delivery, ensuring no disruption when installed. |
Ceiling | Suspended. Solid. |
Corners | Flush fitted, smooth and easy to clean aluminium corner extrusions. Guidance for specification option: For protection of vulnerable edges and seamless joining of panels. |
Framing | Factory assembled galvanised steel frame with integral rail for cisterns and sanitaryware. |
Hinges | 90° opening top hinge for easy access to services. |
Panel lock | Anti-tamper lock secures directly through the frame for added security. |
Panels | Solid grade laminate (SGL). Guidance for specification option: Highly impact resistant, easy to clean, has no sharp edges and is 100% impervious to water. High pressure laminate (HPL). Guidance for specification option: Smooth post bonded edges, highly durable, easy to clean and water resistant. |
Ties | Threaded rods adjustable in two planes tie the unit to the wall. |
Type | With sanitaryware plumbed. |
