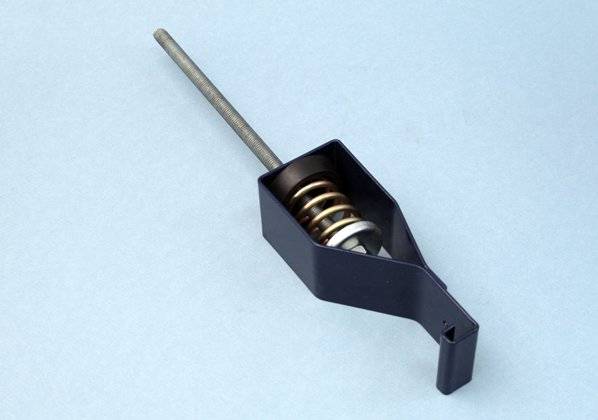

HDQF-X Spring Hanger

HDQF-X Spring Hanger

Mason UK Ltd

HDQF-X Quick Fit Anti-vibration Spring Hanger available in a variety of load capacities. Specially designed for a metal frame grid ceiling.

Jump to:
+44 (0)1252 716610 www.masonuk.co.uk

Description

The HDQF-X is an anti-vibration spring hanger. This acoustic hanger has been designed to aid the contractor with a quick and easy installation of suspended acoustic ceilings which use a metal grid system. The primary channel of the ceiling grid simply clips into the HDQF bracket. The hangers can support weights from 10kg up to 59kg per hanger. The spring elements can provide up to 33mm deflection, providing acoustic isolation down to 4.0Hz. They feature a neoprene cup, required to absorb high frequency noise. This extends through the hanger box which ensures that the hanger rod does not contact the hanger box.

General information

Features

Allows for compact ceiling installations, quick and easy installation, spring sits in a neoprene cup that absorbs high frequency energy

Material

Rubber

Size

50 x 57 x 155 mm

Uniclass 2015

Pr_80_77_94_42 Isolation hangersPrimary

Digital objects

Platform Compatible Version Certified to
IFC
-

1

2.1
Revit
-

1

2.1
Download now from NBS National BIM Library
