Description

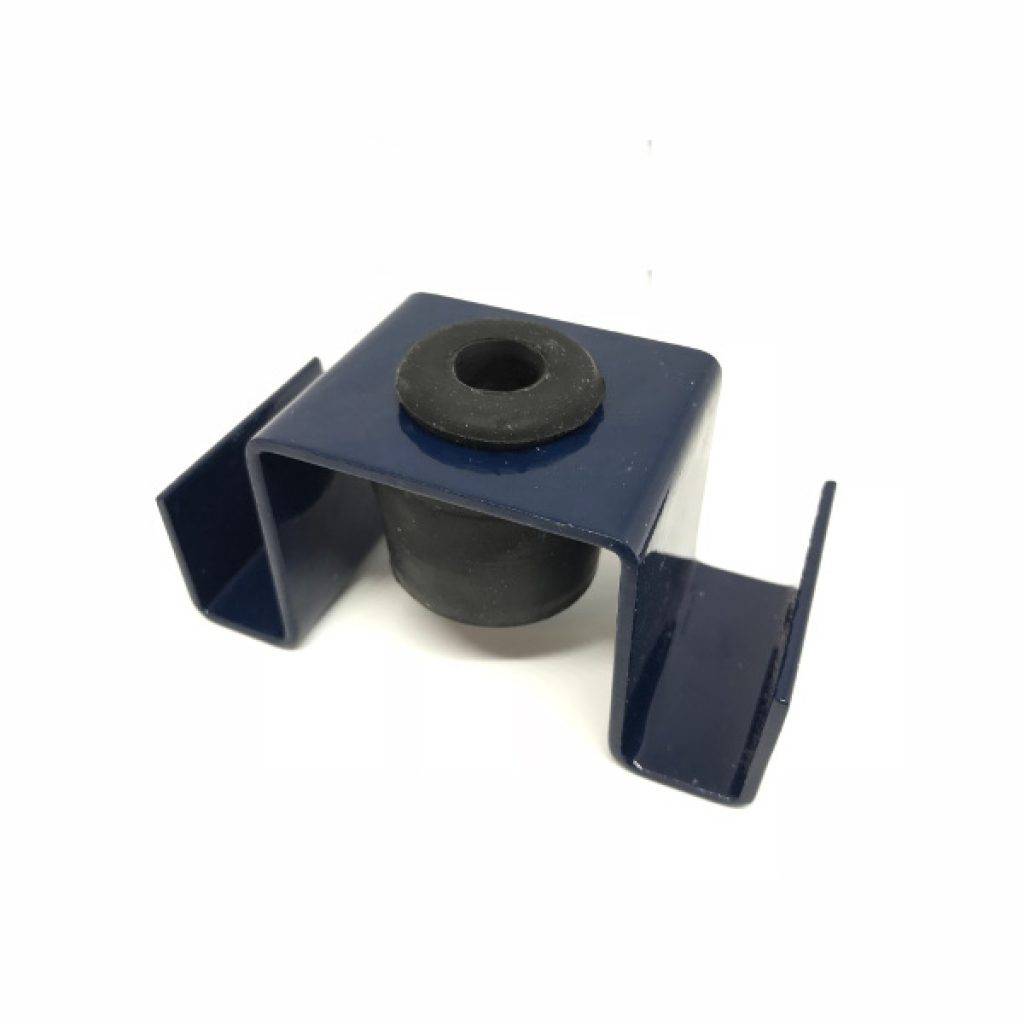

The HDLP hangers use a high quality low dynamic stiffness natural rubber element which offers excellent acoustic isolation properties. This acoustic hanger has been designed as a low profile ceiling hanger and is used where floor to ceiling heights are critical. Also, to aid the contractor with a quick and easy installation of suspended acoustic ceilings which use a metal grid system. The HDLP-A hangers are specifically designed to allow the MF primary channel to slot into the sides of the hanger allowing for simple installation. This also gives great space saving compared to our other varieties of ceiling hangers. The hanger offers up to 6mm of deflection and isolation down to 8Hz. The hanger range is available with different rubber stiffnesses to suit different ceiling weights. The load capacity ranges from 20kg to 57kg. The LDS rubber ensures that noise and vibration cannot travel through this acoustic hanger.

General information
Color

Black

Red

Green

Features

Allows for compact suspended ceiling installations, quick and easy installation, can support ceiling weights of up to 57 kg per hanger, rubber elements can provide up to 5 mm deflection providing frequencies down to 8Hz

Material

Steel, rubber

Size

50 x 97 x 50 mm

Uniclass 2015
Isolation hangers (Pr_80_77_94_42)Primary
Digital objects
PlatformCompatibleVersionCertified to
Revit
- 2 2.1
IFC
- 2 2.1
Download now from NBS National BIM Library
