HD-Box-140

Description

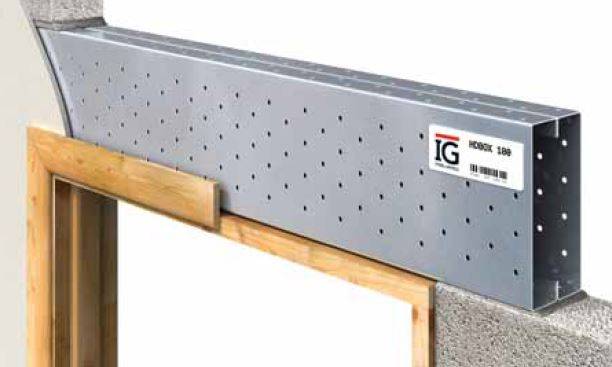

IG HD Box 140 lintels are used to support Heavy Duty loads within 140mm wide internal blockwork walls. The HD Box 140 lintel has perforations along its length acting as a plaster key.

General information

Digital objects

Platform Compatible Version Certified to
Revit

Revit 2017

1

2.0
Download now from NBS National BIM Library
