Application

For use in conjunction with HBUS devices.

Description

HBUS input and output (I/ O) devices which provide flexible, cost effective and secure input and output expansion options, and shared cabling with other HBUS devices.

Extends the existing connectivity of the Gallagher Controller 6000 via the HBUS communications protocol, which is based on the RS485 standard, and allows each device to communicate with the Gallagher C6000 Controller over a distance of up to 500 m (1640 ft), at a speed of 1 mb/s.

Features and benefits:

  • Provides unique identities for all field devices, meaning that compromised devices cannot be added to the system.
  • Automatically available with Controller 6000 software upgrades; no operator intervention is required.
  • Data tampering is prevented by IT grade authentication and encryption levels.
  • Variable end of line resistance is supported.
  • Monitors the state of the balanced inputs, and switches the output relays as instructed by the controller.
  • High speed communication.
  • Allows Gallagher HBUS devices to be easily installed using existing security wiring.
  • Manufactured in accordance with ISO 9001 Quality Systems.

Inputs and outputs:

  • The device monitors 4-state balanced inputs, which are open, closed, short circuit (tamper), and open circuit (tamper). They can be used for monitoring access controlled doors, passive infrared detectors (PIRs), uncontrolled doors, and equipment alarms.
  • Output relays can be triggered by timers or with logic configuration, and are used to unlock doors, activate sirens, or switch air conditioning or lighting on or off.

Applications:

For use in conjunction with HBUS devices.

Compliance:

  • CE.
  • C-Tick.
  • Federal Communications Commission (FCC).

General information
Specification data - Field controllers
Product Reference

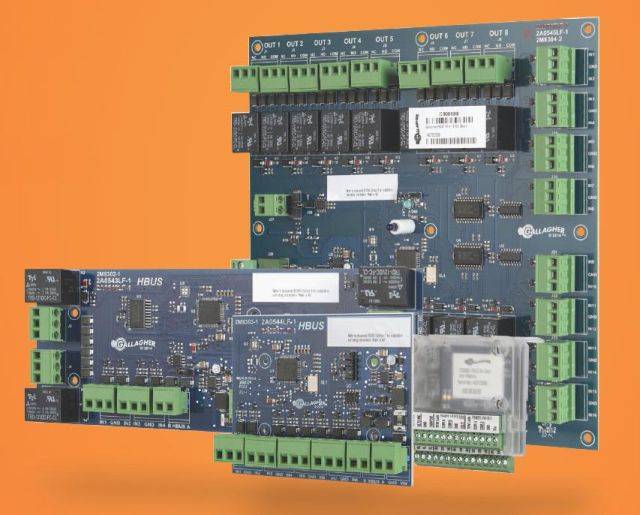

Gallagher 8 In 2 Out Door Module, C300660

Provides connection for eight inputs, two outputs, and four HBUS readers/ terminals. Also provides connections to Gallagher's T-Series Reader range.

Gallagher 8 In 4 Out Board, C300684

Provides connection for eight inputs and four outputs.

Gallagher 8 In Board, C300680

Provides connection for eight inputs.

Gallagher 16 In 16 Out Board, C300688

Provides connection for 16 inputs and 16 outputs.

Cabinet

Not required

Gallagher dual cabinet and power supply, charcoal, C200109

Gallagher dual cabinet and power supply, cool grey, C200105

Gallagher dual cabinet UL, charcoal, C200108

Gallagher dual cabinet UL, cool grey, C200107

Gallagher dual cabinet, charcoal, C200103

Gallagher dual cabinet, cool grey, C200104

Gallagher cabinet with tamper board, charcoal

For use with 8 In and 8 In 4 Out boards.

Gallagher cabinet with tamper board, cool grey

For use with 8 In and 8 In 4 Out boards.

Gallagher cabinet, charcoal

Gallagher cabinet, cool grey

Accessories/ Other requirements

Not required

Controller 6000 I/ O mounting plate, C200003

Gallagher cabinet master key, 4G2262

Gallagher controller sub-plate, C200002

Gallagher mounting plate, C200001

Gallagher power supply, C200440

Gallagher tamper board (board only), C200610

Standard product features

Technical characteristics:

– General:

  • Operating voltage: 13.6 V (DC) ± 15%.
  • Communication between Gallagher Controller and HBUS I/ O: RS485, at 1 mb/s.
  • Wiring format: Two-wire (gauge selected to suit cable length).
  • Cable specifications: Gallagher HBUS to Gallagher controller: 500 m (1640 ft); Gallagher HBUS 8 In 2 Out Door Module to HBUS readers or terminals: 400 m (1312 ft).

– Gallagher 8 In 2 Out Door Module, C300660:

  • 4-state balanced inputs: 8.
  • 2-outputs: 24 V (DC/ AC), 3 A resistive, 1 A inductive.
  • Power supply current: 1.8 W (relays on).
  • Proportion of cabinet footprint: 1/4.

– Gallagher 8 In 4 Out Board, C300684:

  • 4-state balanced inputs: 8.
  • 2-outputs: 24 V (DC/ AC), 3 A resistive, 1 A inductive.
  • Power supply current: 2.3 W (relays on).
  • Proportion of cabinet footprint: 1/2.

– Gallagher 8 In Board, C300680:

  • 4-state balanced inputs: 8.
  • Power supply current: 0.6 W.
  • Proportion of cabinet footprint: 1/4.

– Gallagher 16 In 16 Out Board, C300688:

  • 4-state balanced inputs: 16.
  • 2-outputs: 24 V (DC/ AC), 3 A resistive, 1 A inductive.
  • Power supply current: 7 W (relays on).
  • Proportion of cabinet footprint: 1.

Product Options

Product reference:

– Gallagher 8 In 2 Out Door Module, C300660:

  • Connects reader or terminal devices directly up to 400 m (1312 ft) away, allowing HBUS communications to be branched or ‘T’ Wired from HBUS cabling connected to the C6000 Controller. This allows for greater flexibility when deploying HBUS devices in both new and retrofit installations.
  • Provides isolation between its upstream and downstream HBUS runs, protecting other HBUS devices connected to the same controller HBUS port.
