Description

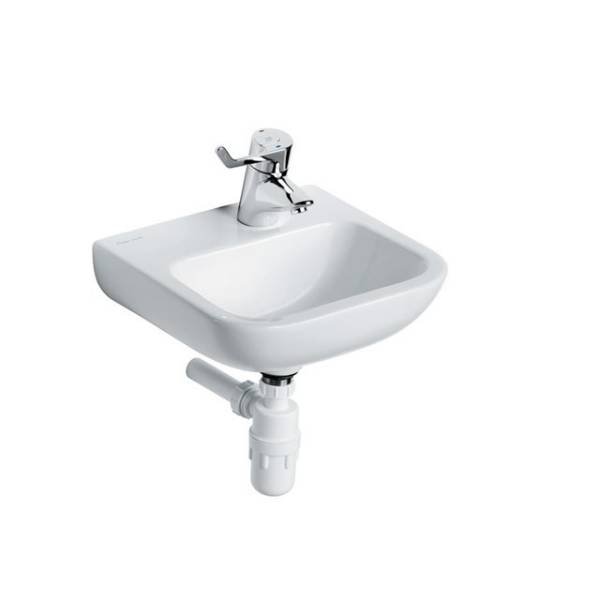

Portman 21 40cm washbasin, single right hand taphole, no overflow, no chainstay hole

  • General pattern washbasins assembly
  • Small
  • Hand rinsing under running water
  • Optional wall or panel fixing set

General information
Finish

Chrome - (AA)

Neutral / No Finish - (67)

Ultra Steel - (GN)

White - (01)

Uniclass 2015 Wall-hung hand rinse basins (Pr_40_20_96_95)
Specification data
Product Reference

S2314 - HBN 00-10 HTM64 (LB G S) Portman 21 40cm Washbasin

Portman 21 40cm Washbasin RH Taphole, No Overflow or Chainstay Hole

S2159 - Portman 21 40cm Washbasin

Portman 21 Washbasin 40cm LH Taphole, No Overflow or Chainstay Hole

S2156 - Portman 21 40cm Washbasin

Portman 21 Washbasin 40cm No Taphole, Chainstay or Overflow

Finish

Chrome - (AA)

Neutral / No Finish - (67)

Ultra Steel - (GN)

White - (01)

Standard product features

WashBasin:

  • Material: Vitreous China
  • Weight: 9.70 kg
  • Standards: Vitreous china to BS 3402. Washbasin wall mounted using E0157 wall fixing set or panel mounted using E0062 fixing set.

Washbasin Wall Fixings:

  • Material: Metal
  • Weight: 0.16 kg

Brassware:

  • Material: Chrome Plated Brass
  • Weight: 2.85 kg
  • Flowrate: 4.70 lpm @ 3bar

Waste:

  • Material: Chrome Plated
  • Weight: 0.23 kg

Trap:

  • Material: Plastic
  • Weight: 2.00 kg

Product Options

Washbasin wall mounted using E0157 wall fixing set or panel mounted using E0062 fixing set. Alternative S9138 bracket can be used. Recommended fixing heights; Corner WC arrangement 720-40 Wheelchair access 680-700mm.
