Hazard Flag Paving

Hazard Flag Paving

Brett Landscaping

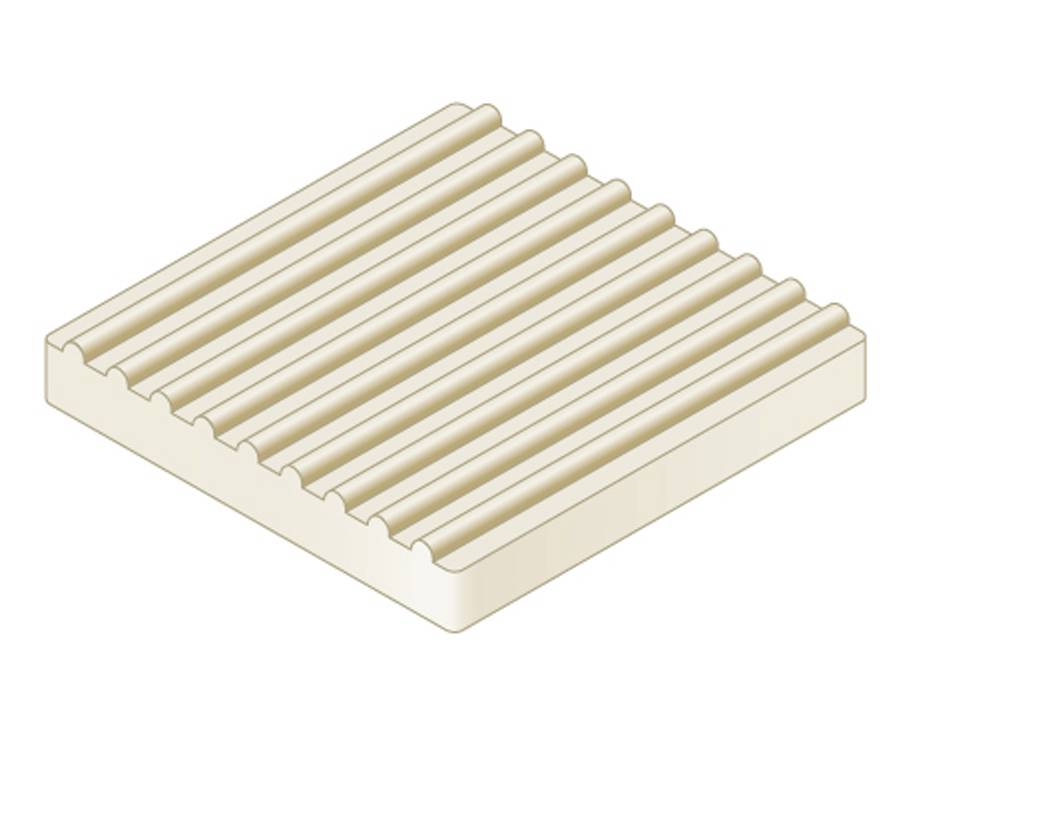

Brett Hazard Warning Paving is to warn visually impaired people of the presence of specific hazards and conveys the message 'hazard, proceed with caution'. (Note: Also known as corduroy paving).

Jump to:
+44 (0)345 6080577 www.brettpaving.co.uk
Description

The range of Brett tactile flag paving can be combined with the specialist kerb systems to offer integrated roadside approach and safety solutions which are particularly relevant at road crossings and passenger vehicle boarding points.

All of the Tactile paving flags have a square edge with no chamfer and provide excellent durability in service.

The Tactile paving flags are available with a choice of seven profiles:

  • Blister: Mainly for use at controlled and uncontrolled pedestrian crossing points.
  • Hazard: Provides a warning against potential hazards such as flights of stairs or obstructions.
  • Directional: Identifies a safe pedestrian route, avoiding obstacles and hazards.
  • Cycleway: Indicates the beginning of a shared cycle/pedestrian route and denotes the route cyclists should follow.
  • Lozenge: Indicates that Light Rapid Transport platform edge is approximately one step away.

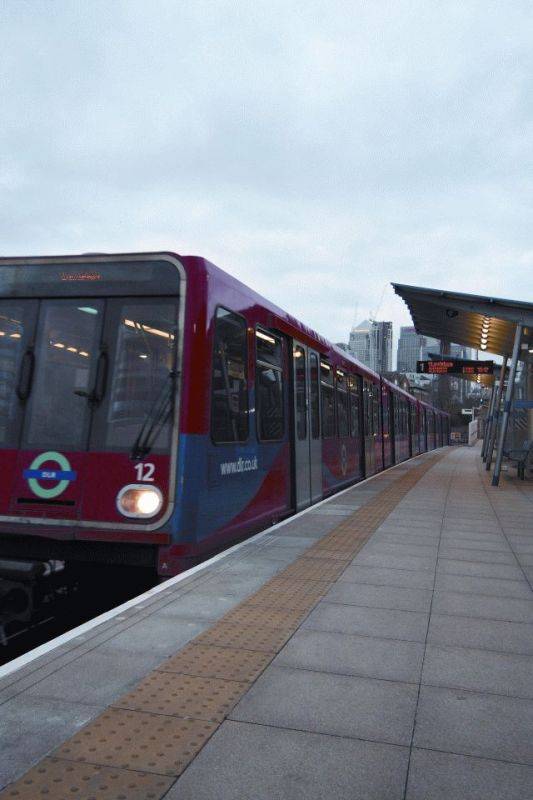

  • Platform Edge: Indicates platform proximity and is ideal for use on underground or surface rail systems.
  • Barface: Ideal for use on areas such as steep inclines and access ramps where it’s design helps provide improved grip making it ideal for use on areas such as steep inclines and access ramps.

The Tactile flag paving range is manufactured and tested to comply with BS EN 1339: 2003. CE Marked.

Meets the requirements of The Department for Transport publication 'Guidance on the use of Tactile Paving Surfaces’.

Standards:

Brett Landscaping operate a number of independently audited management systems:

  • BS EN ISO 9001: 2008 Quality Management System.
  • BS EN ISO 14001: 2004 Environmental Management System.
  • OHSAS 18001: 2007 Health and Safety Management System.
  • BES 6001 Responsible Sourcing of Construction Products.

General information

Size

400 x 400 x 50 mm

Blister, Hazard, Directional, Platform, Cycleway, Lozenge.

400 x 400 x 65 mm

Blister, Hazard.

450 x 450 x 50 mm

Blister.

450 x 450 x 70 mm

Blister.

600 x 600 x 50 mm

Barface.

Features

Provides an unmistakable warning against potential hazards

Finish

Tactile

Material

Concrete

Shape

Square

WarrantyDescription

Statutory Rights - Technical Support

Uniclass 2015

Pr_25_93_60_23 Concrete tactile flagsPrimary

CAWS

Q25/320 Tactile flags and slabs

Specification data - Concrete tactile flags

Product Reference

Tactile Paving Flags

Type

Hand Lay

Designs

Blister

Hazard

Directional

Cycleway

Lozenge

Platform Edge

Barface

Size

400 x 400 x 50 mm

Blister, Hazard, Directional, Platform, Cycleway, Lozenge.

400 x 400 x 65 mm

Blister, Hazard.

450 x 450 x 50 mm

Blister.

450 x 450 x 70 mm

Blister.

600 x 600 x 50 mm

Barface.

Colour

Buff

Blister, Hazard, Directional, Cycleway, Lozenge, Platform Edge.

Red

Blister, Hazard.

Natural

Barface, Blister, Hazard, Directional, Cycleway, Lozenge, Platform Edge.

Charcoal

Barface, Lozenge.

Standard product features

Finish:

High performance tactile paving for pedestrian safety.

Product Options

Sizes:

All sizes and thicknesses are available to order.

Digital objects
Platform Compatible Version Certified to
IFC

IFC2X3

5

1.3
Revit

Revit 2016

6

2.0
Download now from NBS National BIM Library
